Army & Navy CSL, London
12 bore Back action sidelever hammer gun
no. 6028
Year of manufacture: 1875-87
Click on these images for more detail.
Heritage Guns'
Comment
This gun is a fine condition example of the sporting hammerguns
that were the norm in the last quarter of the 19th Century.
With its elegant sidelever, understated engraving and fine measurements
this gun would make an pretty and practical tool for game or
clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

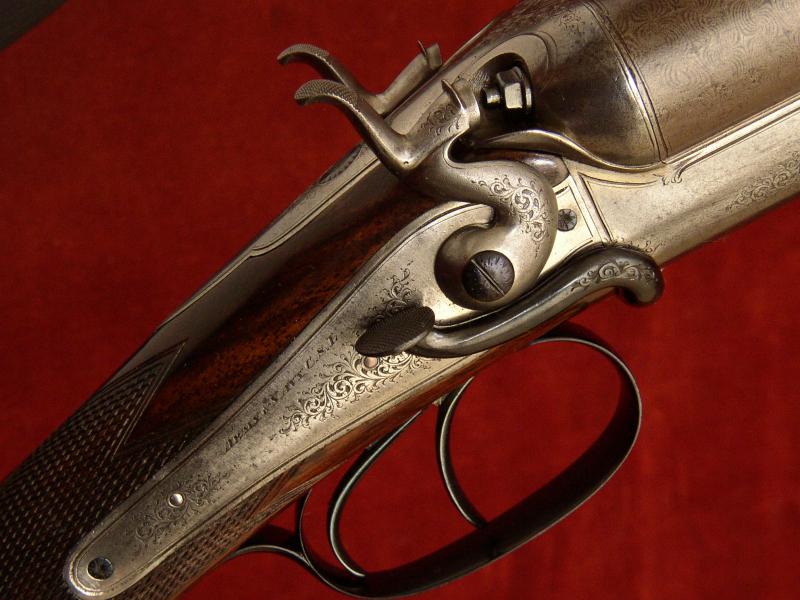

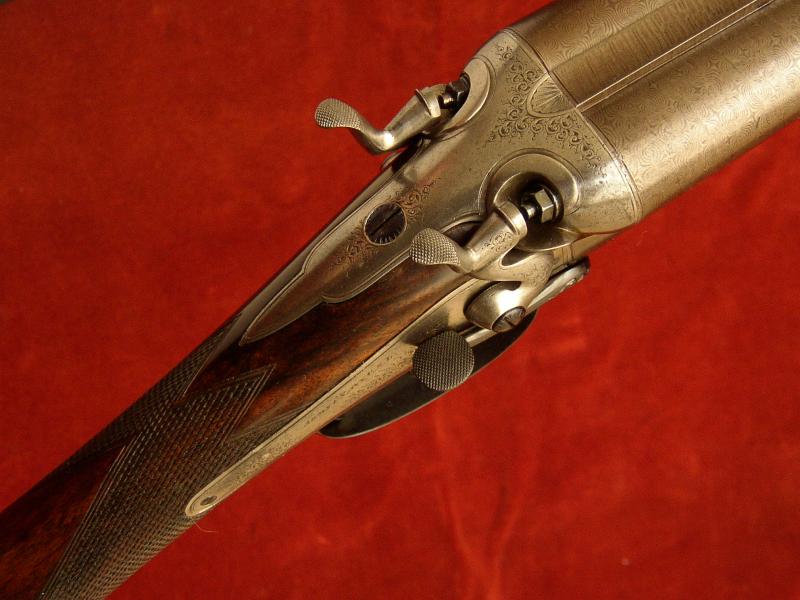

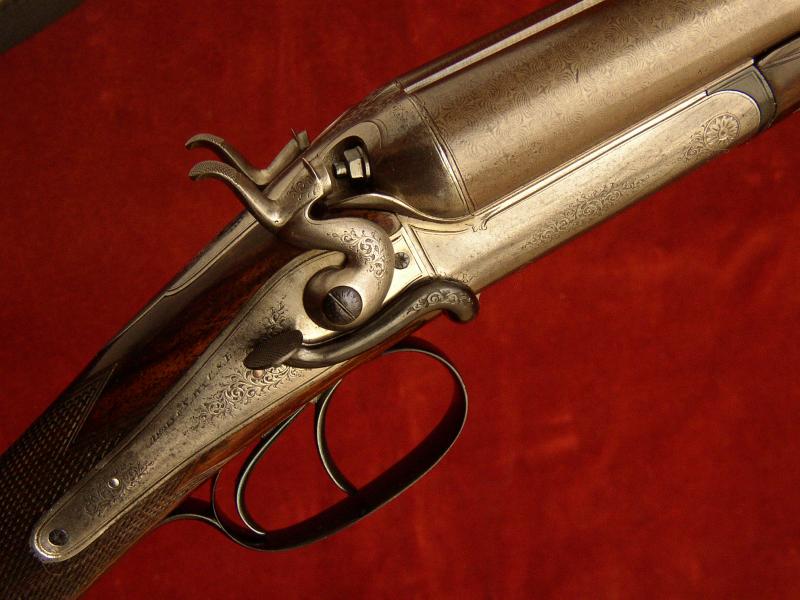

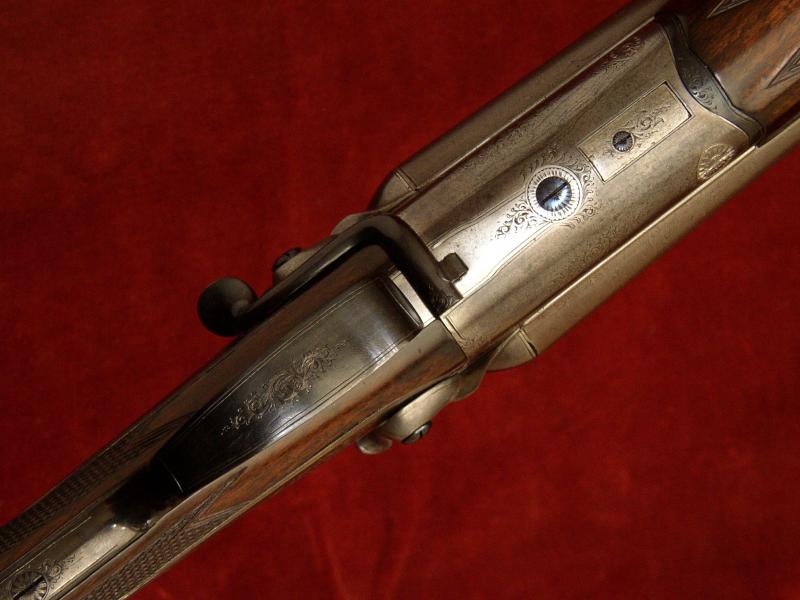

The action is normal design and features:
Double triggers, Back action locks, Rebounding hammers,
Sprung strikers, Percussion fences, Side lever opening, operating a
'Purdey Bolt',
Hackett snap-on forend.
Gun weight 6 lb 13 ½ oz Engraving style Bold Foliate
Scroll.
Trigger pulls measure approximately: Front trigger 4lbs Rear
trigger 4lbs
The Damascus barrels are 30" in length, chambered for 2
¾" (70mm) cartridges and are of brazed 'dovetail' lump construction
with soft soldered ribs. Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2008.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.8mm
(0.740)
|
0.741"
|
0.027" Minimum
|
|
Left Barrel |
18.7mm
(0.736)
|
0.738"
|
0.027" Minimum
|
|

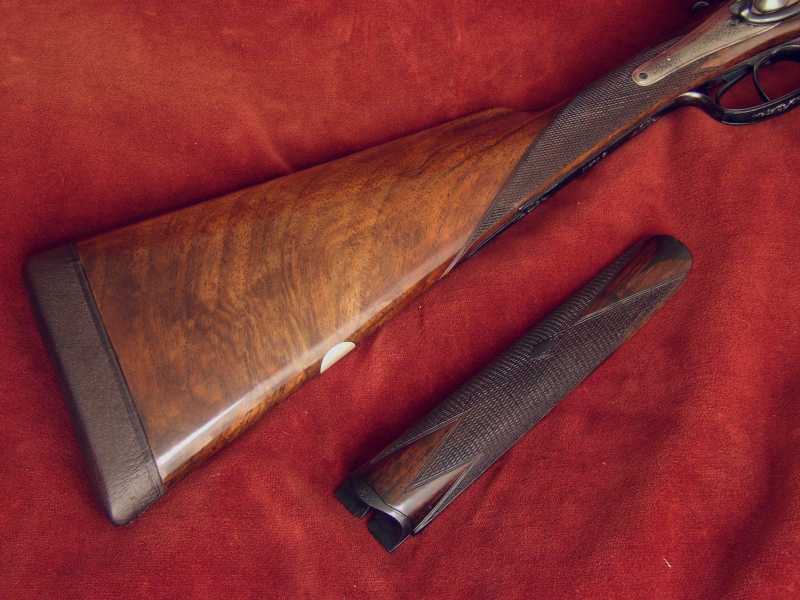

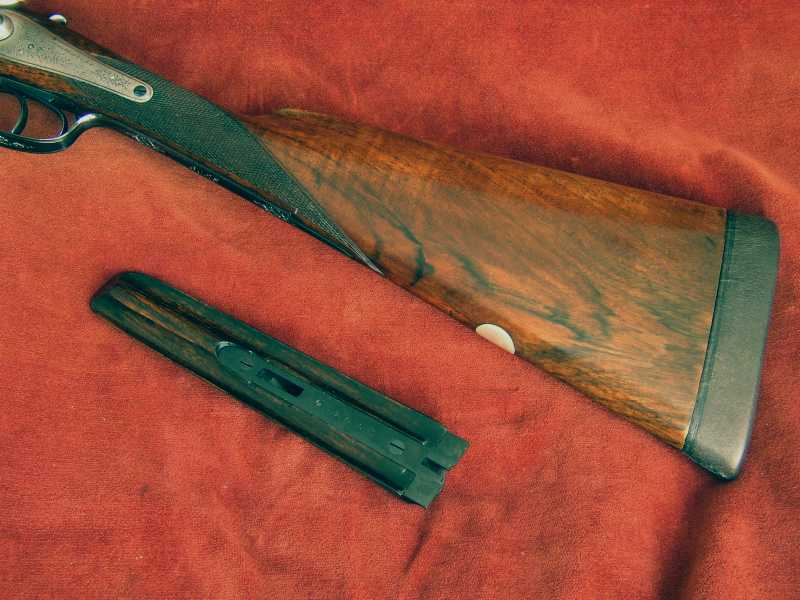

Straight Hand Stock and Snap-on Splinter Forend
are crafted from nicely figured walnut. The stock has suffered a crack
vertically and longitudinally through the head, it has been professionally
repaired and should give no further problems, although we would not
recommend big changes to cast or drop. The stock is cast off for a right-handed
shot, carries a vacant white metal escutcheon and is finished with a
new leather covered 1" recoil pad.
The
21 lines per inch chequering has been
cut to a normal backlock design and is in good condition. The stock
is finished with a traditional linseed oil based preparation as used
on best guns by one of the top English makers. This finish uses no grain
fillers to achieve its deep, smooth lustre, only many hours of alternate
build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 7/8"
|
15"
|
15"
|
15 1/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 3/4"
|
2 3/8"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" approx
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867;
'Purdey Bolt' patent no. 1104 of 1863,
Hackett's forend fastener patent no. 964 of 1878.
