John
Blanch and Son, 29 Gracechurch Street, London
12 bore Back
action, Sidelock Ejector
no. 5703.
Approximate date of manufacture: 1887-1896, probably
around 1890.
Click on these images for more detail.
Heritage
Guns' Comment
This gun represents an example in unusually fine
condition of the early hammerless guns that were becoming more
accepted in the last quarter of the 19th Century and a rare chance
to buy a gun retailed by this less-well known gunmaker. The gun
was beautifully restocked around 2001 with a very fine piece of
exhibition grade walnut and this coupled with the sensitive restoration
makes it a very pretty and highly 'shootable' gun for either game
or clays.

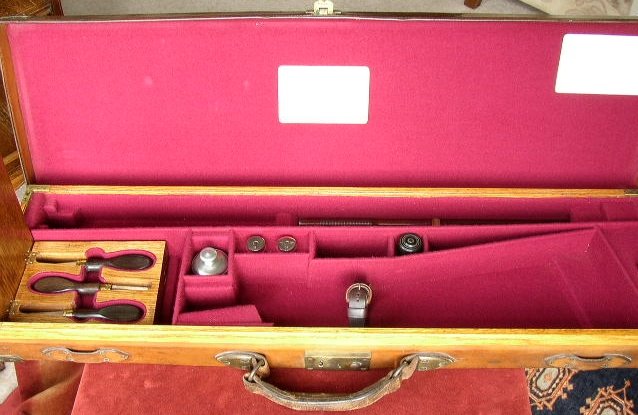

This gun comes complete with a brass cornered,
leather case in very sound external condition with new handle
and straps. Internally, the case has been relined with new 'Burgundy'
all wool baize, carries an original 'maker's label and is fitted
out with ebony and brass tools including 3 turnscrews mounted
in a hand made oak block and a two-part cleaning rod. The case
is further equipped with a spare set of dedicated strikers in
a horn striker pot, pewter oil bottle and set of cleaning tools
in a leather wallet.
The Heritage
Guns' package would not be complete without a unique
leather bound Companion
and a
hand crafted pair of personalised Heritage
Guns Damascus snapcaps.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

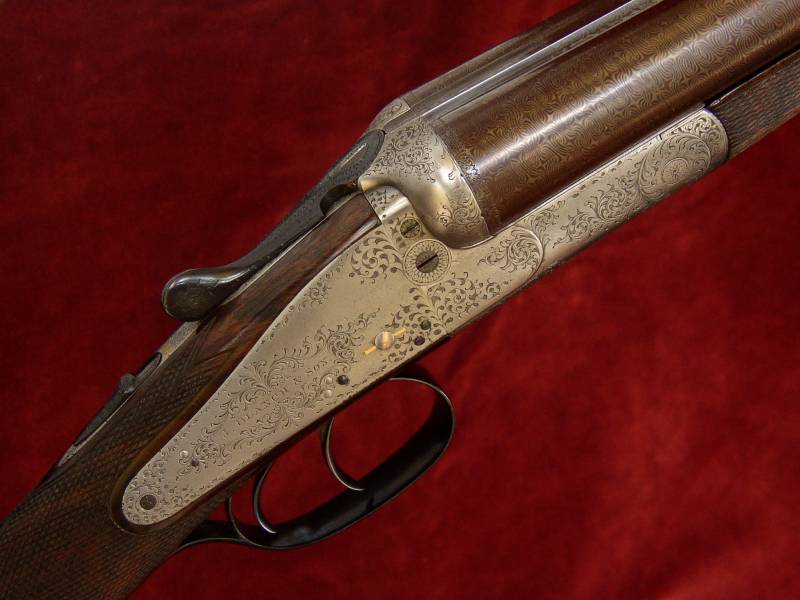

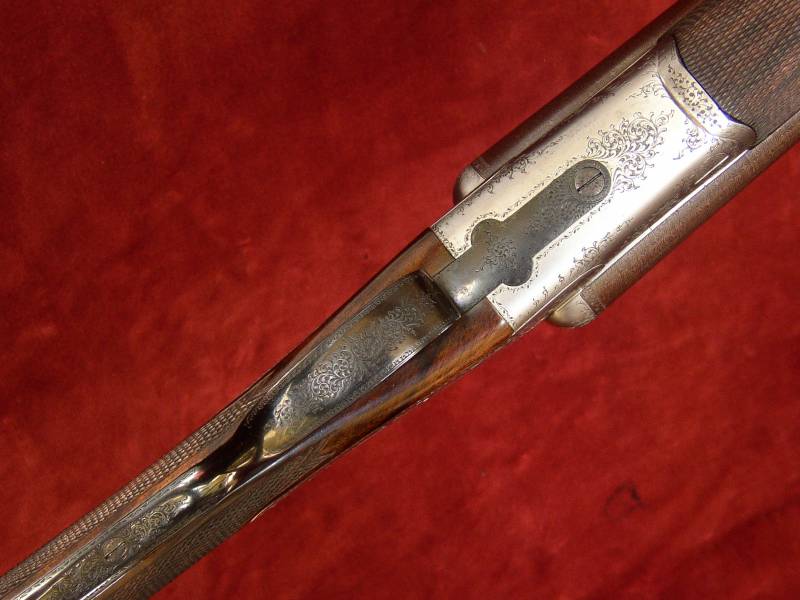

The action is of W & C Scott
& Co design and features:
Double triggers bolted by an automatic top tang safety
slide,
Back action locks,
Interceptor sears,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Three point bolting including top extension,
Tumbler and sear ejectors to 'Deeley'/'Perkes' design tripped by cocking
rods running from the action knuckle to the breasts of the tumblers.
Gun weight 6lb 11oz
Engraving style Creeping vine border with bold foliate panels.
Trigger pulls measure approximately: Front trigger 4 1/2lbs Rear
trigger 4 1/2lbs
The barrels are 28" in length,
chambered for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs. All barrel parts other than
the lumps and top rib extension are of bold, well figured 'Damascus'
laminated steel. Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2003.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.732"
|
0.022" Minimum
|
0.009"
|
Left Barrel |
18.6mm (0.732")
|
0.734"
|
0.020" Minimum
|
0.016"
|

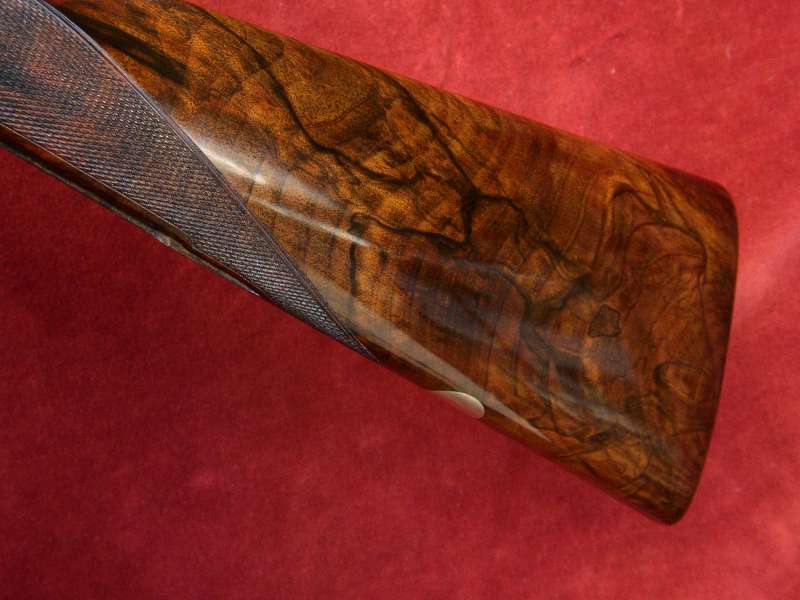

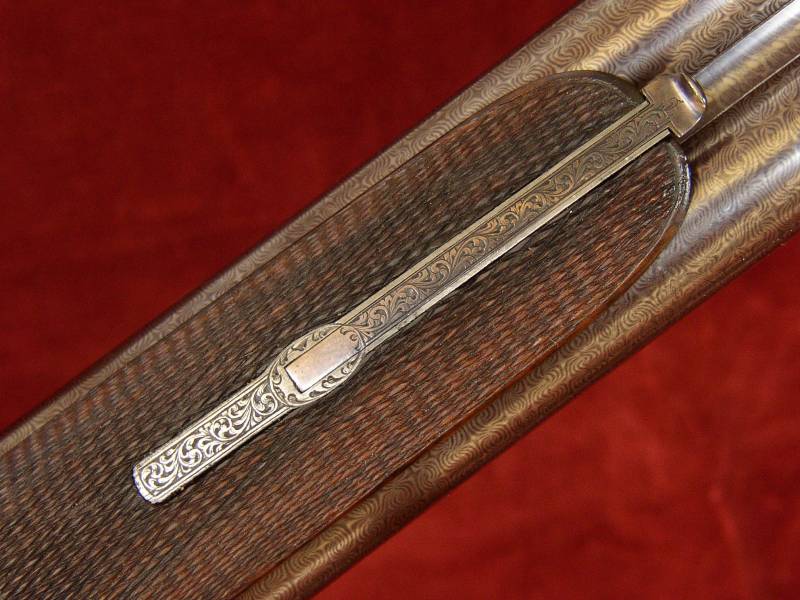

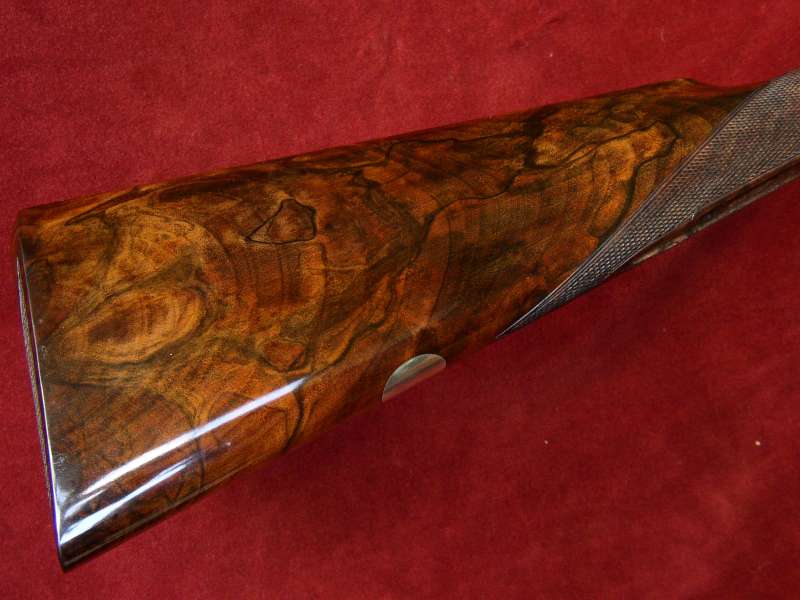

Straight Hand Stock and Splinter Forend
are crafted from exhibition grade walnut. While the forend is most probably
the original wood, the gun was restocked in the year 2000 after an accident
in which the stock was badly cracked at the hand. The stock is cast
off for a right-handed shot.
The 20 lines per inch
chequering is to normal J Blanch design of fully chequered forend
with a narrow unadorned border and a stock pattern that closely follows
the outline of the lock plate.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Centre
|
Pull to Toe
|
Pull to Heel
|
Pull to Bump
|
15 1/16"
|
15 3/8"
|
15"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 3/4"
|
2 3/8"
|
Cast at Comb
|
Cast at Heel
|
1/4" (approximate)
|
3/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Perkes' cocking rod patent no. 1968 of 1878,
Deeley ejectors patent no. 14526 of 1884,
Perkes' ejector patent no. 10679 of 1886,
Scott's gas check patent no. 617 of 1882,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle'patent no. 2752 of 1865,
Scott's top extension patent no. 1902 of 1875,
Perkes' interceptor sear patent no. 3049 of 1883,
Scott's forend fastener patent no. 615 of 1876
and last but not least
Henry's snap cap patent no. 3257 of 1870.
