Blanch & Son. 29 Gracechurch Street, London
12 bore Box Lock Ejector
no. 6241
Approximate date of manufacture: 1896-1897
Click on these images for more detail.
Heritage
Guns Comment
This gun is an unusually finely finished and specified
example of the Anson & Deeley boxlock that had become such
a hugely successful design by the last decade of the 19th Century.

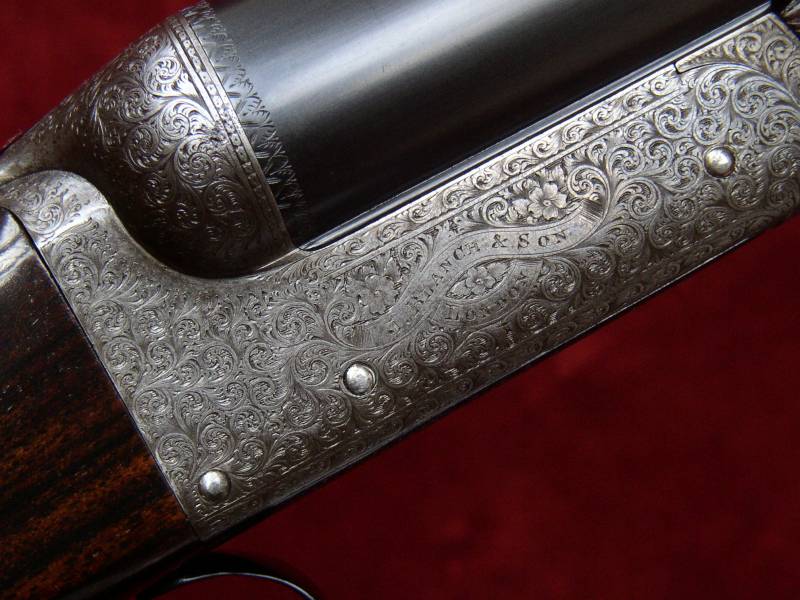

The action is profusely covered with best bold-foliate scroll
and bouquets as was the norm for this highly respected but little
known gunmaker and this coupled with our sensitive restoration
makes it a very pretty and 'shootable' gun for either game or
clays.
Since this gun's original stock listing, we have further improved
this already superb gun by removing the last vestigial pitting
and reproofing and by the fitting of a Silver's traditional recoil
pad.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

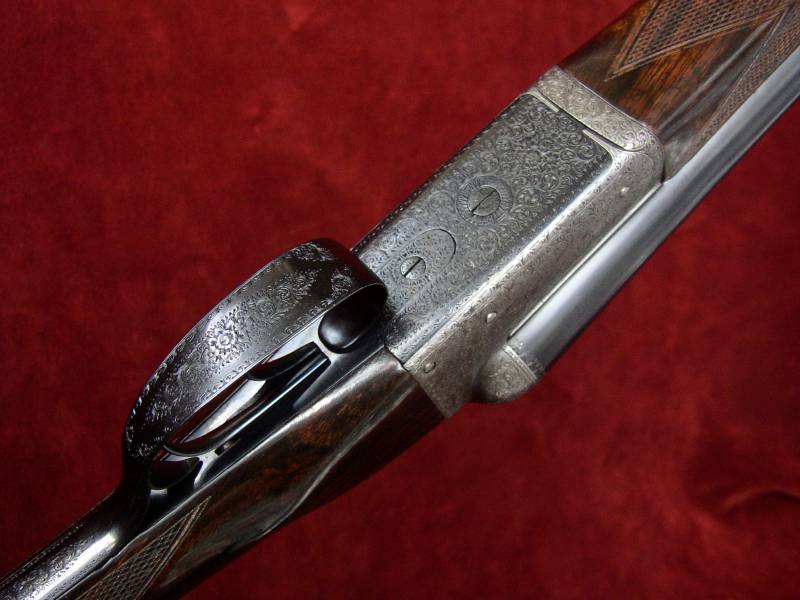

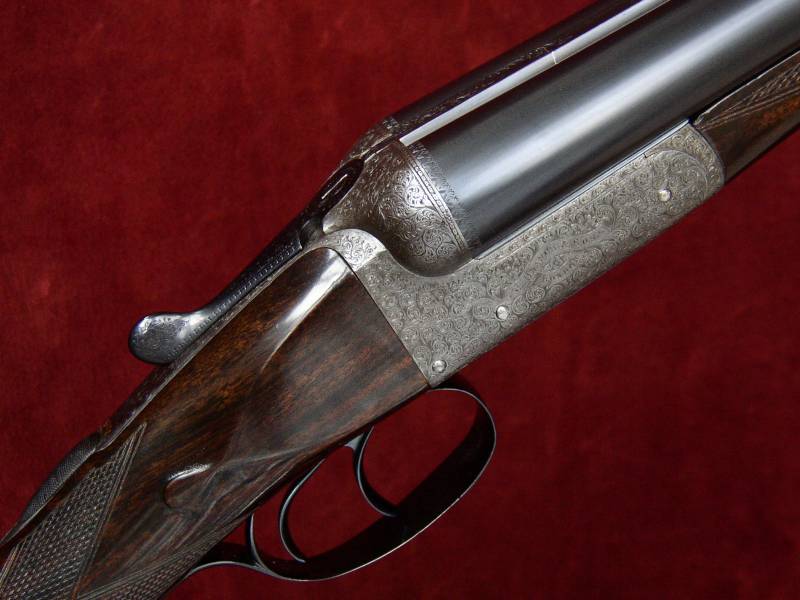

The Action
is of Anson & Deeley design and features:
Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Three point bolting including top extension,
Tumbler and sear ejectors to 'Deeley' design tripped by slides running
from the action knuckle to the main springs.
Gun Weight 6lb 6oz
Engraving Style Best bold foliate and bouquets.
As is our custom, Trigger Pulls have been adjusted for 'feel'
rather that to any particular pull weight but for the record they
measure approximately: Front trigger 4 1/2lbs Rear trigger 3 3/4lbs
The original Steel
Barrels are 30" in length, chambered for 2 ¾" (70mm)
cartridges and are of brazed 'dovetail' lump construction with soft
soldered ribs. Top rib is of the smooth, concave, game type. All pitting
has been removed, leaving only the faintest of marks in the left barrel.
London reproof for 70mm nitro powder cartridges in 2005.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.732"
|
0.028" Minimum
|
0.011" (1/4)
|
Left Barrel |
18.8mm (0.740")
|
0.742"
|
0.022" Minimum
|
0.021" (1/2)
|
Straight Hand
Stock and Splinter Forend
are crafted from highly figured 'Tiger Stripe' walnut. The stock is
slightly cast off for a right-handed shot and is finished with a traditional
'Silvers' recoil pad.
|

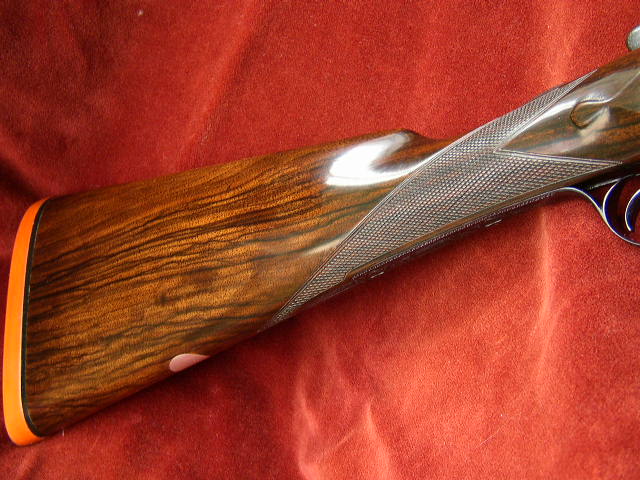

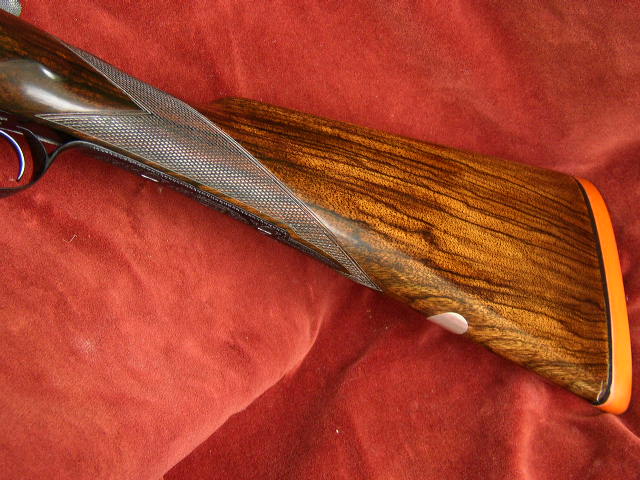

Highly figured 'Tiger Stripe'
walnut stock.
|
|
The 20 lines per inch
chequering freshened to the normal
boxlock design with well defined drop points.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements (including pad) at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 7/8"
|
15"
|
15 1/16"
|
15 3/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 3/8"
|
1 5/8"
|
2 3/16"
|
Cast at Comb
|
Cast at Heel
|
1/16" (approximate)
|
3/16" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Deeley's ejectors patent no. 4289 of 1886,
Anson & Deeley's boxlock patent no. 1756 of
1875,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Anson & Deeley's safety catch no. 907 of 1879,
Scott's top extension patent no. 1902 of 1875,
Anson's forend fastener patent no. 3791 of 1872
and last but not least
Henry's snap cap patent no. 3257 of 1870.
