J
Blanch & Son. 29 Gracechurch Street, London
12 bore Box Lock Ejector
no. 6286
Approximate date of manufacture: 1896-1897
Click on these images for more detail.
Heritage
Guns Comment
This gun is an unusually good condition example
of the Anson & Deeley boxlock that had become such a hugely
successful design by the last decade of the 19th Century. The

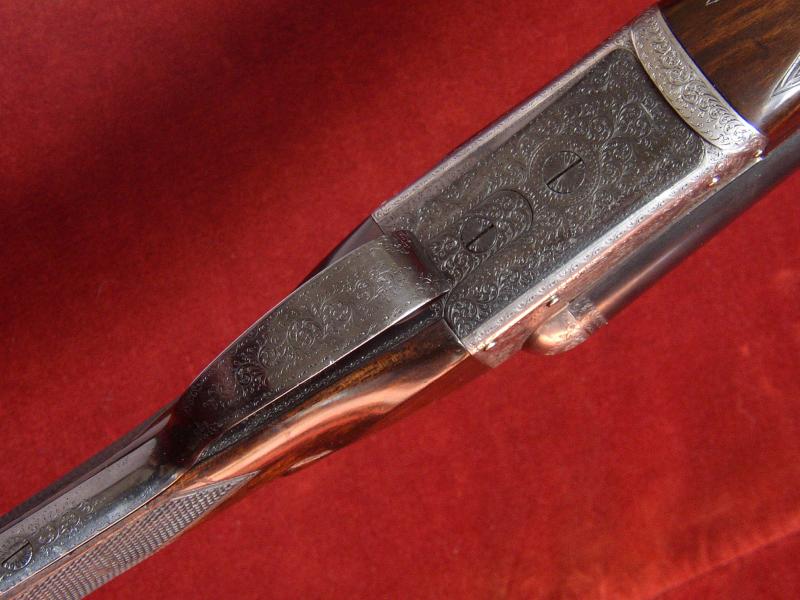

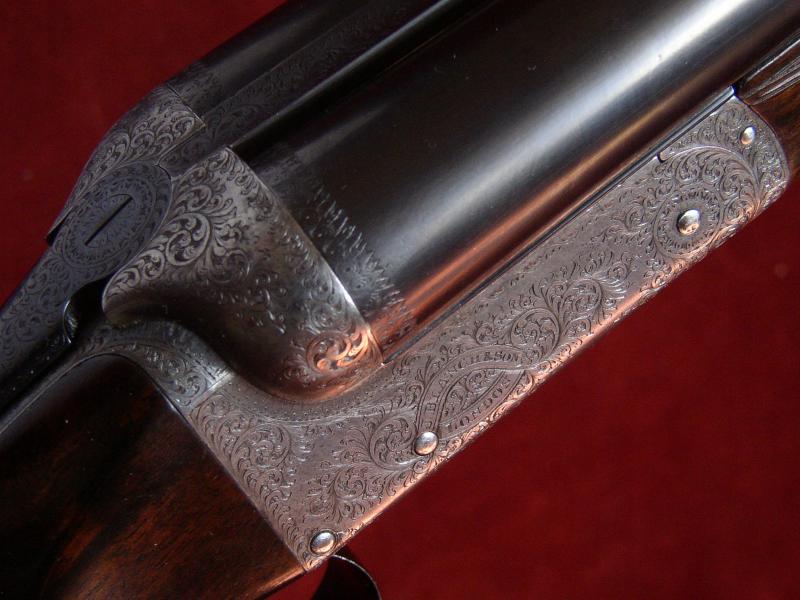

action is covered with best bold foliate scroll as was the norm
for this highly respected but little known gunmaker and this coupled
with our sensitive restoration makes it a very pretty and 'shootable'
gun for either game or clays.
The gun is very finely finished and also retains its original
pins throughout which confirms that it has not been the victim
of untrained hands during its 100+ years of use. One point of
interest is the gun's novel ejector trip mechanism coupled with
the ubiquitous 'over-centre' ejector mechanism both of which are
usually attributed to Thomas Southgate. This ejector trip works
on the rotation of the cocking dog rather than the fall of the
tumbler which therefore isolates it from the relative positions
of the trigger sear and tumbler, a major complication in the regulation
of boxlock ejectors. However, it also features a very small amount
of engagement with the ejector kicker which makes it susceptible
to wear.
WE REGRET THAT THIS GUN IS
NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT
US.
|

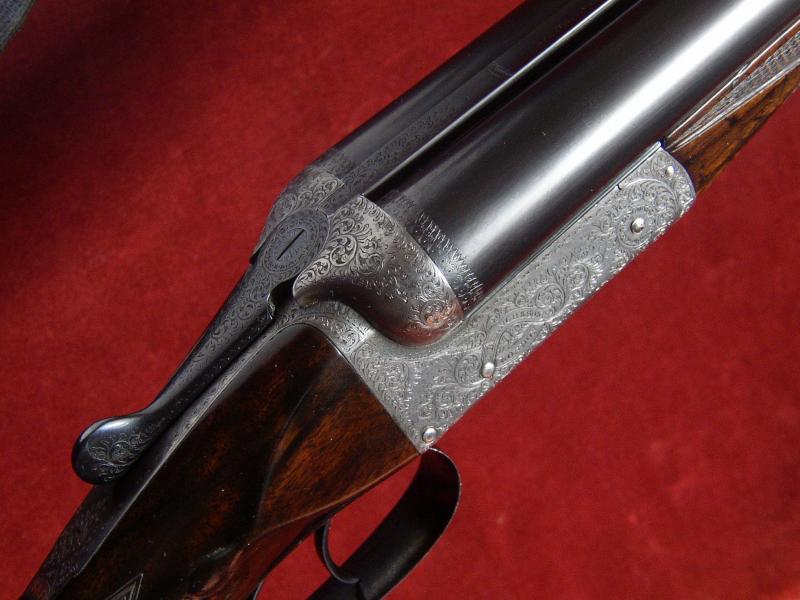

The Action
is of Anson & Deeley design and features:
Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Three point bolting including top extension,
Over-centre ejectors to 'Southgate' design tripped by rockers
working on the rotation of the cocking dogs.
Gun Weight Please contact us
Engraving Style Best bold foliate..
As is our custom, Trigger Pulls have been adjusted for 'feel'
rather that to any particular pull weight but for the record they
measure approximately: Front trigger 5lbs Rear trigger 4 1/2lbs
The original Steel
Barrels are 30" in length, chambered for 2 ¾" (70mm)
cartridges and are of brazed 'dovetail' lump construction with soft
soldered ribs. Top rib is of the smooth, concave, game type. The bores
are clean and free of any pitting.
London reproof for 70mm nitro powder cartridges in 2005.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.733"
|
0.029" Minimum
|
0.014" (3/8)
|
Left Barrel |
18.7mm (0.736")
|
0.738"
|
0.023" Minimum
|
0.020" (1/2)
|

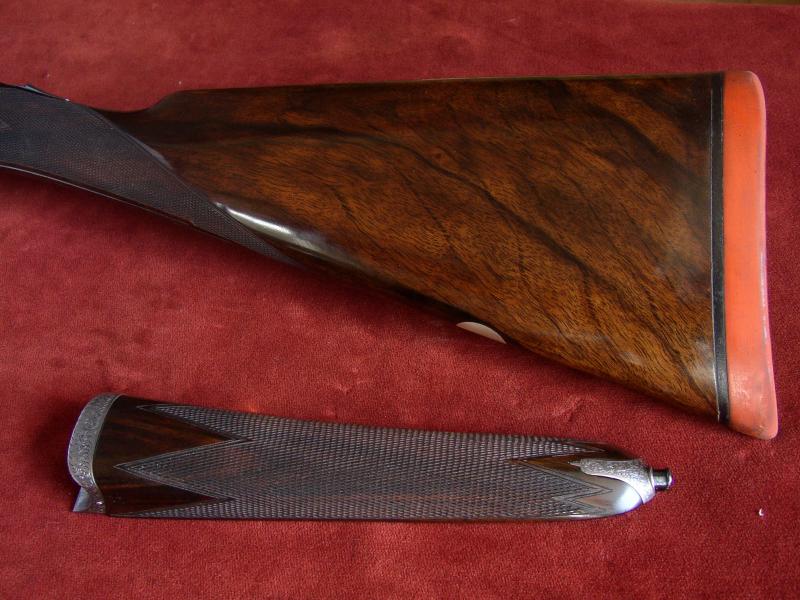

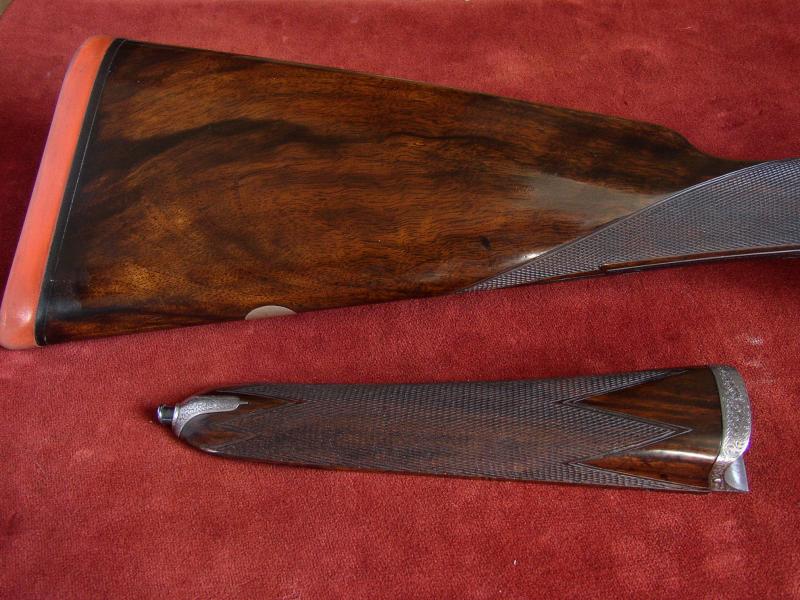

Straight Hand
Stock and Splinter Forend
are crafted from well figured walnut. The stock is slightly cast off
for a right-handed shot and is finished with a traditional 'Silvers'
recoil pad.
|
Well figured walnut stock
& forend.
|
|
The 22 lines per inch
chequering freshened to the normal
boxlock design with well defined drop points.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements (including pad) at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 9/16"
|
14 5/8"
|
14 5/8"
|
15 3/16"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 7/8"
|
2 3/8"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
3/16" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Southgate' ejectors patent no. 12314 of 1889,
Anson & Deeley's boxlock patent no. 1756 of
1875,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Anson & Deeley's safety catch no. 907 of 1879,
Scott's top extension patent no. 1902 of 1875,
Anson's forend fastener patent no. 3791 of 1872.
