J
Blanch & Son. 29 Gracechurch Street, London
12 bore Box Lock Ejector
no. 6723
Approximate date of manufacture: 1910
Click on these images for more detail.
Heritage
Guns Comment
This gun is an well-finished example of the Anson
& Deeley boxlock that had become the backbone of the English
gun trade after the turn of the 19th Century and represent a rare
opportunity to acquire a gun rebarrelled by the makers. The action
is fully covered with fine bouquet and scroll and this coupled
with our sensitive restoration makes it a very pretty and 'shootable'
gun for either game or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

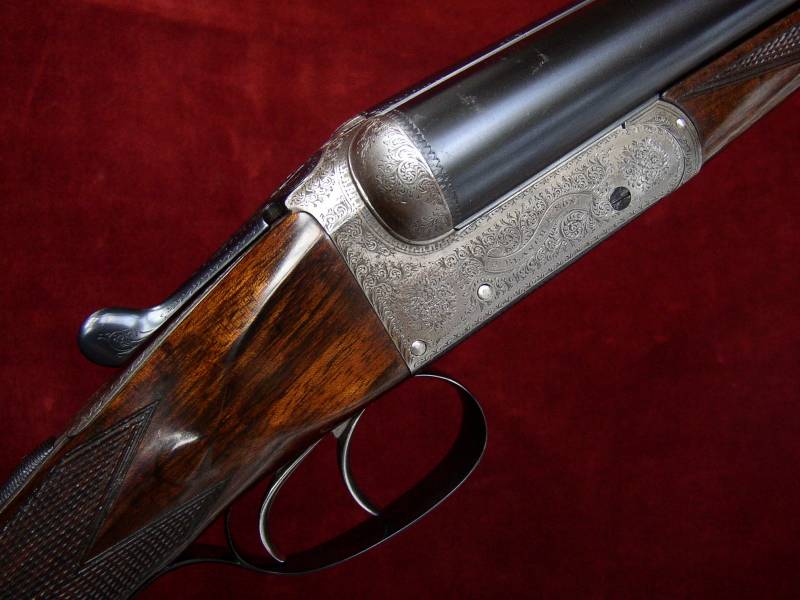

The action is of Anson & Deeley
design and features:
Double triggers bolted by an automatic top tang safety
slide,

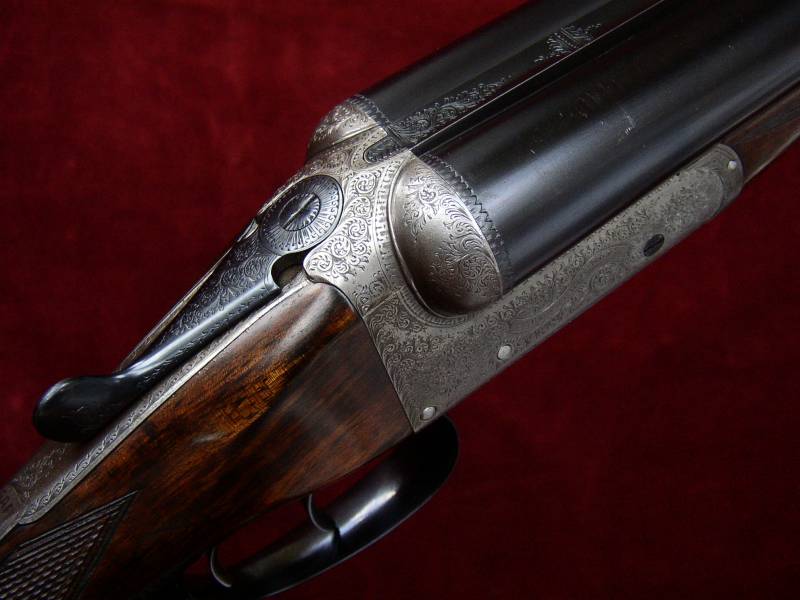

Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Three point bolting including top extension,
Ejectors to 'Southgate' design tripped by the cocking dogs.
Gun weight 6lb
6 1/2oz

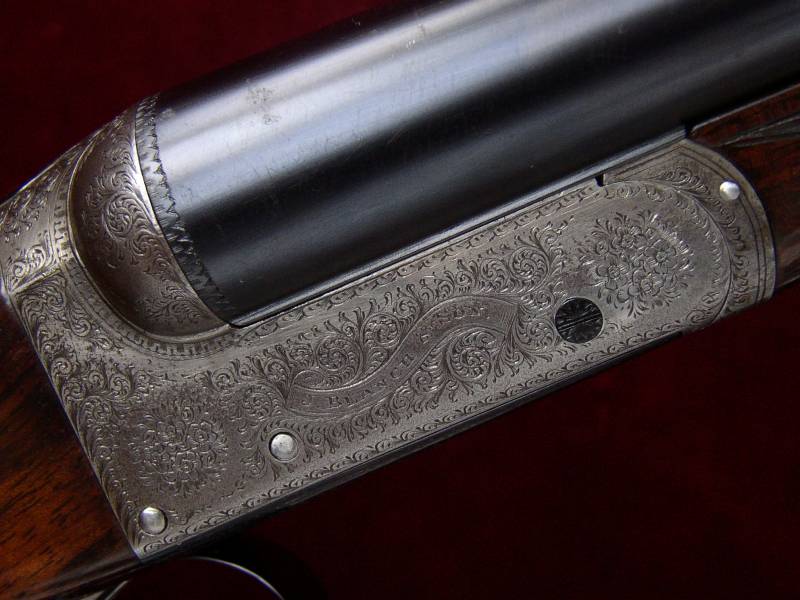

Engraving style Fine scroll and bouquets.
Trigger pulls measure approximately: Front trigger 5lbs Rear
trigger 5lbs
The replacement steel
barrels are 28" in length, chambered for 2 3/4" (70mm)
cartridges and are of brazed 'dovetail' lump construction with soft
soldered ribs. Top rib is of the smooth, concave, game type.
The gun was rebarrelled by the makers in 1959.
The gun was London reproved to 2 3/4" (70mm) in 2004.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
0.729"
|
0.732"
|
0.034" Minimum
|
0.009" (1/4)
|
Left Barrel |
0.729"
|
0.733"
|
0.028" Minimum
|
0.012" (1/4)
|
Straight Hand
Stock and Splinter Forend are crafted from
highly figured walnut with a 'Silvers' recoil pad fitted,
well defined drop points and a blank oval.. The
stock is cast off for a right-handed shot.
|

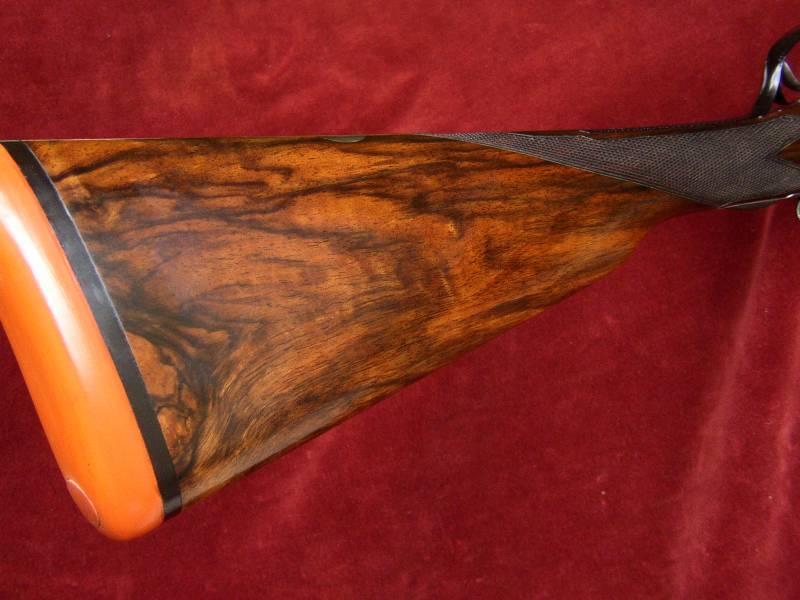

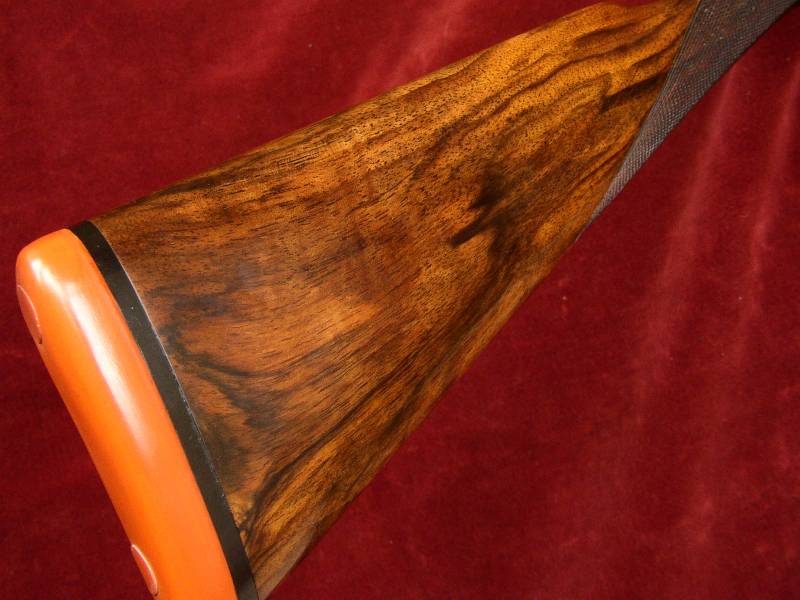

Highly figured walnut stock.
|
|
The 18 lines per inch
chequering freshened to the normal
boxlock design.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 7/8"
|
15"
|
14 7/8"
|
15 1/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 11/16"
|
2 1/8"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
1/2" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Southgate's ejector patent no. 12314 of 1889,
Anson & Deeley boxlock patent no. 1756 of
1875,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Anson & Deeley safety catch no. 907 of 1879,
Mills' top extension patent no. 4980 of 1878
Anson's forend fastener patent no. 3791 of 1872
and last but not least
Henry's snap cap patent no. 3257 of 1870.
