Holland & Holland,
98 New Bond Street, London
12 bore Backaction hammer gun
no. 14070
Year of manufacture: 1875-1887 (shot and regulated 1891)
Click on these images for more detail.
Heritage
Guns' Comment
This gun is a lovely example of a sporting hammergun
from this illustrious gunmaker. Professionally restocking in the
relatively recent past and TIG sleeved barrels coupled with our
sensitive restoration makes it a very pretty, safe and highly
'shootable' gun.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

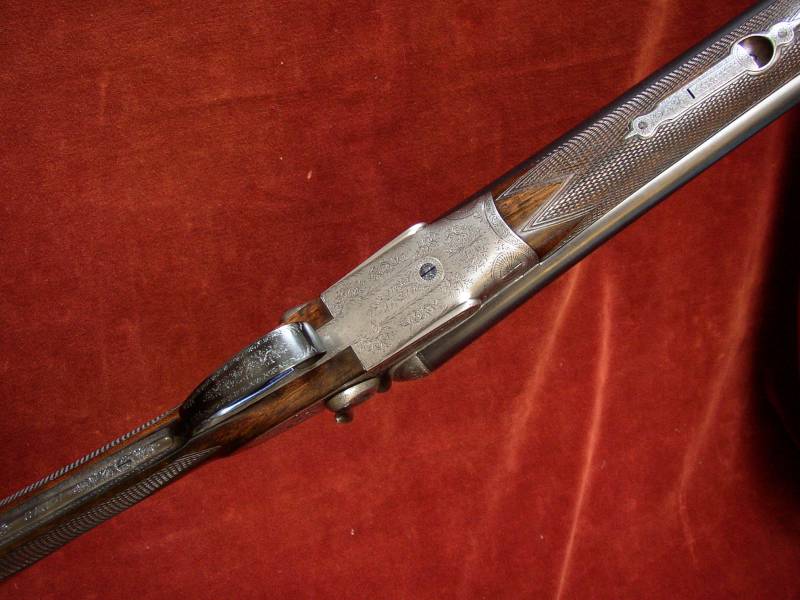

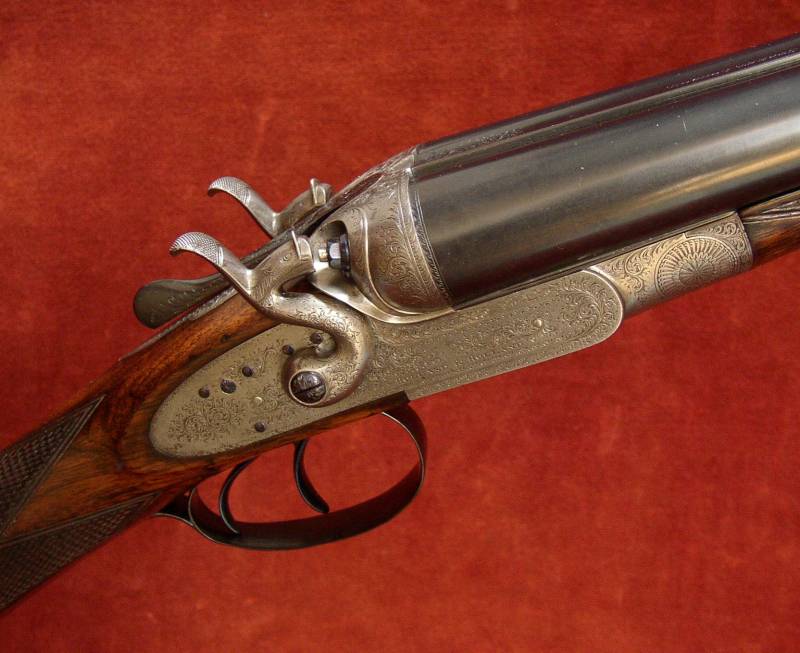

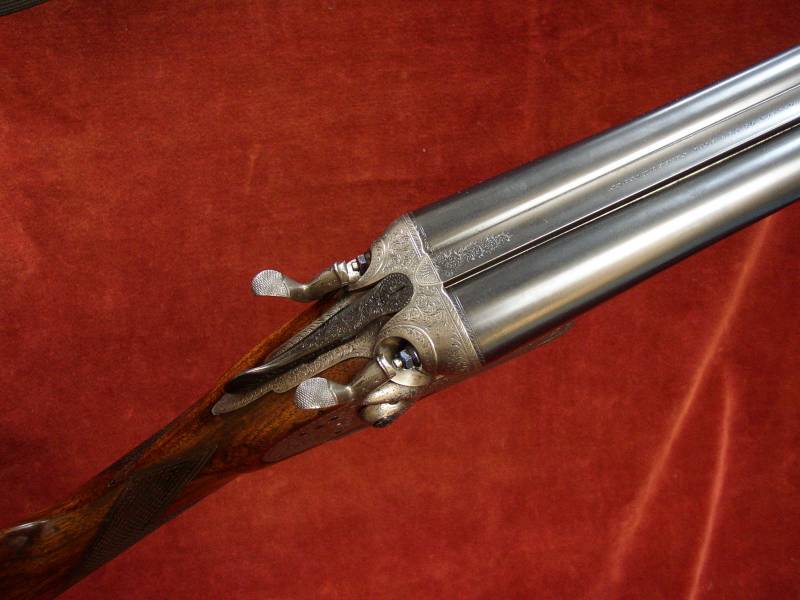

The action is of normal bar action
design and features:
Double triggers,

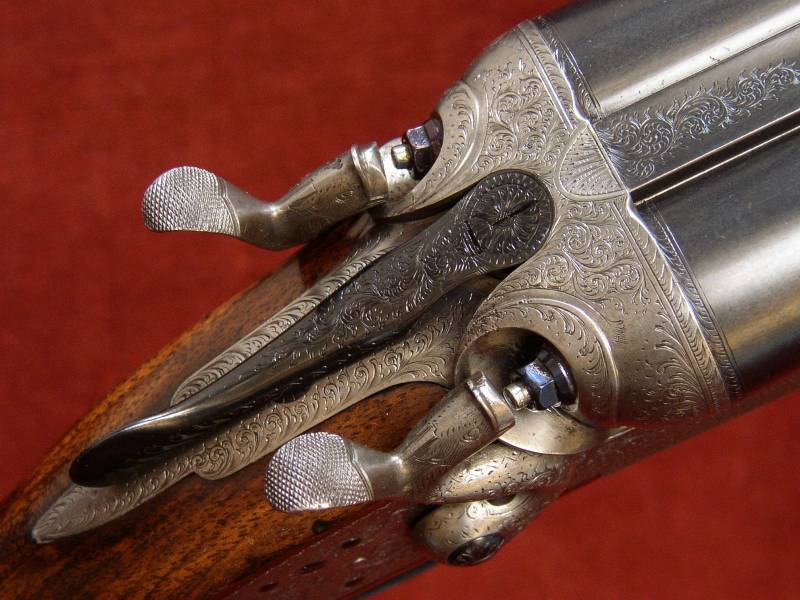

Bar action locks, Rebounding 'Dolphin' hammers, '4 Pin' bridles,
Top lever opening, operating a 'Purdey Bolt' via a 'Scott Spindle',
Deeley forend catch, Engraved metal forend tip,
Percussion fences.
Gun weight 6lb 11oz

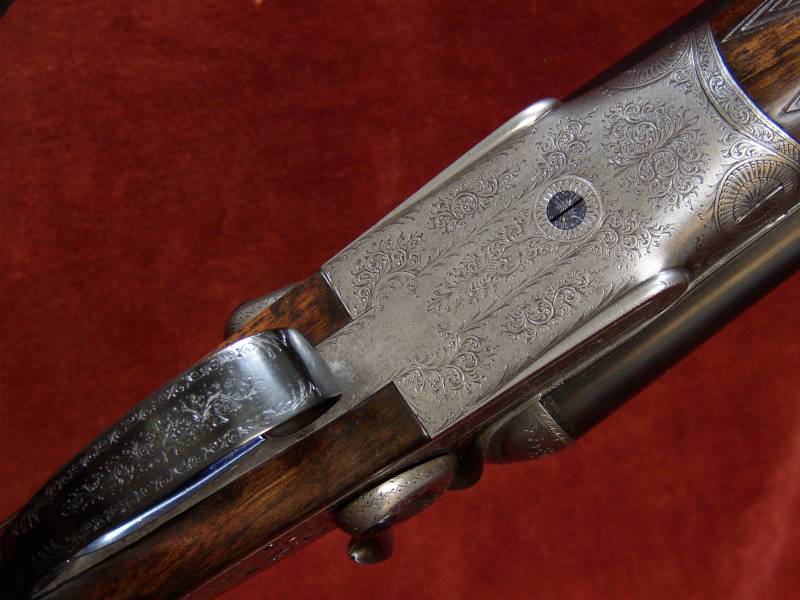

Engraving style Best Border & Foliate
Scroll
Trigger pulls measure approximately: Front trigger 3 1/2lbs Rear
trigger 4 1/2 lbs
The TIG sleeved Damascus to steel barrels are 30" in length,
chambered for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs. Top rib is of the
smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2010.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.734"
|
0.030"+
|
0.012" (IC)
|
Left Barrel |
18.6mm (0.732")
|
0.734"
|
0.030"+
|
0.022" (M)
|

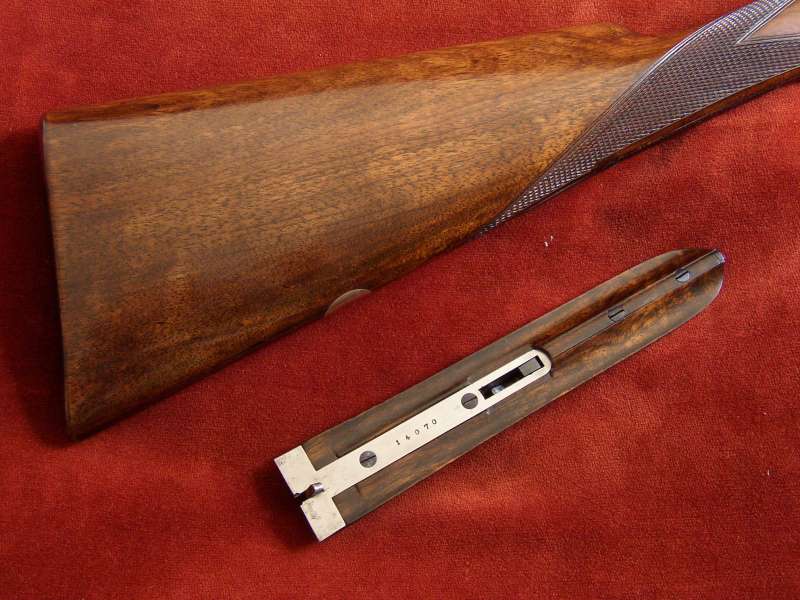

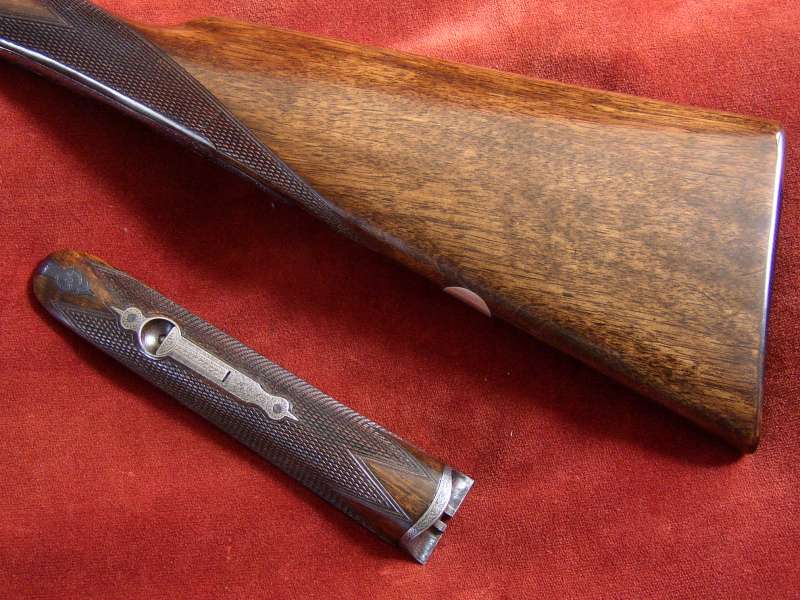

The replacement Straight Hand Stock
is crafted from straight grain walnut. The Forend is considered
to be the original well figured wood. The stock is lightly cast-off
for a right-handed shot and features a vacant white metal escutcheon.
The approximately 20 lines per inch chequering
has been cut to a normal sidelock design. The stock is finished with
a traditional linseed oil based preparation as used on best guns by
one of the top English makers. This finish uses no grain fillers to
achieve its deep, smooth lustre, only many hours of alternate build
and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/8"
|
14 1/2"
|
14 1/2"
|
15"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 13/16"
|
2
5/16"
|
Cast at Comb
|
Cast at Heel
|
1/16" (approximate)
|
1/8"
(approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867,
'Purdey's Bolt' patent no. 1104 of 1863,
Deeley's forend fastener patent no. 1422 of 1873,
'Scott Spindle' patent no. 2752 of 1865.
