Holland & Holland, 98 New Bond Street, London
12 bore 'Royal' Bar Action, Sidelock Ejector
No. 12319 No 1 of Pair
Date of manufacture: 1889
Click on these images for more detail.
Heritage
Guns' Comment

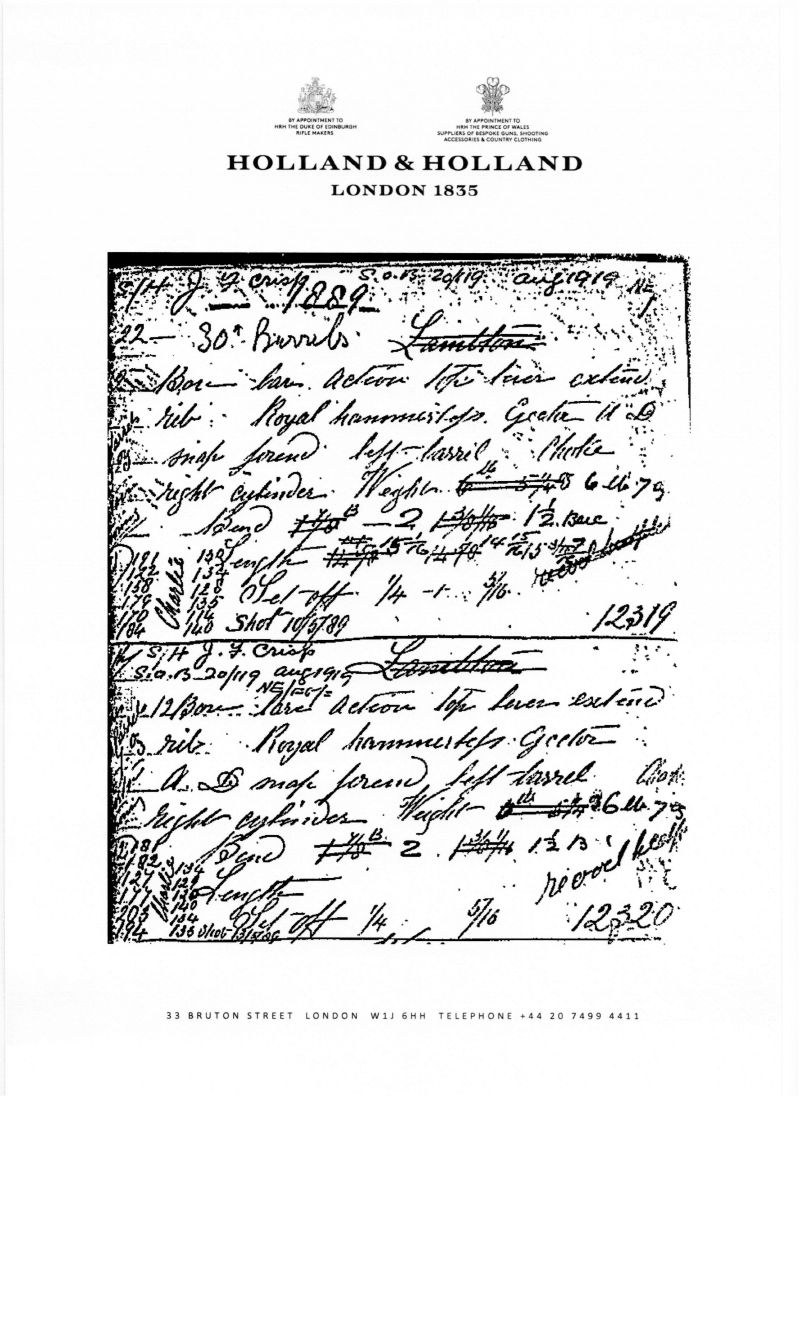

Holland & Holland records show
that this gun was finished as No 1 of a pair in 1889 for 'Lambton'
but later sold to 'Crisp' and is a very lovely example of Holland
& Holland's 'flag ship' gun. On the back of the action is
stamped 'JR' which tells us that this gun was at least actioned
in the famous workshops of John Robertson, later proprietor of
Boss & Co. It is very likely that Robertson actually completed
this gun in its entirety for Hollands as he was well known for
screwing and stocking a huge number of guns for the London trade.
The history of the barrels is somewhat confused by the numerous
proof marks through the ages but it appears that it was sleeved
in 1960 and subsequently chambered for 70mm cartridges and reproofed
in 2010. The restocking is obviously quite recent but we have
no indication of just when it was done. However it is the work
of a professional and very experienced stocker and when we acquired
the gun, carried the traditional swept comb of an H&H gun.
This would lead one to assume that the work was done by a stocker
with considerable experience of H&H stocks, maybe even an
ex-H&H worker.
With its excellent weight, interceptor sears, long stock and barrel
dimensions, this gun would make a fine target or game gun for
the discerning shooter.

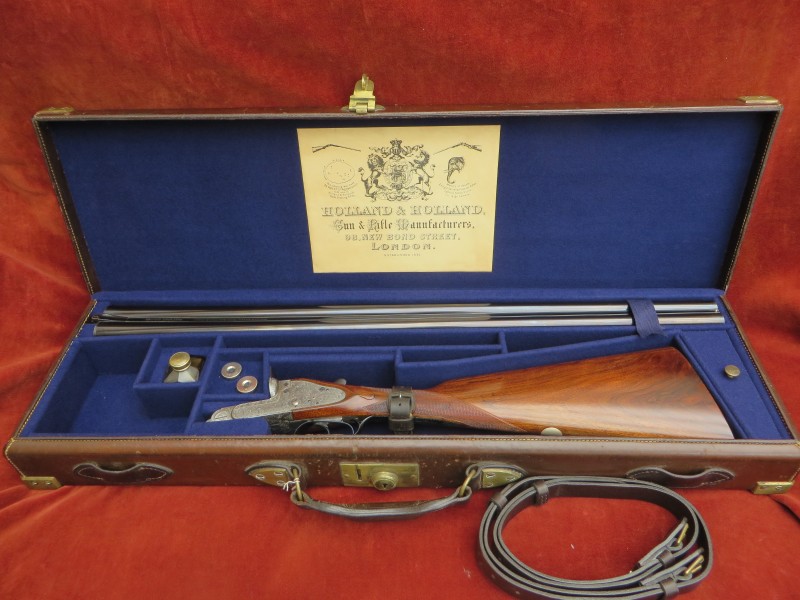

Presented in its Leather and Brass case with some accessories
and a reproduction trade label.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|
The action is of combined Holland
& Robertson design and features:
Bar action, 'Dip Edge', nine pin locks with bolstered tumbler pivots;
Double triggers bolted by an automatic top tang safety slide;
Breech face 'Gas Checks';
'Patent Block Safety' interceptor sears;

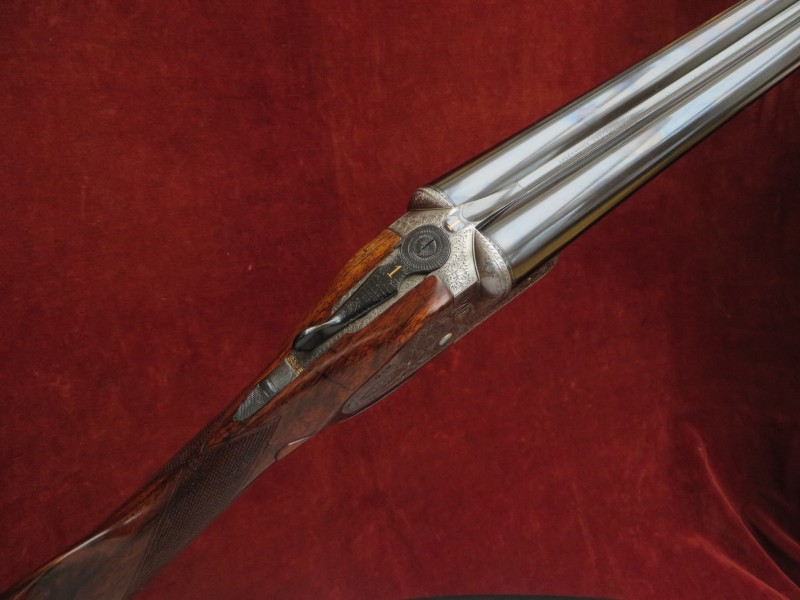

Top lever operating a 'Purdey Bolt' by way of a 'Scott Spindle';
Top rib extension providing a 3rd bite;
Roger's cocking levers;
Holland & Robertson's patent ejector
and Anson's push rod forend catch.
Gun weight 6lb 8oz

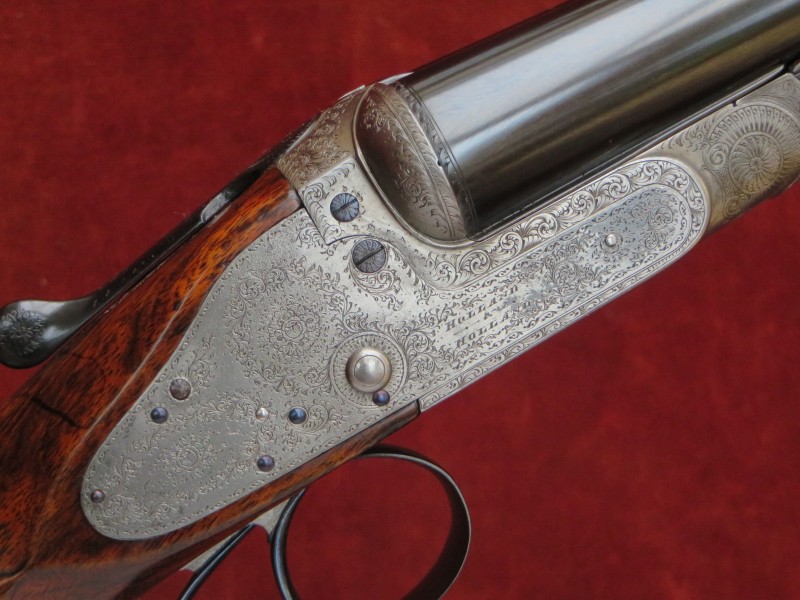

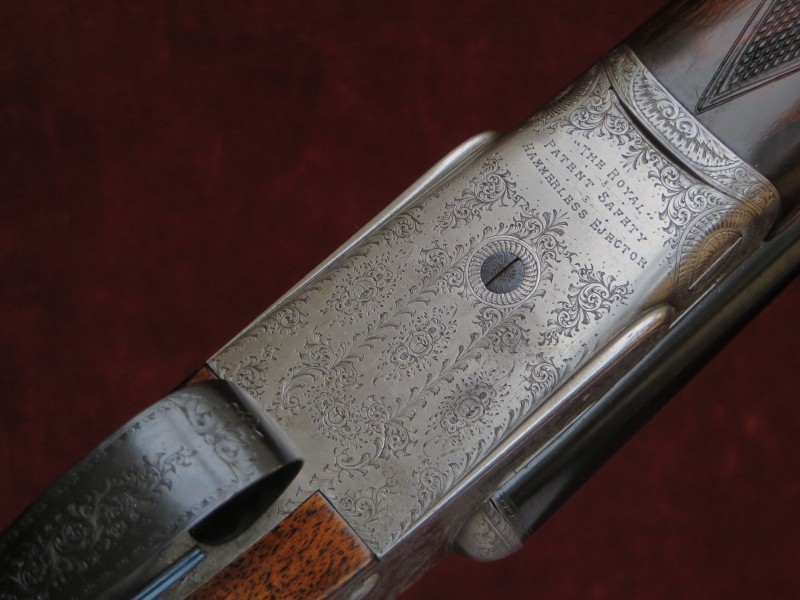

Engraving style Best Fine Bouquet & Scroll. '"THE ROYAL"
PATENT SAFETY HAMMERLESS EJECTOR' on underside of action; Top lever
engraved 'PATENT EJECTOR'; Gold inlaid 'SAFE' at safety slide.
Trigger pulls measure approximately: Front trigger 3lbs Rear
trigger 4lbs
The TIG sleeved damascus/steel barrels are 28" in length,
chambered for 2 3/4" (70mm) cartridges and are of brazed 'dovetail'
construction with soft soldered ribs.
Top rib is of the sunken, concave game type.
Bores are clean and bright.
London reproof for 70mm nitro powder cartridges in 2010.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm
0.732"
|
0.733"
|
0.032"
|
0.013"
(IC)
|
Left Barrel |
18.6mm
0.732"
|
0.735"
|
0.032"
|
0.027"
(IM)
|

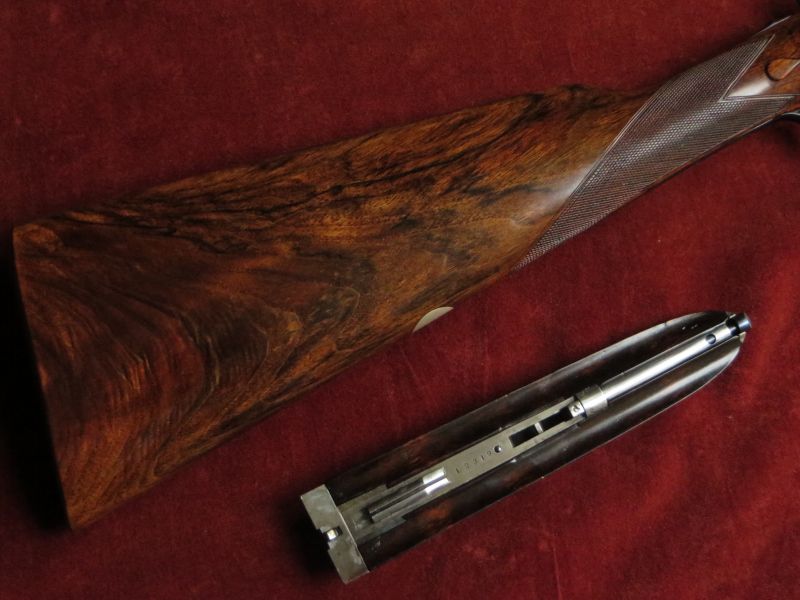

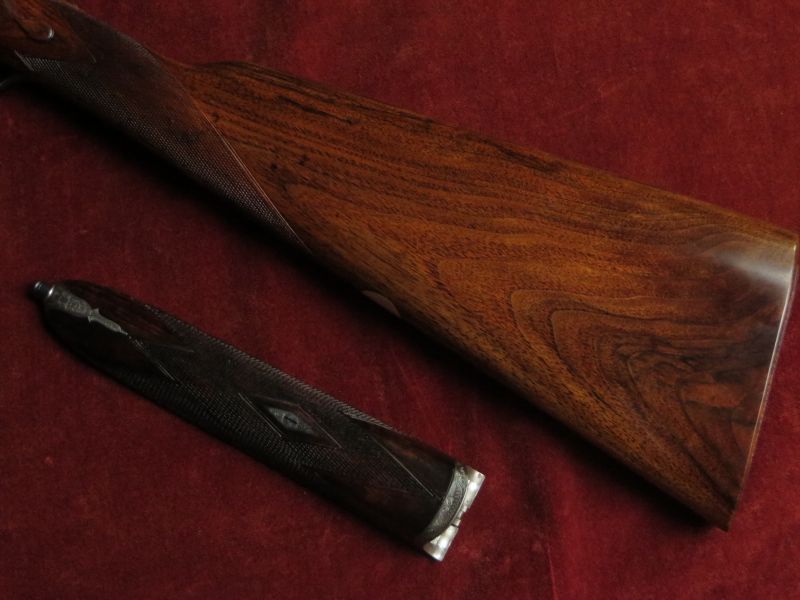

Replacement Straight Hand Stock and Original Splinter Forend
are crafted from well figured walnut. There is one small inlet repair
to the forend edge. The stock is cast off for a right-handed shot, features
a vacant white metal oval, well defined drop points and is finished
a chequered butt.
The 22 lines per inch chequering has been freshened
to normal sidelock pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
15"
|
15 1/8"
|
15 1/8"
|
15 1/2"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 5/8"
|
2 1/4"
|
Cast-off at Comb
|
Cast-off at Heel
|
3/16"
(approximate)
|
3/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Scott's gas check patent no. 617 of 1882;
Needham & Hinton interceptor sears patent no. 706 of 1879;
Holland & Robertson's ejector patent no. 11623 of 1887;
'Purdey Bolt' patent no. 1104 of 1863;
'Scott Spindle' patent no. 2752 of 1865;
Scott's top extension patent no. 1902 of 1875;
Anson's forend fastener patent no. 3791 of 1872.
