Hardy Bros, 61
Pall Mall, London, SW
12 bore Back action, Sidelock non ejector
No visible number.
Approximate date of manufacture: 1880-81
Click on these images for more detail.
Heritage
Guns' Comment
This gun represents an example in unusually fine
condition of the early hammerless guns that were becoming more
accepted in the last quarter of the 19th Century and a rare chance
to buy a gun retailed by this little known gunmaker. The gun exhibits
a wealth of innovative patents from the period and this coupled
with the sensitive restoration makes it a fascinating and highly
'shootable' gun for either game or clays.
This gun comes complete with a tooled, leather
case in very good external condition, fitted with new straps.
Internally, the case has been relined with new 'Burgundy' all
wool baize, carries a Heritage
Guns trade label and is fitted out with
ebony and brass tools including 3 turnscrews mounted in a hand
made oak block and a two part cleaning rod. The case is further
equipped with a spare set of dedicated strikers in a horn striker
pot, pewter oil bottle and set of cleaning tools in a leather
wallet.
The Heritage
Guns' package would not be complete without a unique
leather bound Companion
and a
hand crafted pair of personalised Heritage
Guns Damascus snapcaps.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

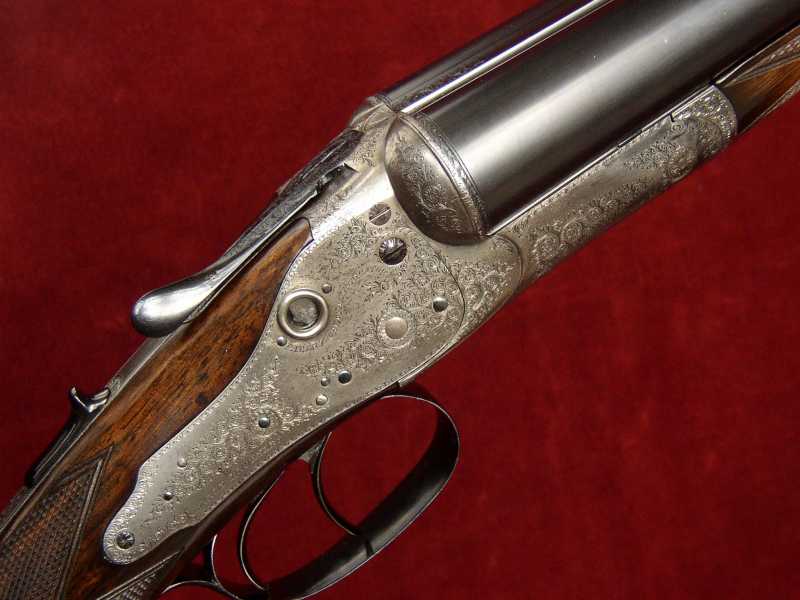

The action is of Scott & Baker
design and features:
Double triggers bolted by an automatic top tang safety
slide,
Back action locks,
Patent Crystal Indicators,
Interceptor sears,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Scott & Baker cocking rods running from the action knuckle to the
breasts of the tumblers.
Gun weight 6lb 7oz
Engraving style Best fine scroll.
Trigger pulls measure approximately: Front
5lb Rear 4lb
The 'invisibly sleeved' barrels
are 28" in length, chambered for 2 ¾" (70mm) cartridges
and are of brazed 'dovetail' lump construction with soft soldered ribs.
Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in
2003.
The address on the sleeved barrels infers that this gun
may have been sleeved by the makers as the gun dates from before Hardy
had a London address but the sleeving is concurrent with this address.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.732"
|
0.024" Minimum
|
0.030"
|
Left Barrel |
18.6mm (0.732")
|
0.732"
|
0.022" Minimum
|
0.047"
|

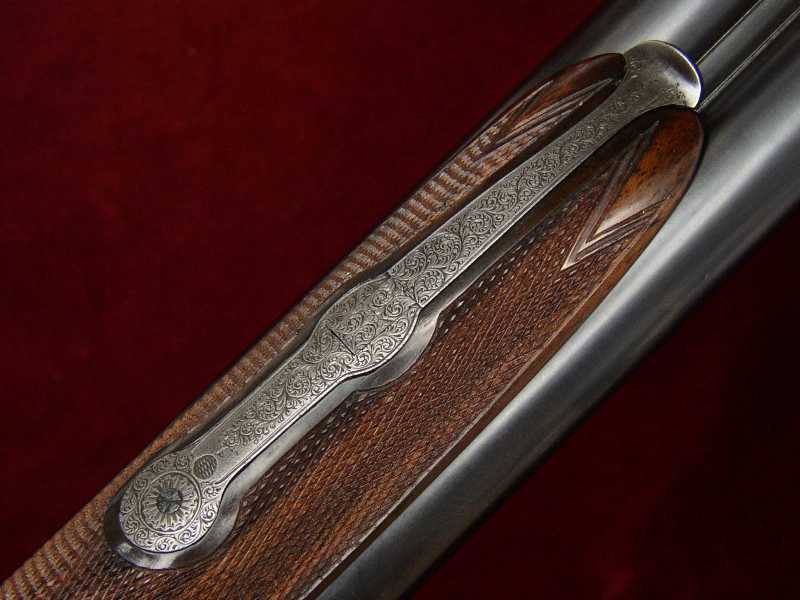

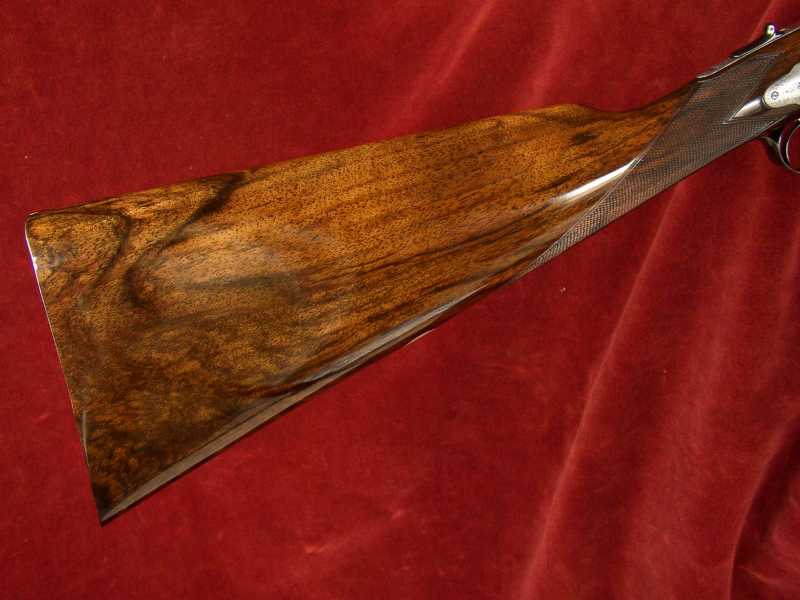

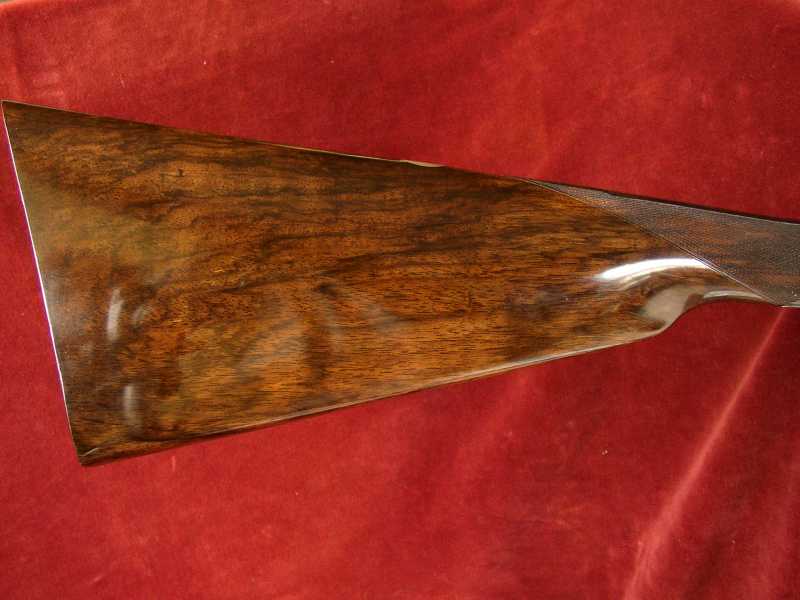

Straight Hand Stock and Splinter Forend
are the original figured walnut. The stock is cast off for a right-handed
shot. There is a repaired crack in the toe of the stock which shows
as a black line.
|
Original well
figured walnut
|
|
The 20 lines per inch
chequering has been re-cut to the original design.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Toe
|
Pull to Centre
|
Pull to Bump
|
Pull to Heel
|
14 13/16"
|
14 1/4"
|
N/A
|
14 3/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 3/4"
|
2 1/8"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Scott & Baker action patent no. 761 of 1878,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Needham & Hinton interceptor sears patent no. 706 of 1879,
Scott's cocking indicators patent no. 3223 of 1875,
Scott's forend fastener patent no. 615 of 1876,
Scott & Tonks' safety trigger block no. 3883 of 1879 (provisional)
and last but not least
Henry's snap cap patent no. 3257 of 1870.
