James
Lang, 18 Brook Street, London
12 bore Box Lock Ejector
No Visible Number
Approximate date of manufacture:
1888-1890
Click on these images for more detail.
Heritage
Guns' Comment
This gun represents a extremely rare chance to
buy a gun signed by this little known son of the famous Joseph
Lang. Very fine bouquet and scroll engraving combined with the
sensitive restoration makes it a very pretty and highly 'shootable'
gun for either game or clays.
This gun comes complete with a brass cornered
leather case in very good external condition and new handle and
straps. Internally, the case has been relined with new 'Burgundy'
all wool baize, carries a Heritage
Guns' trade label and is fitted out with ebony and
brass tools including 3 turnscrews mounted in a hand made oak
block and a two part cleaning rod. The case is further equipped
with an oil bottle and set of cleaning tools in a leather wallet.
The Heritage
Guns' package would not be complete without its unique
leather bound Companion
and a
hand crafted pair of personalised Heritage
Guns Damascus snapcaps.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

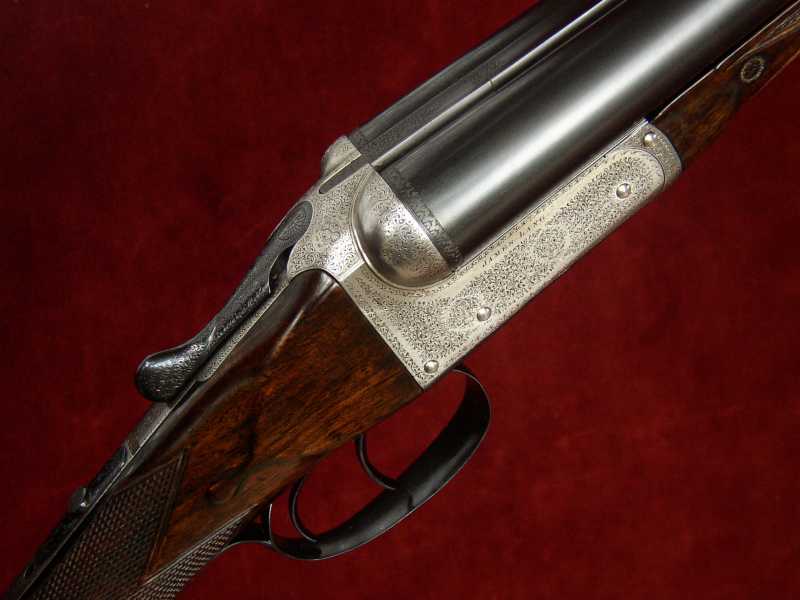

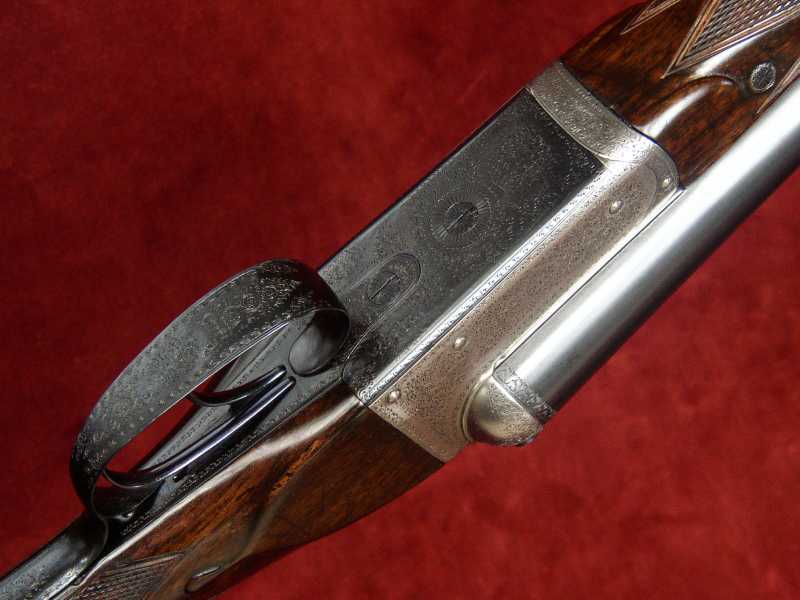

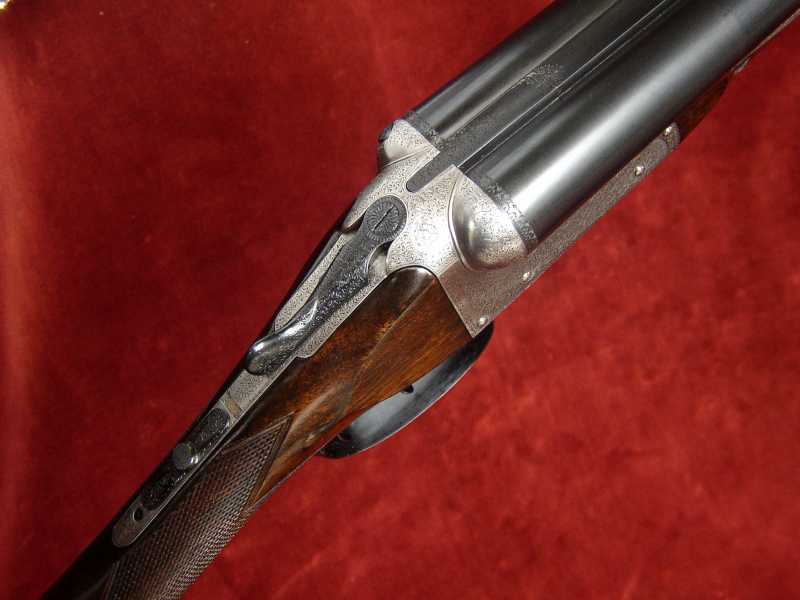

The action is of Anson & Deeley
boxlock design and features:
Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt' by
way of a 'Scott Spindle',
Three point bolting including Greener's top extension,
A rare Dallaway & Cox sear and tumbler ejector
tripped by integral extensions to the mainsprings
Gun weight 6lb 7oz
Engraving style Best fine bouquet & scroll with signed action.
Trigger pulls measure approximately:
Front trigger 4 1/2lb Rear trigger 5lb
The sleeved steel barrels are
28" in length, chambered for 2 ¾" (70mm) cartridges
with long forcing cones and are of brazed 'dovetail' lump construction
with soft soldered ribs. The sleeving if by TIG welding, so called 'Invisible
Sleeving'. Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2004.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.4 mm (0.724")
|
0.724"
|
0.028" Minimum
|
0.008" (1/4)
|
Left Barrel |
18.4 mm (0.724")
|
0.724"
|
0.031" Minimum
|
0.014" (3/8)
|

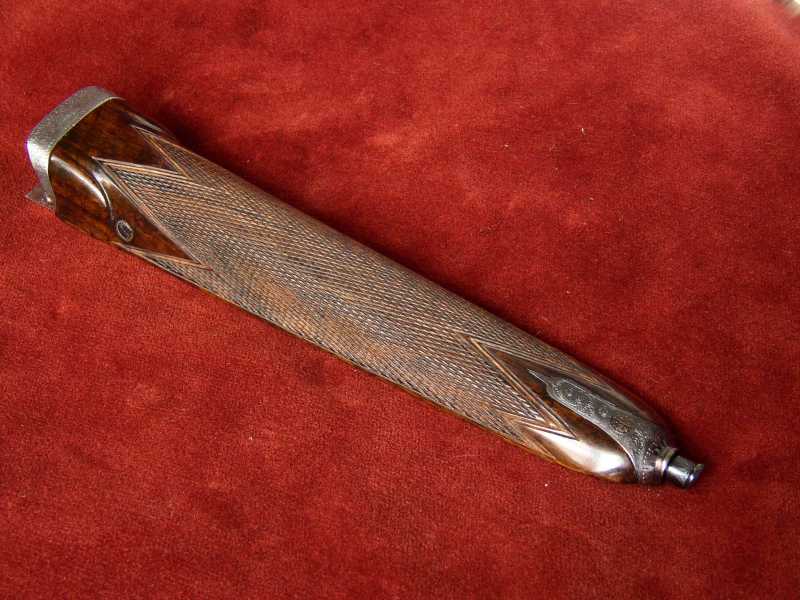

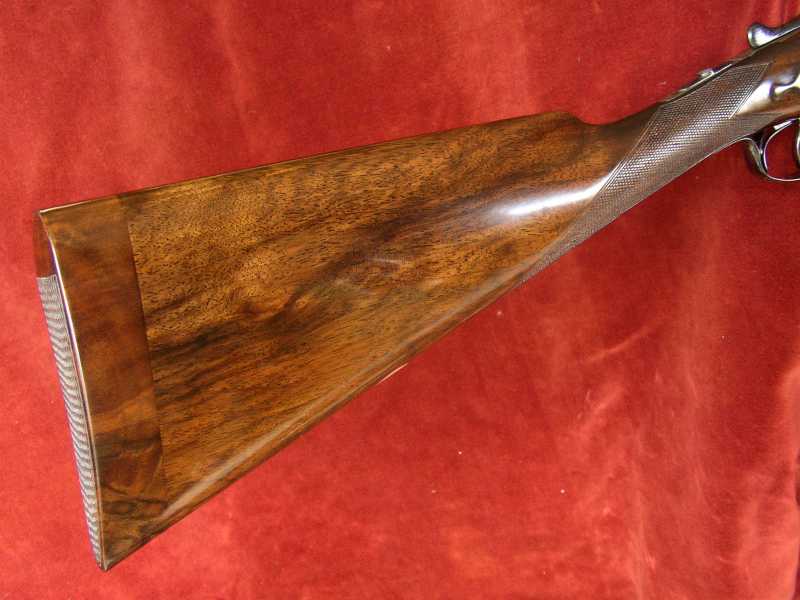

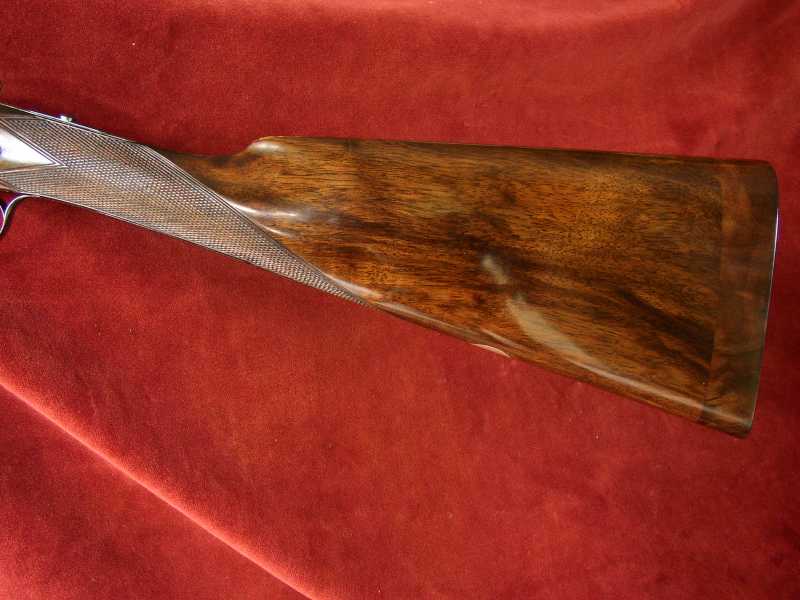

Straight Hand Stock and Splinter Forend
are crafted from well figured walnut with a walnut extension, well defined
drop points and a blank oval. The stock is slightly
cast on for a left-handed shot.
The
20 lines per inch chequering is to
normal boxlock design .
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
15 1/4"
|
15 5/16"
|
15 1/4"
|
15 7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 9/16"
|
1 3/4"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Anson & Deeley's boxlock patent no. 1756 of 1875,
Dallaway & Cox's ejector patent no. 13857
of 1888,
'Scott Spindle' patent no. 2752 of 1865,
Greener's cross bolt top extension patent no. 3090
of 1874,
'Purdey Bolt' patent no. 1104 of 1863,
Anson's forend fastener patent no. 3791 of 1872,
and last but not least
Henry's snap cap patent no. 3257 of 1870.
