John Lyell & Co, 128 Union Street, Aberdeen
12 bore Bar Action
Hammergun
no. 1676
Date of manufacture: pre-1887
Click on these images for more detail.
Heritage
Guns' Comment
This is an amazingly fine condition hammergun from a little known
and short lived gunmaking firm located in Aberdeen, Scotland
between about 1874 and 1879. Built for Lyell by the famous lock-
and gunmaker Joseph Brazier in Wolverhampton, the action and
lockwork is of very high quality as one would expect. Two rare and
interesting features are a two part hinge pin that screws together
from either side of the bar and a bolting mechanism very similar
to William Powell’s famous lift-up top lever patent but operated

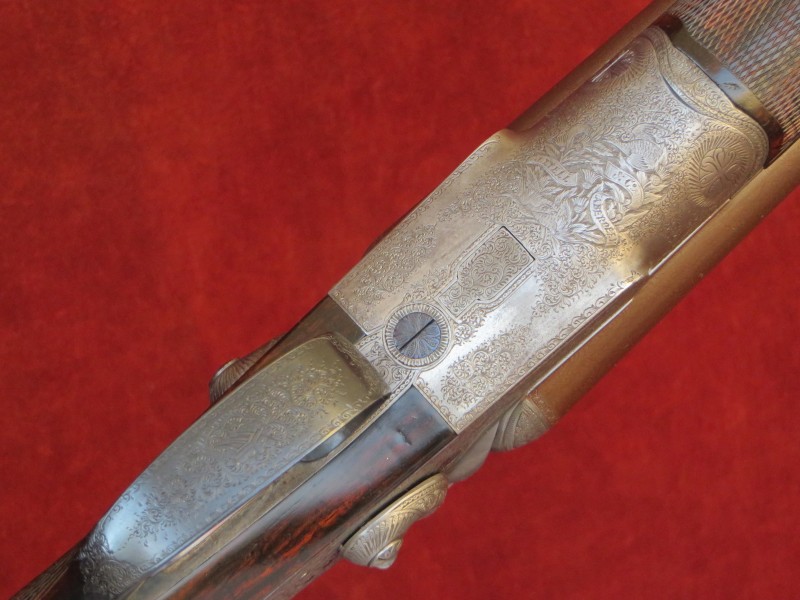

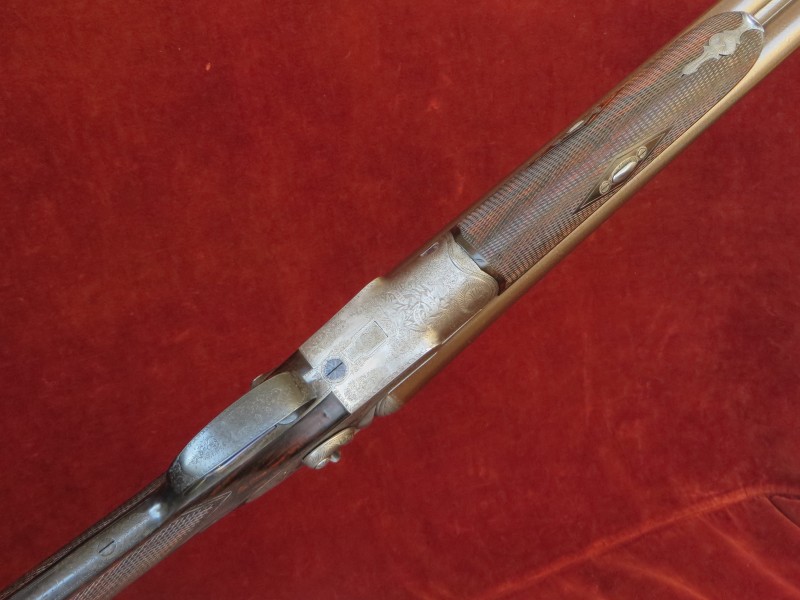

by a broad, normal toplever. The action flats are engraved with
patent details that we have been unable to trace and may refer to
either the bolting mechanism or perhaps the spit hinge pin. The
chokes are reversed, often referred to as ‘grouse chokes’, which
is traditional for a gun intended for shooting driven Scottish Red
Grouse. The gun is in lovely, shootable condition and is a very
fine example of the Scottish game guns built for wealthy
landowners engaged in the popular new sport of driven game bird
shooting. With its beautiful bold damascus barrels and finely
figured stock, this represents a very rare opportunity to acquire
a fine hammergun from this innovative era.
WE REGRET THAT THIS GUN IS NOW
SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT
US.
|

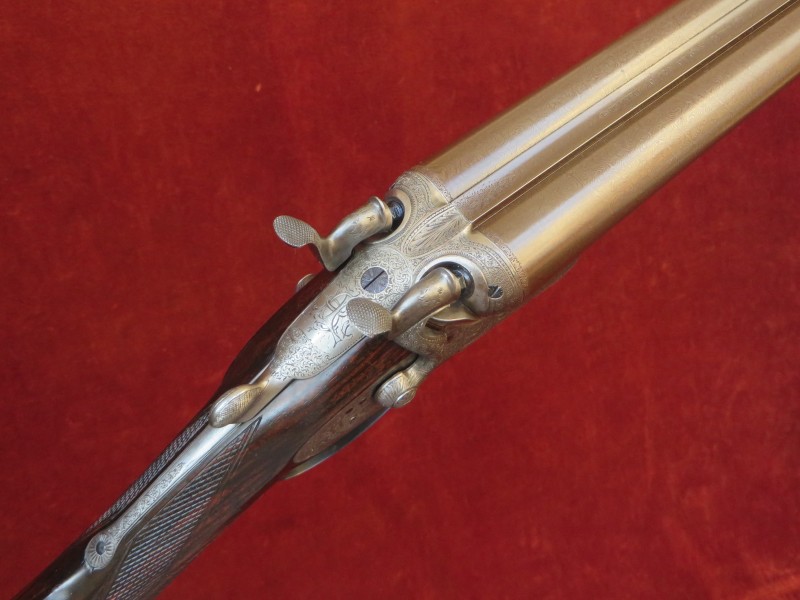

The action
is similar to William Powell’s design and features:
Two part hinge
pin; Double triggers; Percussion fences;

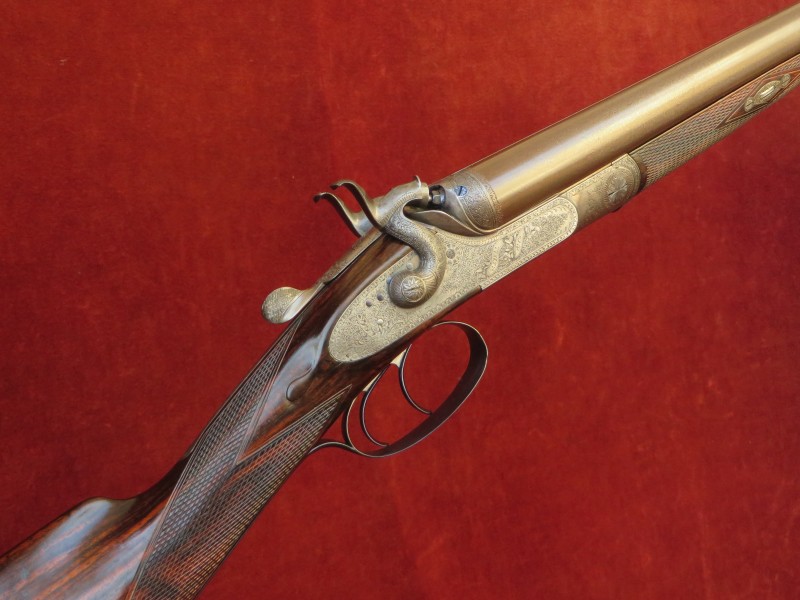

Bar action, rebounding
locks with high-level ‘Dolphin’ hammers;
Broad top lever operating a
rotating single bite bolt;
Long top strap; Wedge/cross-bolt forend
fastening.
The action can be opened when the right lock is cocked.
Gun weight 7lb.

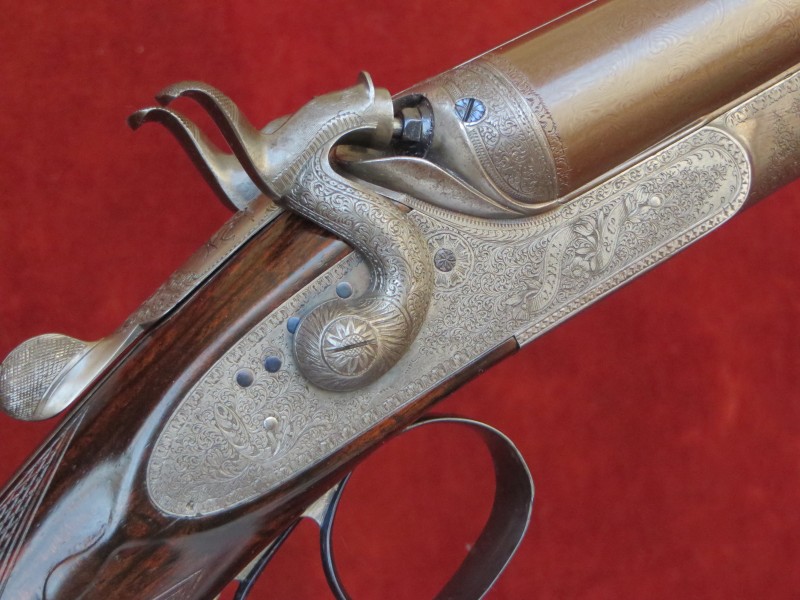

Engraving style Lavishly engraved with Bold Foliate Scroll.
Action bar and lockplates signed with ‘Maker’s name in scrolling
banners, on the bar surrounded by game birds and flowering thistles.
Cornucopia (Horn of Plenty) engraved on triggerguard.

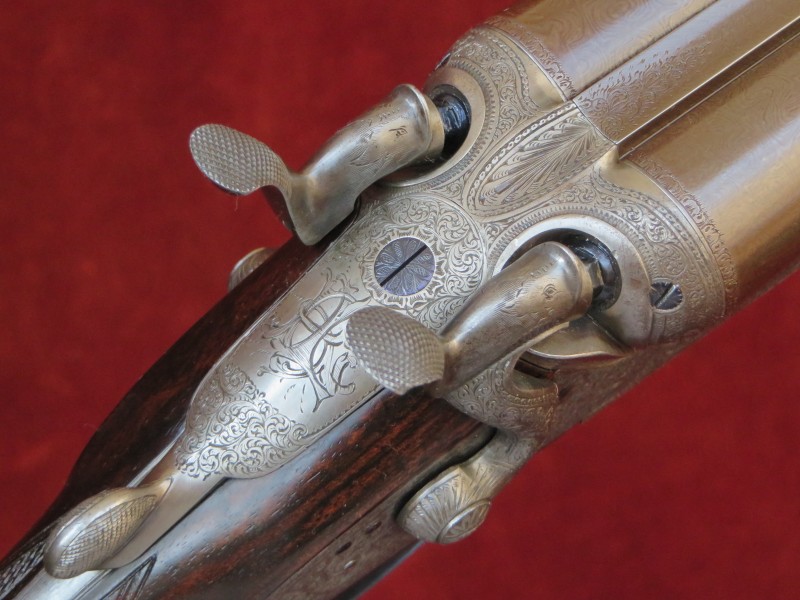

Top lever
engraved with stylised Maker’s initials in Gothic script.
Trigger
pulls measure approximately: Front trigger 3 ½ lbs Rear trigger 3 ½
lbs

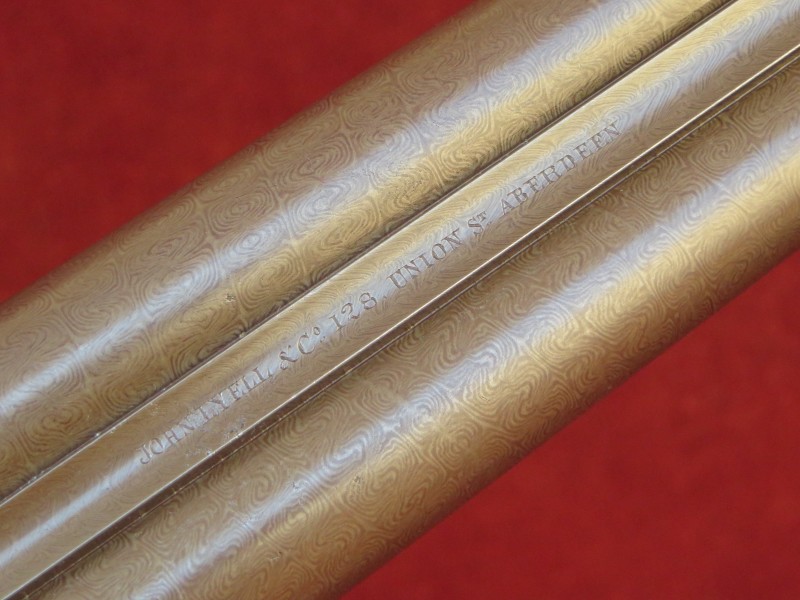

The rebrowned bold damascus steel barrels
are 30" in length, chambered for 2 ¾ ” (70mm) cartridges and are of
brazed 'dovetail' lump construction with soft soldered ribs.
Top rib is of the smooth,
concave, game type.
The bores are essentially clean but do show some
small marks.
Birmingham
re-proof for 65mm nitro cartridges in 2018.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9"
from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel
|
18.5mm (0.728")
|
0.729"
|
0.025+"
|
0.008" (IC)
|
Left Barrel
|
18.4mm (0.724")
|
0.728"
|
0.023+"
|
0.004" (Skeet)
|

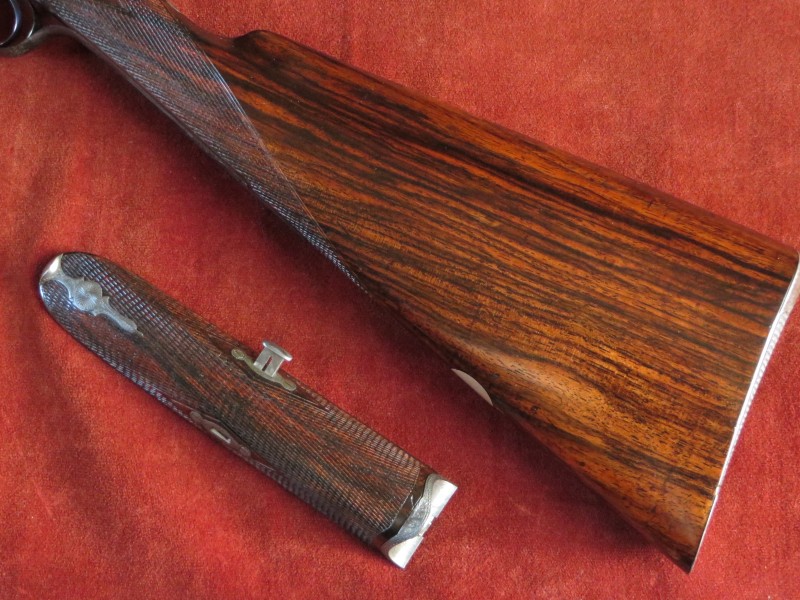

Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. The stock is lightly cast-off
for a right-handed shot, features a vacant white metal oval, well
defined drop points and is fitted with finely engraved heel & toe
plates secured with engraved screws.
The forend is fitted with a finely engraved steel tip.
The 18 lines per inch chequering
is freshened to the original pattern.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish
uses no grain fillers to achieve its deep, smooth lustre, only many
hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/4"
|
14 1/2"
|
14
1/2"
|
15"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 7/8"
|
2 5/16"
|
Cast-off at Comb
|
Cast-off at Heel
|
Negligible
|
3/16" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's
rebounding lock patent no. 367 of 1867,
Powell’s top lever
patent no.
1163 of 1864 (possibly).
