John
Manton & Son, Dover Street, London.
12 bore Black Powder Hammer Gun (converted from muzzle loader)
no. 12083
Year of manufacture: 1851, conversion pre-1896
Click on these images for more detail.
Heritage
Guns Comment
This gun is a well executed example of the conversion
of a high quality muzzle loading gun to centrefire breech loader,
a service offered by most gunmakers during the transition period
of 1850 to 1870. The original material was a best quality gun
by this famous gunmaking firm, established by the elder brother
of the even more famous Joseph Manton who was our gunmaker's apprentice.
Components from the original gun are the barrels, ribs and butt

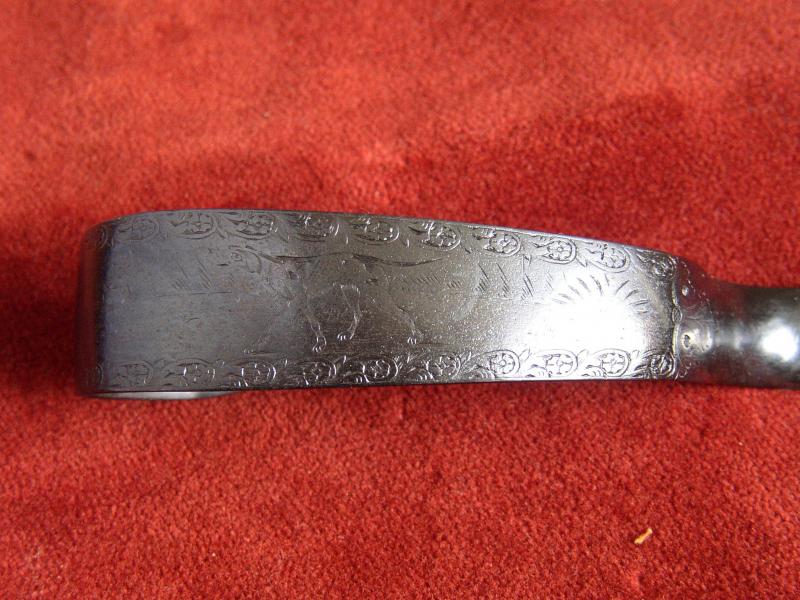

plate; most probably the stock and locks and possibly the triggerguard.
Great care has been taken to duplicate the engraving of bold scroll
and game scene on the action and, although the conversion is arguably
not of 'Best' quality, it has been sympathetically undertaken
by someone who knew their trade. The barrel conversion has been
done with 'Table Lumps', where the barrels are floated onto a
sculpted concave table/lump monoblock that wraps round the lower
third of the tubes, and the ram rod tubes have been replaced by
neat damascus inserts into the bottom rib. At some time the stock
has suffered some damage at the hand but a professional repair
has been carried out including an inlet bracing piece under the
trigger guard tang and the repair is virtually invisible once
the gun is assembled.
We would draw your attention to the fact that
this gun features Non Rebounding Locks and it should be used only
by those experienced in this type of lock and under controlled
circumstances.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

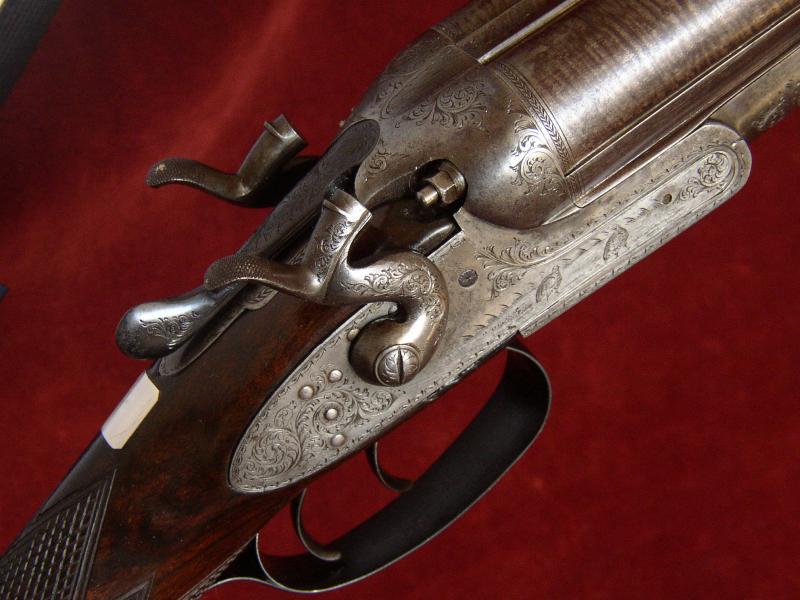

The Action is
a Conversion of Muzzle loader to Breech Loader and features:
Double triggers,
Greener's top lever operating a 'Purdey' type bolt,

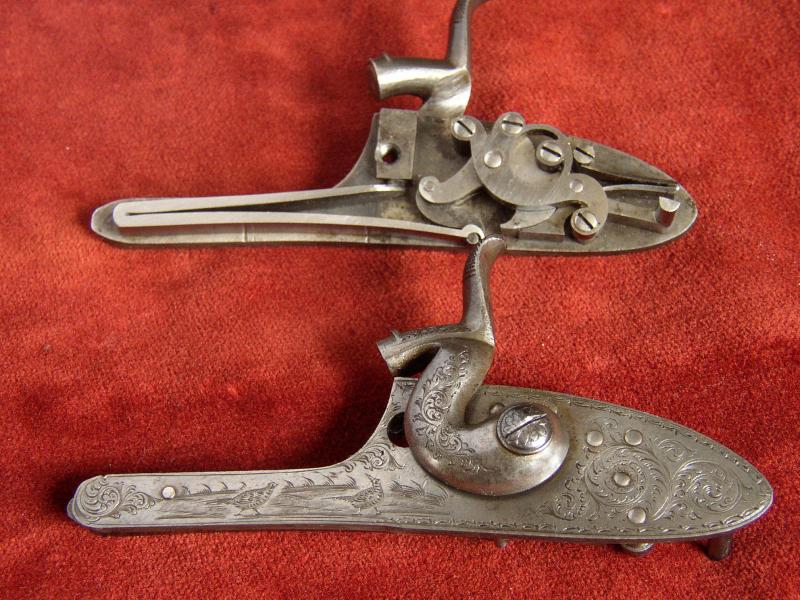

Bar-action locks,
Non-rebounding hammers,
'Suger-tongs' forend catch.
Gun Weight 7lb 5oz
Engraving Style Bold foliate and Game Scene.
Trigger Pulls have been adjusted for 'feel' rather that to any
particular pull weight but for the record they measure approximately:
Front trigger 5lbs Rear trigger 5lbs

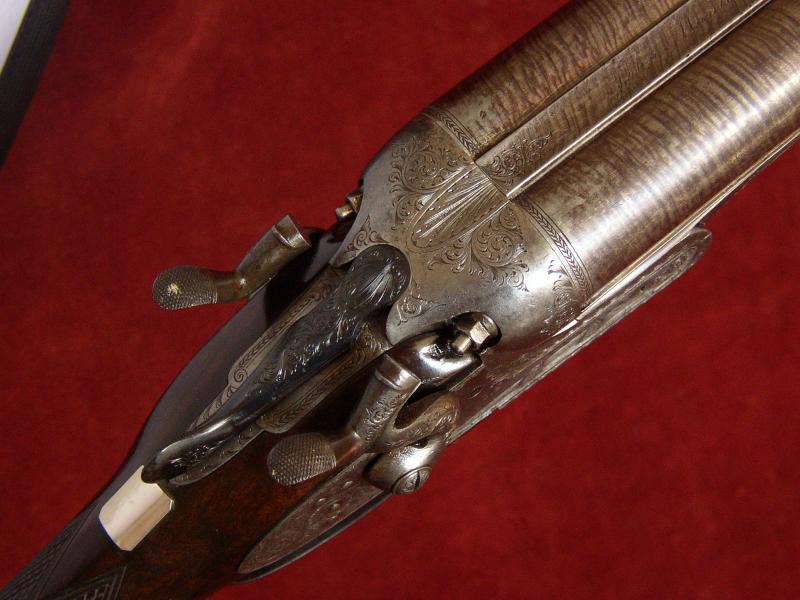

The original Twist
Laminated Steel Barrels are 28 3/4" in length, chambered for
2 1/2 " (65mm) cartridges and are of brazed 'table' lump construction
with soft soldered ribs. Top rib is of the smooth, concave, game type.
The bores display a very small amount of vestigial pitting.
London re-proof for 2 3/4" (70mm) nitro cartridges in 2006.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.733"
|
0.022" Minimum
|
0.008" (1/4)
|
Left Barrel |
18.6mm (0.732")
|
0.734"
|
0.025" Minimum
|
0.008" (1/4)
|

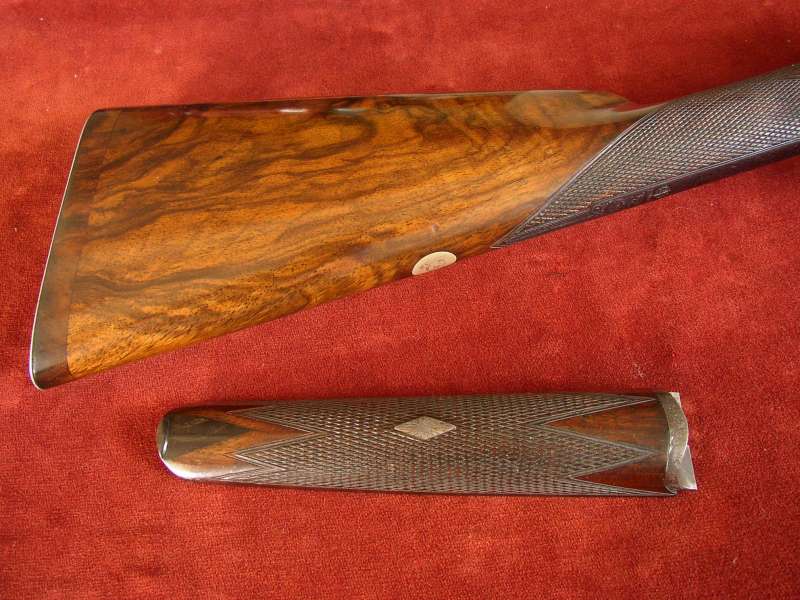

Straight Hand
Stock and Splinter Forend
are crafted from highly figured walnut. The stock is slightly cast on
for a left-handed shot and is finished with a 1/2" wood extension
and its original engraved butt plate. The forend has snap-on fastener
and a horn tip.
|
Highly figured walnut stock.
|
|
The 16 lines per inch
chequering to the normal sidelock design.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements (including pad) at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/4"
|
14 1/2"
|
14 7/16"
|
15"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 7/8"
|
2"
|
2 1/2"
|
Cast-on at Comb
|
Cast-on at Heel
|
1/8 (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey Bolt' patent no. 1104 of 1863,
Greener's patent no. 3090 of 1874.
