Theophilus Murcott, 68 Haymarket, London
'Mousetrap' 16 bore Bar Action Sidelock
no. 2446
Year of manufacture: 1861-78
Click on these images for more detail.
Heritage
Guns' Comment
This gun is a fine and rare example
of an historic design which looks so normal today but in its time
was truly ground breaking. It was the first commercially successful
hammerless shotgun and many of the features that we see in modern
double-barrelled guns are present here. Theophilus Murcott was
well known in his day for innovation and the quality of his work
and his gun's success was helped by copious advertising in the
sporting periodicals of the period and much editorial copy.
What particularly stands out with this example is not only the
amazing condition of the gun both internally and externally but
also the production modifications that were made to the original
forgings. Close examination will show that not only have the lockplates
have been extended at their upper front edge but the top tang,
presumably a 'fish tail' in the original, has been also extended
to give a long top tang.
This is a very rare opportunity to acquire such a fascinating
gun, not only in an unusual gauge size but also with fantastic
shootable dimensions.
WE REGRET THAT THIS GUN
IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT
US.
|
The action is of Murcott's own
design and features:
Double triggers;
Non-auto 'Swing' safety;

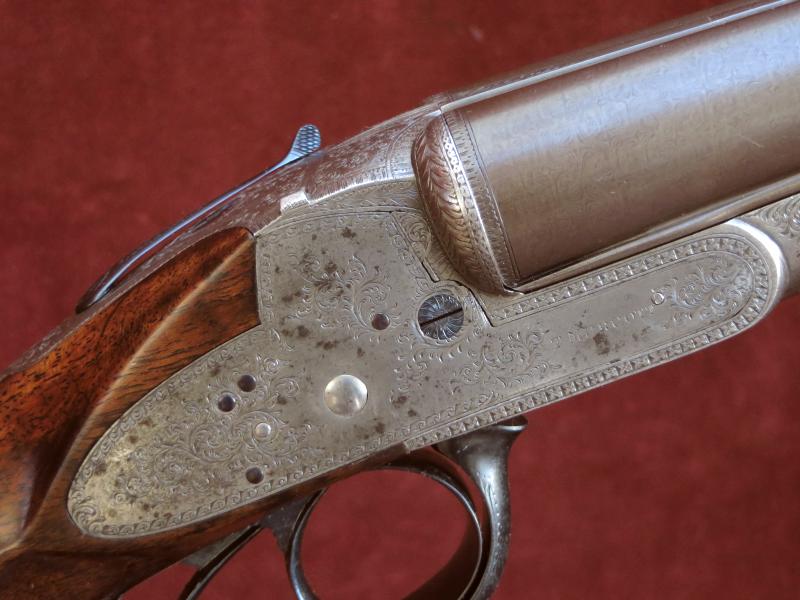

Bar action locks;
Long top strap;
Lever cocking;

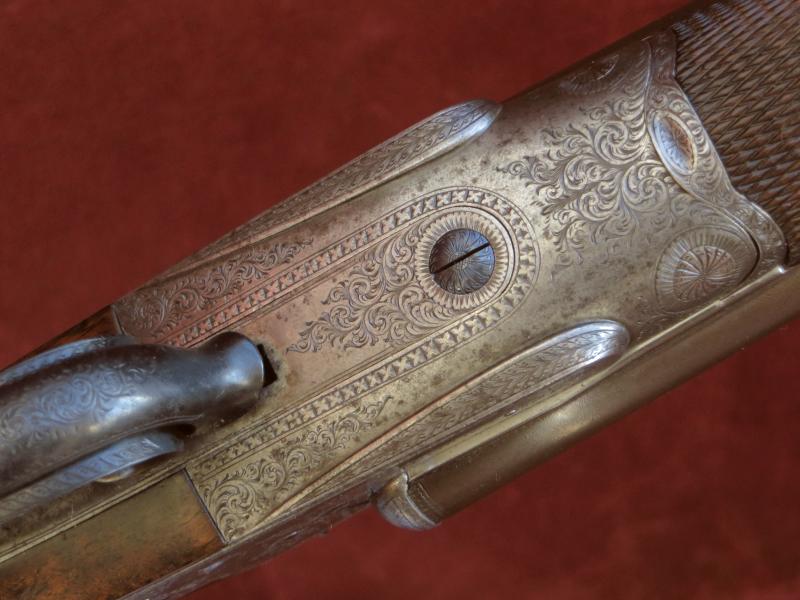

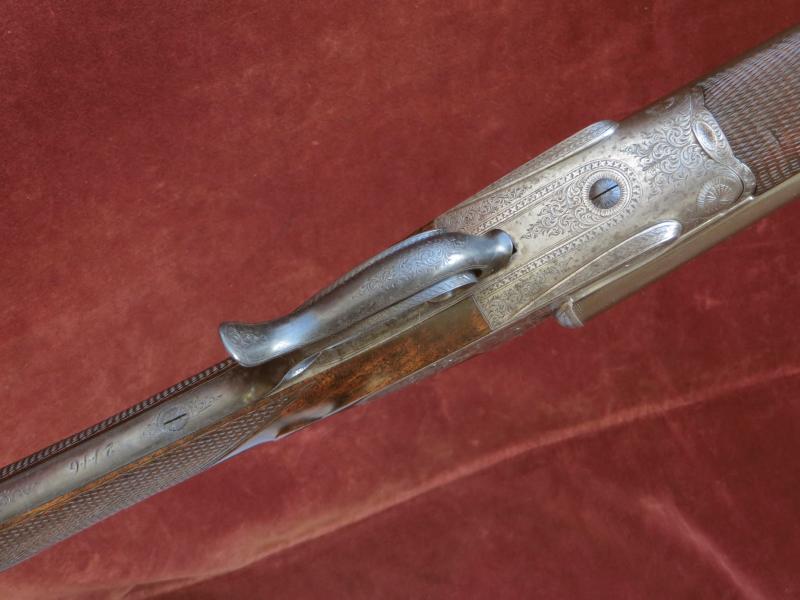

Snap under-lever, operating a modified 'Purdey' type bolt;
Cross bolt/Wedge forend fastening.

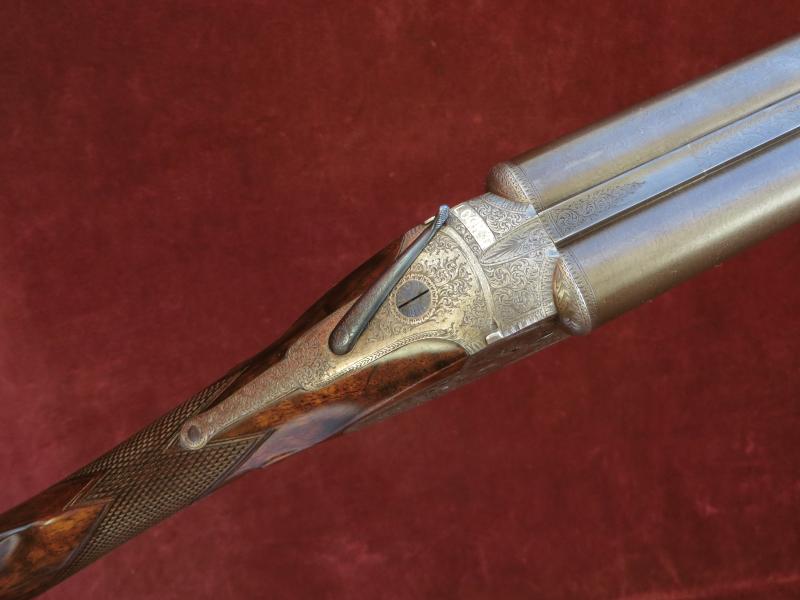

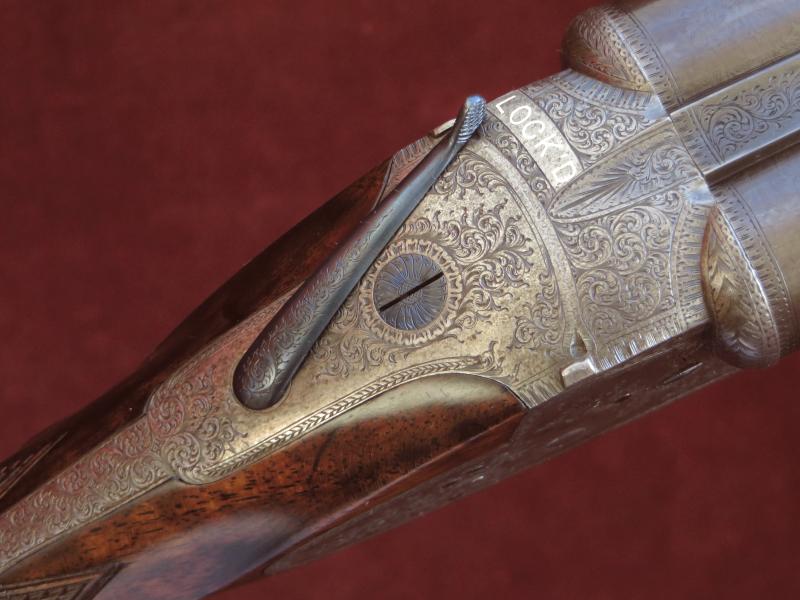

Engraving style Border and Bold Foliate Scroll. Gold 'LOCK'D'
inlaid on top of action. Action flats stamped with Murcott's 'Hammerless'
trade mark and patent Use No.
Gun weight 6lb 9 ½ oz
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 3 ¾ lbs
The re-browned, fine Damascus barrels are 30" in length,
chambered for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs.
Top rib is of the smooth, concave game type.
London reproof for 70mm nitro powder cartridges in 2013.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
17.2mm
(0.677")
|
0.679"
|
0.026"
|
Cyl
|
Left Barrel |
17.2mm
(0.677")
|
0.678+"
|
0.022"
(@ 8" from muzzle)
|
Cyl
|

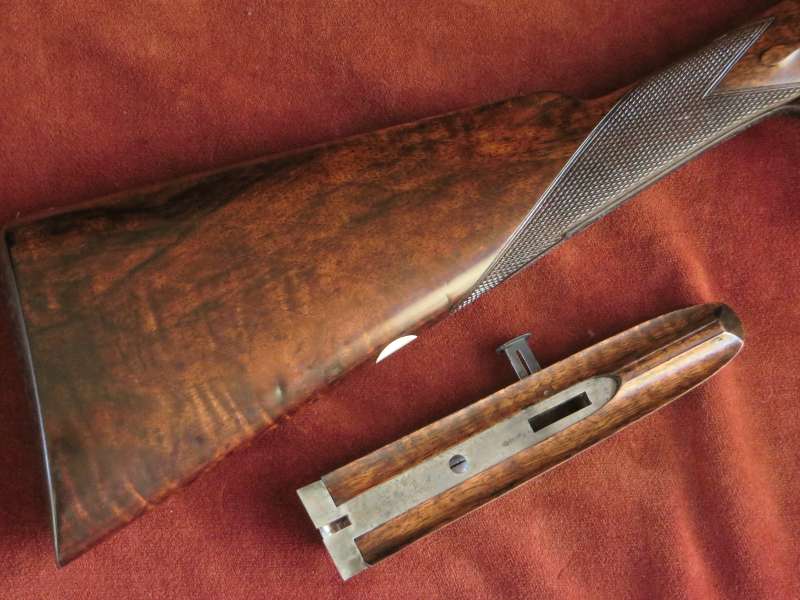

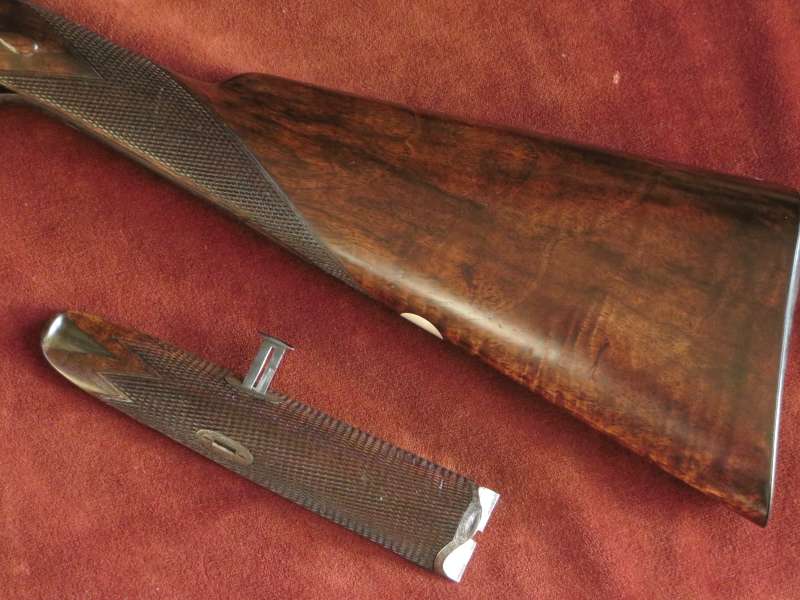

The Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut and the stock-cast is very nearly
neutral, features a vacant white metal oval, well defined drop points
and an engraved iron butt plate secured with engraved screws. There
is a small inlet repair to the front of the comb.
The forend is fitted with a horn tip.
The 16 lines per inch chequering is to the
normal sidelock pattern
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish
uses no grain fillers to achieve its deep, smooth lustre, only many
hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/8"
|
14 3/4"
|
14 3/4"
|
15 3/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 9/16"
|
1 3/4"
|
2 1/4"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
Negligible
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Murcott's hammerless patent no 103 of 1871.
