James Purdey & Sons, Audley House,
South Audley Street, London
12 bore Bar Action, Self-opening Sidelock Ejector
no. 11368
Date of manufacture: 1884
Click on these images for more detail.
Heritage
Guns' Comment
The Beesley patent self-opening
action as manufactured by Purdey needs no introduction. It has
become a by-word for very best quality gun design and gunmaking
throughout the world and has remained in production from its conception
in 1880 to the present day.
The gun we have here was made within the first 4 years of the
patent as a non-ejector and is in startlingly good condition for
its age which says a lot about the workmanship that went into
it. At some point it has been elegantly converted to ejector:
using Purdey's normal method of tripping, a rod keyed to the tumblers
and sliding in a hole bored through the action bar. However, the
ejector mechanism itself is mechanically the same as a Deeley
or Perkes box, not the over-centre mechanism of the standard Purdey.
Given the high standard of the conversion, there is nothing to
choose between them. The replacement stock and forend may have
been done at the same time as the ejector conversion and a lovely,
highly figured piece of walnut was utilised. There is a little
corrosion on the lock plates which has been cleaned and treated
but nothing that threatens the integrity of the gun.
It is very rare to find a true antique Purdey self-opener in such
fine condition and with its freshly TIG sleeved barrels, it will
make a fabulous gun for either targets or game.
WE REGRET THAT THIS GUN IS NOW
SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT
US.
|
The Action is of Beesley's self-opening
SLE design and features:

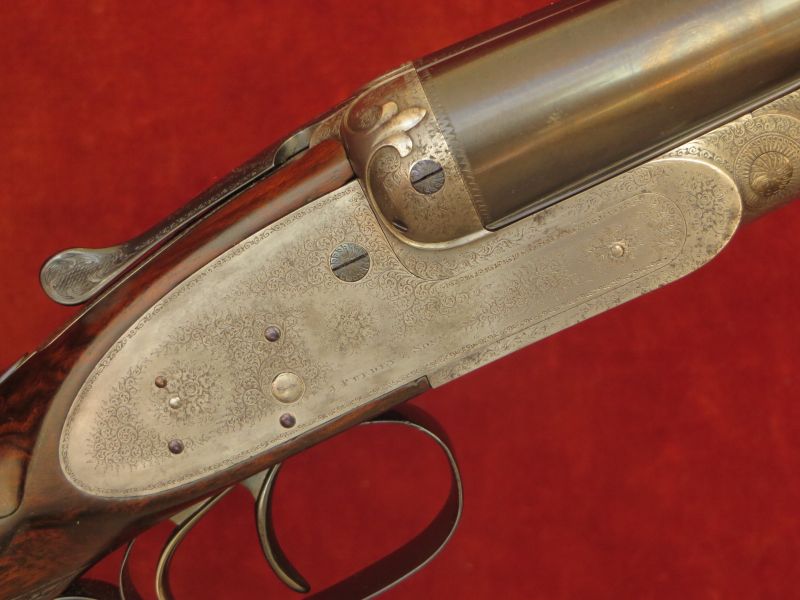

Bar action locks with arrow cocking indicators,
Sprung disc-set strikers, Vented disc retainers with further vented
pins,

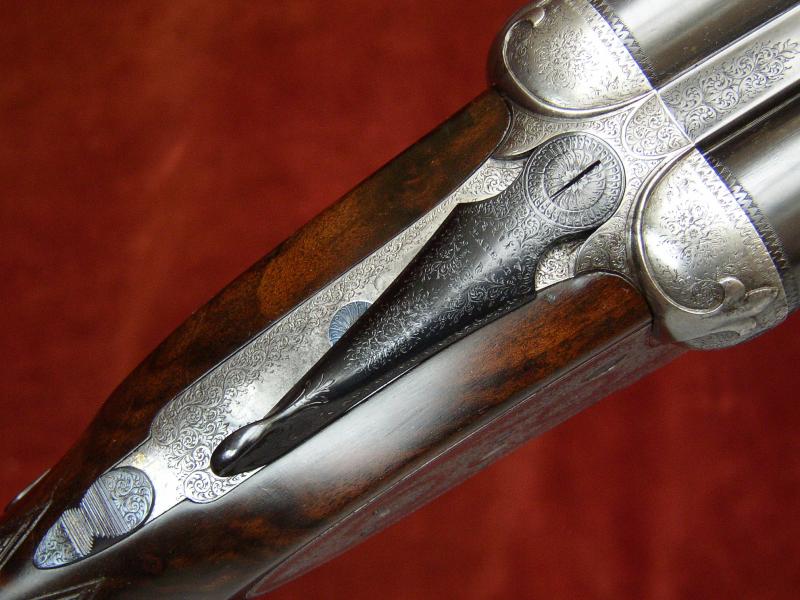

Top lever operating a Purdey Bolt by way of a Scott Spindle,
Double triggers bolted by an automatic top tang safety slide,
Deeley style ejectors tripped by rods sliding in the bar of action
and Anson's push rod forend catch.
Gun weight 6lb 8oz

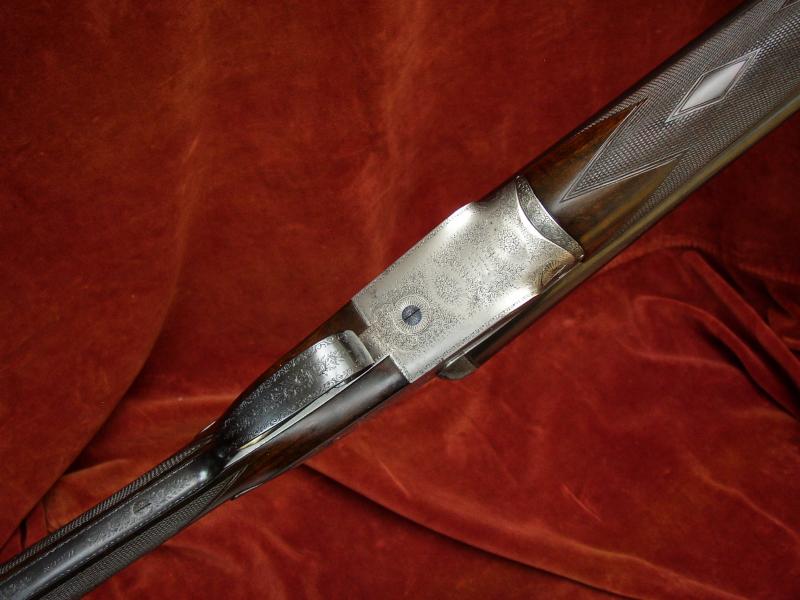

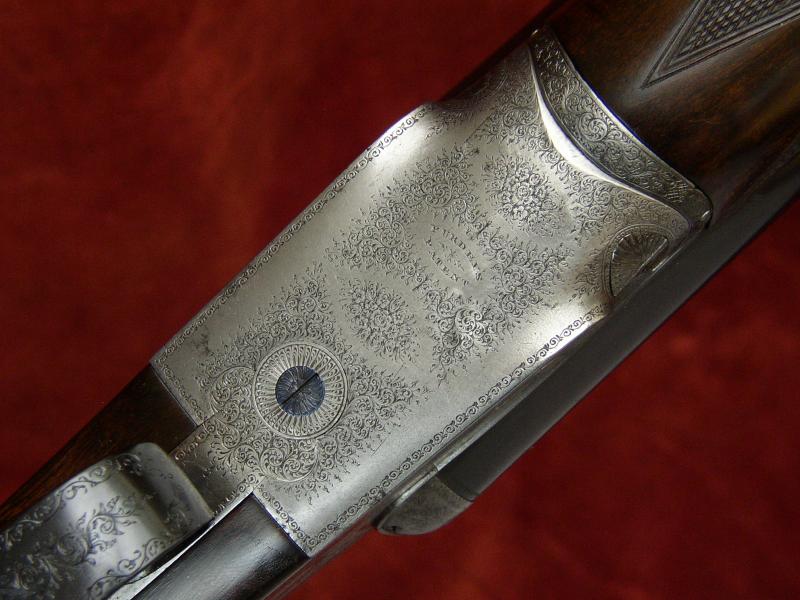

Engraving style Very Best Rose & Scroll. Ball fences with
deeply chiselled 'Fleur-de-Lys'. Underside of bar engraved 'PURDEY PATENT',
toplever engraved 'PATENT'. Gold 'SAFE'
Trigger pulls measure approximately: Front trigger 3 1/2 lbs
Rear trigger 4 lbs
The TIG sleeved steel barrels are 28" in length, chambered
for 2 3/4" (70mm) cartridges and are of brazed dovetail lump construction
with soft soldered ribs.

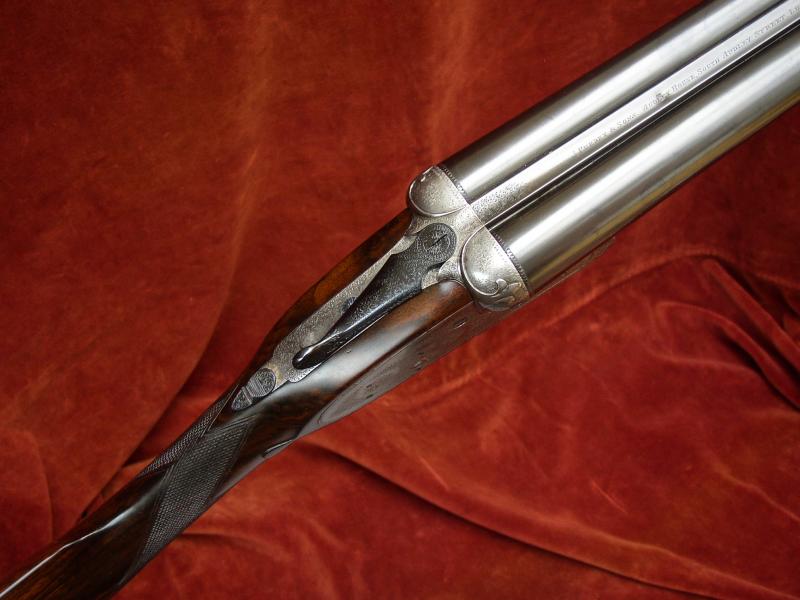

Top rib is of the smooth, concave game
type.
London reproof for 70mm nitro powder cartridges in 2013.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.5mm
(0.728")
|
0.727"
|
0.028"
|
0.006" (IC)
|
Left Barrel |
18.5mm
(0.728")
|
0.728"
|
0.030"
|
0.022" (Mod)
|

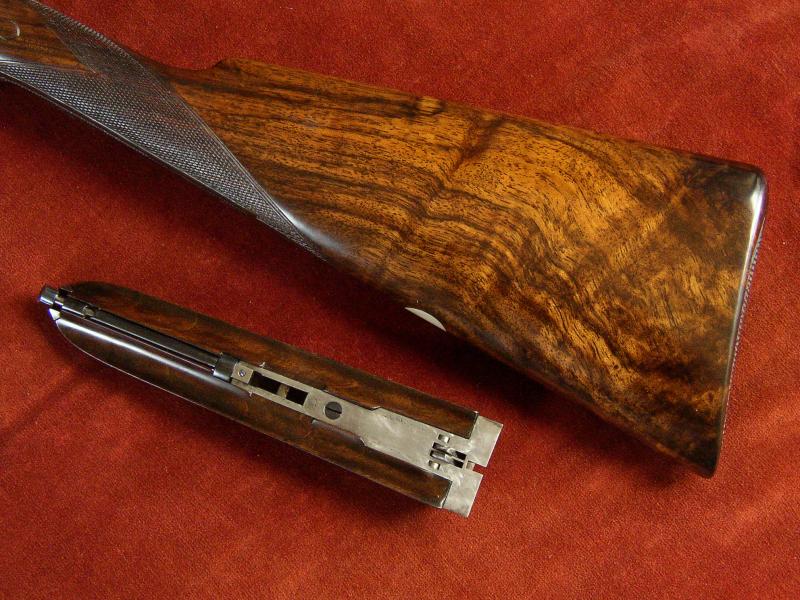

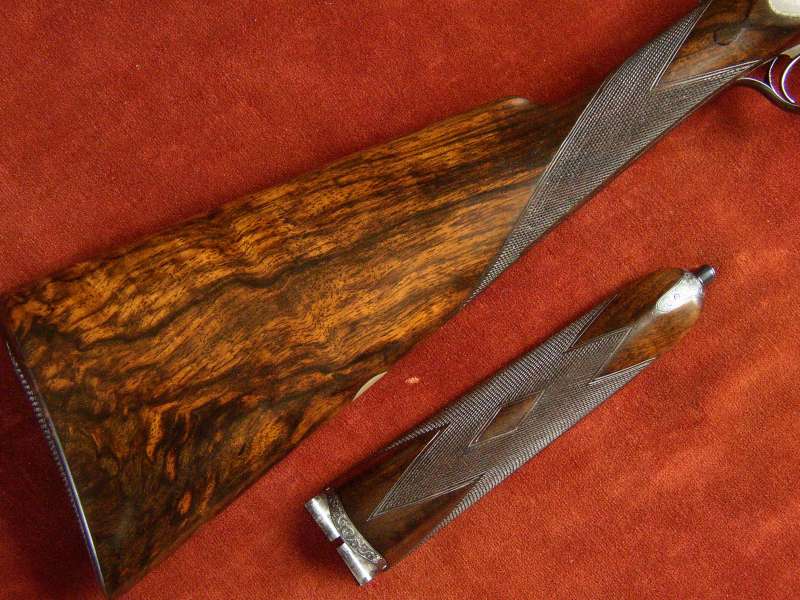

The replacement Straight Hand Stock and Splinter
Forend are crafted from highly figured walnut. The stock is cast-off
for a right-handed shot, features a vacant white metal oval, well-defined
drop points and is finished with a chequered butt. The forend features
a finely engraved steel forend tip.
The 22 lines per inch chequering is to the
normal sidelock pattern
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish
uses no grain fillers to achieve its deep, smooth lustre, only many
hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/4"
|
14 1/2"
|
14 1/2"
|
14 7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 9/16"
|
1 11/16"
|
2 1/4"
|
Cast at Comb
|
Cast at Heel
|
1/8" Approximate
|
1/4" Approximate
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Beesley's self opening patent no. 21 of 1880;
'Purdey Bolt' patent no. 1104 of 1863;
'Scott Spindle' patent no. 2752 of 1865;
Perkes' ejector patent no 12176 of 1887
Anson's forend fastener patent no. 3791 of 1872.
