AJ Russell, 15 Mill Street, Maidstone,
Kent, England
12 bore Box Lock Ejector
no. 29701
Date of manufacture: circa-1890
Click on these images for more detail.
Heritage
Guns' Comment
AJ Russell was more of a sporting
goods retailer than a gunmaker, which makes the unique specification
of this gun so fascinating.
Grip safeties were a feature of the muzzle loading era and only
just made it into the very early beach loading hammerguns so an
example on an Anson & Deeley boxlock is extraordinary. Furthermore,
this is not a conversion as the gun shows no sign of ever having
had a more normal safety catch mechanism.

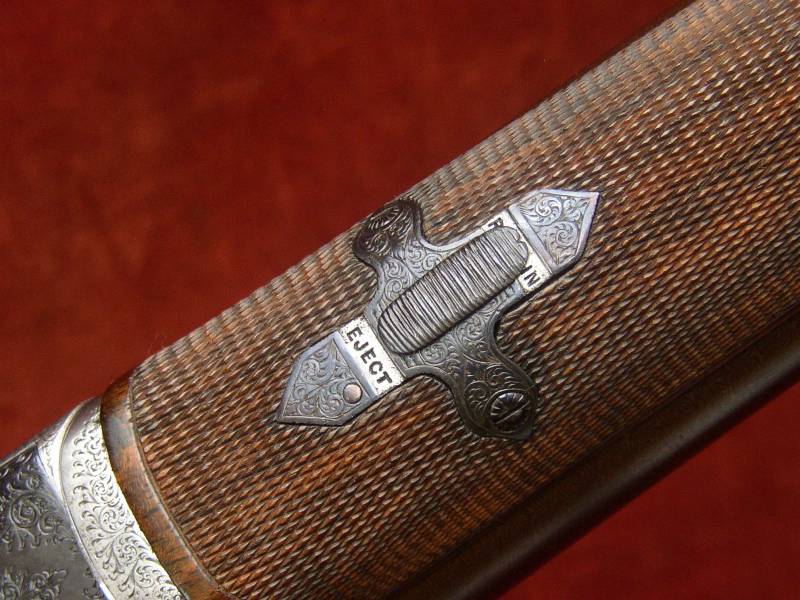

The second unusual feature is the selective ejector. Used in conjunction
with a Deeley ejector box, it is a simple slide that locks the
ejector tumblers, albeit set in a rather cute, engraved fitting.
Sadly the detent on the catch is not strong enough to remain in
'RETAIN' mode under heavier recoil and returns to 'EJECT' mode
unless light recoiling cartridges are used. 'RETAIN' can of
course be selected after firing but before opening.
Lastly, the gun is 'Grouse' choked, i.e. the tighter choke is
in the RH barrel, more open in the LH. This is rarely seen and
suggests its primary purpose was for driven game.

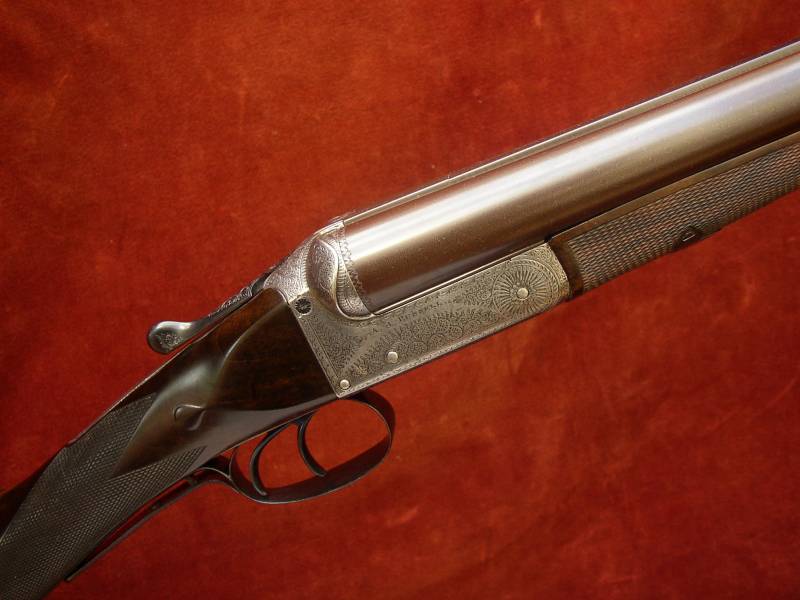

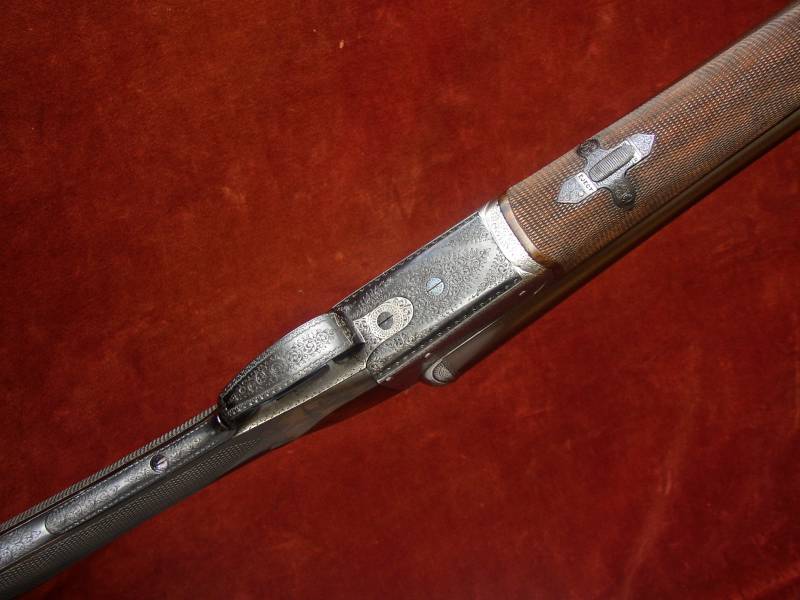

This otherwise 'normal' A&D boxlock action is profusely covered
with fine border, scroll and foliate detail and this coupled with
the interceptor sears, excellent barrel measurements and sensitive
restoration makes it a pretty and interesting gun for either game
or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|
The action is of Anson &
Deeley design and features:
Double triggers bolted by grip safety,
Interceptor sears,
Top lever operating a 'Purdey Bolt' by way of a 'Scott Spindle' and
a Greener style cross bolt,
Selective Deeley ejectors tripped by slides running from the action
knuckle to the main springs,
Anson forend catch.
Gun weight 6lb 8oz

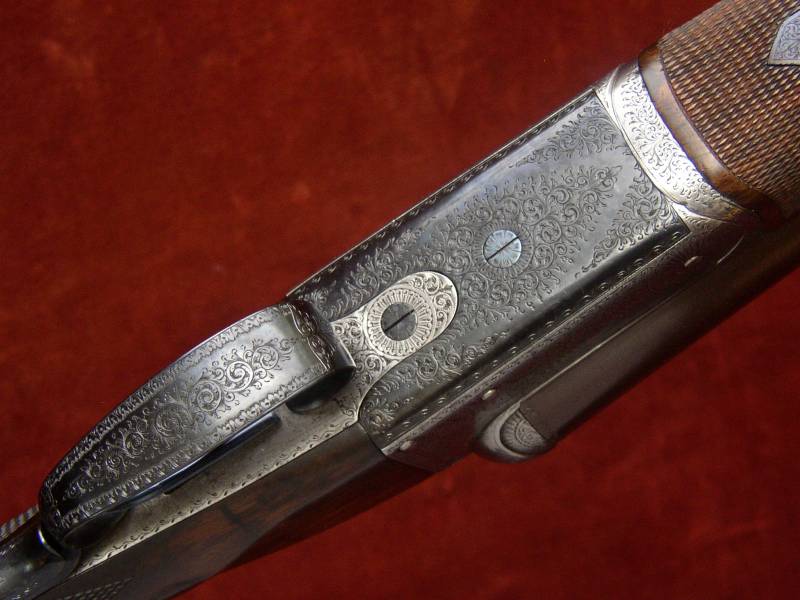

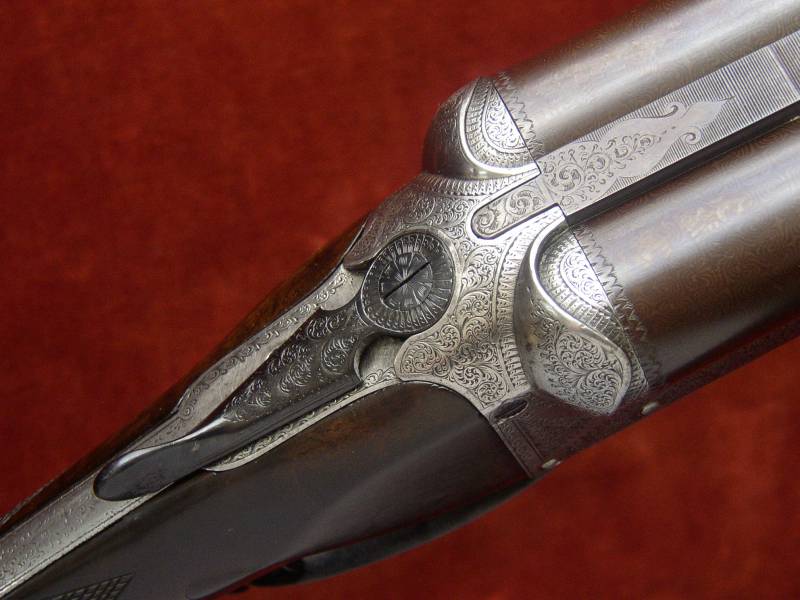

Engraving style Best border and foliate scroll with 'Fluted'
fences.
Trigger pulls measure approximately: Front trigger 4 lbs Rear
trigger 4 1/2lbs

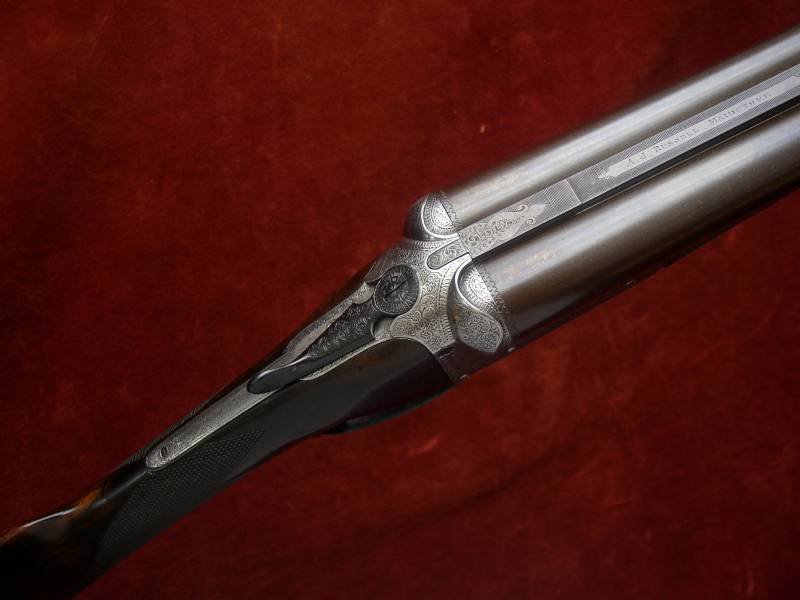

The damascus barrels are 30" in length, chambered for 2
¾" (70mm) cartridges and are of brazed 'dovetail' lump construction
with soft soldered ribs.
Top rib is a flat, file cut style.
London reproof for 70mm nitro powder cartridges in 2012.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.8mm
(0.740")
|
0.740"
|
0.026"
|
0.018" (Mod)
|
Left Barrel |
18.8mm
(0.740")
|
0.741"
|
0.022"
|
0.006" (IC)
|

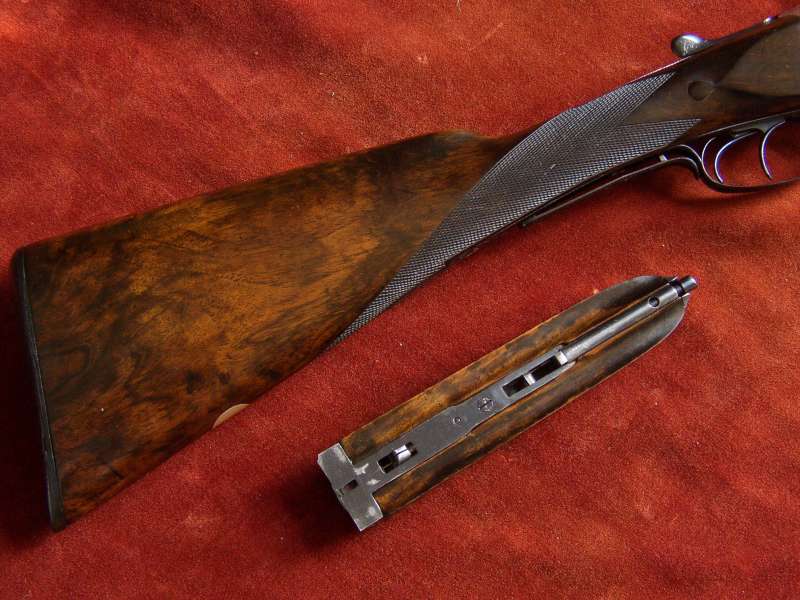

Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. The stock is lightly cast
off for a right-handed shot, features a vacant white metal oval
and is finished with a horn butt plate secured with engraved screws.
The forend is fully chequered with the ejector selector slide mounted
centrally.
The 22 lines per inch chequering is to the
normal boxlock design with well defined drop points.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish
uses no grain fillers to achieve its deep, smooth lustre, only many
hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
13 7/8"
|
14 1/8"
|
14 1/8"
|
14 3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 9/16"
|
1 13/16"
|
2 5/8"
|
Cast at Comb (Off)
|
Cast at Heel (Off)
|
1/16" (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Anson & Deeley's boxlock patent no. 1756 of 1875,
Greener's cross bolt top extension patent no. 3090 of 1874,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Anson's interceptor sear patent no. 4089 of 1882,
Deeley's ejectors patent no. 4289 of 1886,
Anson's forend fastener patent no. 3791 of 1872.
