Alfred
Sanders, 79 Bank Street, Maidstone,
Kent
12 bore Box Lock Ejector
no. 1361
Approximate date of manufacture: Circa 1930

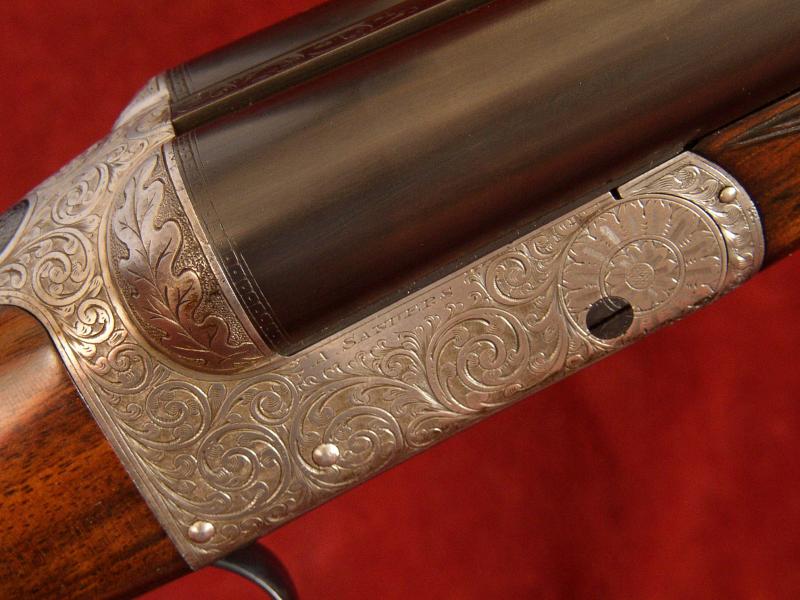

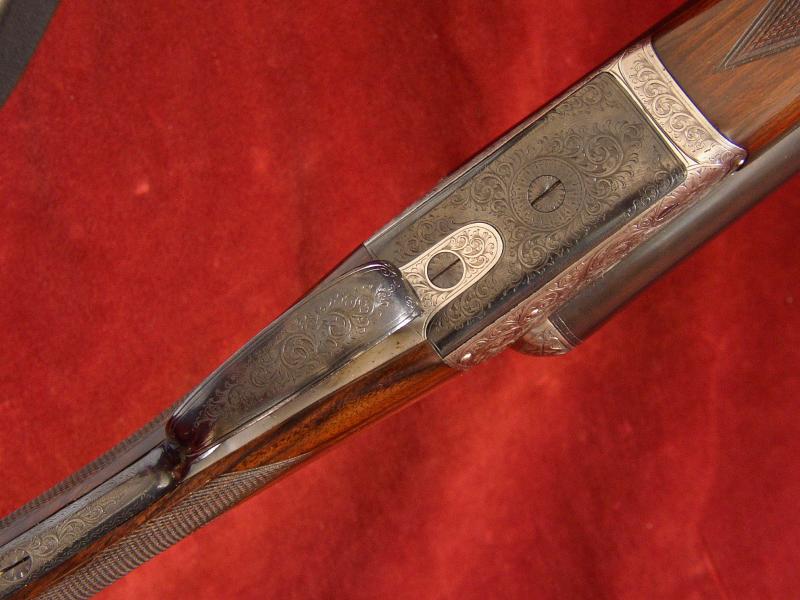

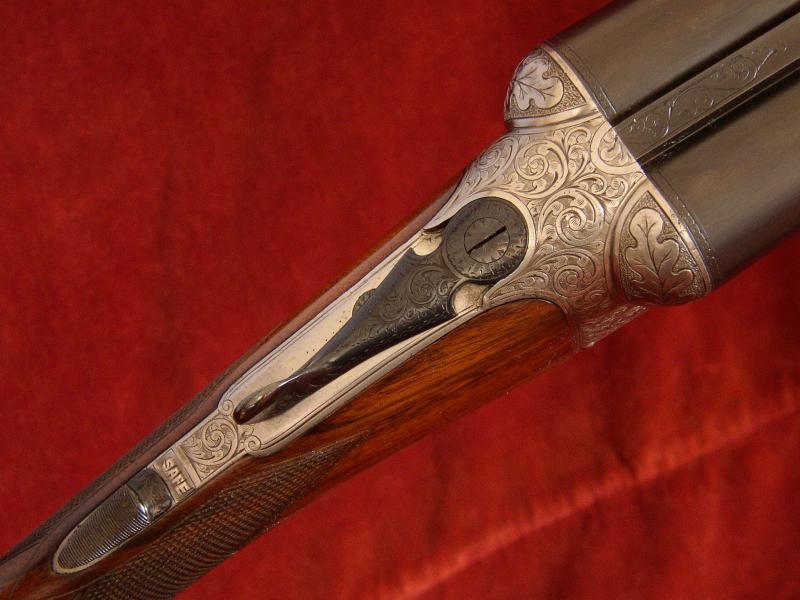

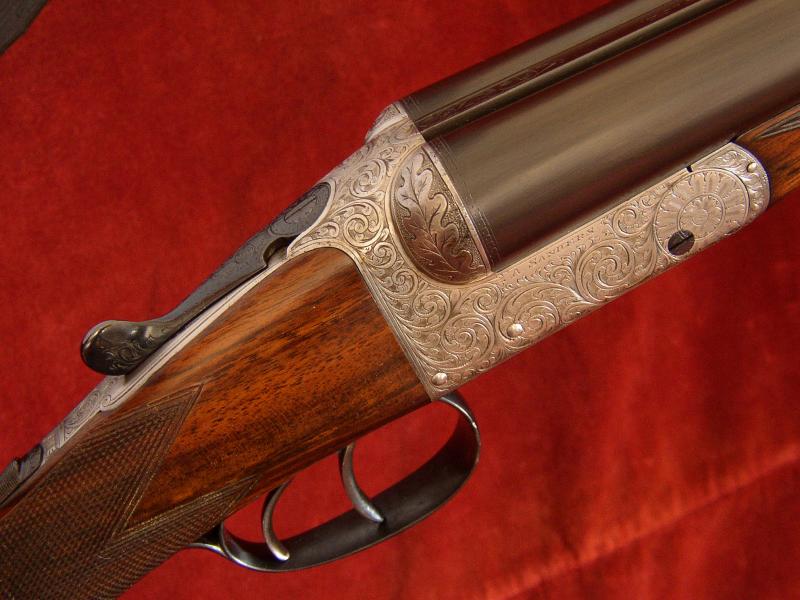

Click on these images for more detail.
Heritage
Guns Comment
This gun is a finely finished example of the Anson
& Deeley boxlock that had become such a hugely successful
design by the last decade of the 19th Century and is still made
in great numbers today. The action is profusely covered with very
bold foliate scroll with chiseled oak leaves on the 'ball' fences.
Interestingly, at about the time that this gun was made, the managing
director of Alfred Sanders was J H Fraser, the son of Daniel Fraser
the famous Edinburgh gunmaker, which maybe explains the exuberant
engraving on this provincial 'maker's gun. Coupled with our sensitive
restoration, its fabulous condition makes this boxlock ejector
very pretty and 'shootable' for either game or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|
The Action
is of Anson & Deeley design and features:
Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt',
'Southgate' or 'Over Centre' ejectors triped by cocking dogs.
Gun Weight 6lb 6oz
Engraving Style Very bold foliate with oak leaves on fences.
As is our custom, Trigger Pulls have been adjusted for 'feel'
rather that to any particular pull weight but for the record they
measure approximately: Front trigger 4 1/2lbs Rear trigger 5 1/2lbs
The original Steel Barrels
are 28" in length, chambered for 2 ¾" (70mm) cartridges
and are of brazed 'dovetail' lump construction with soft soldered ribs.
Top rib is of the smooth, concave, game type. The tubes are clean and
free of any pitting
London reproof for 70mm nitro powder cartridges in 2006.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.7mm (0.736")
|
0.738"
|
0.023" Minimum
|
0.007" (1/4)
|
Left Barrel |
18.8mm (0.740")
|
0.739"
|
0.021" Minimum
|
0.018" (1/2)
|
The replacement Straight Hand
Stock and Splinter Forend
are crafted from well figured walnut. The stock is slightly cast off
for a right-handed shot and is finished with a traditional chequered
butt.
|
Well figured replacement walnut
stock.
|
|
The 22 lines per inch
chequering freshened to the normal
boxlock design .
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/8"
|
14 1/2"
|
14 3/8"
|
14 7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 3/4"
|
2 1/4"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
3/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Southgate' ejectors patent no. 12314 of 1889,
Anson & Deeley's boxlock patent no. 1756 of
1875,
'Purdey Bolt' patent no. 1104 of 1863,
Anson's forend fastener patent no. 3791 of 1872
