J & W Tolley, 1 Conduit Street, Regent Street, London.
16 bore Bar-action Hammergun
No. 6404
Year of manufacture: 1875-87
Click on these images for more detail.
Heritage
Guns' Comment
James and William Tolley started
in business under their own names around 1859 and became one of
the major Birmingham gun manufacturers, producing all qualities
of gun for the domestic and export trade. It must be said that
they primarily catered to the lower end of the price spectrum
but they were certainly capable of producing high quality guns
when there was a market. This 16b hammergun most definitely falls
into the latter category.
Unfortunately, when we took this gun in for restoration, the hammers
had been radically shortened, probably with a hack saw. With careful
laser welding we managed to restore them to their original size
and shape, engraved and properly case hardened to match the rest
of the lock patina. The barrels feature the original recess choke
borings as indicated by the use of 'CHOKE', instead of 'NOT FOR
BALL', after the bore/muzzle measurements.
With the engraving still crisp on the locks and action, a nicely
figured original stock and damascus barrels, this gun would make
a very attractive gun for clays or game.
WE
REGRET THAT THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR
GUN, PLEASE CONTACT US.
|
The action is of traditional
design and features:
Double triggers;

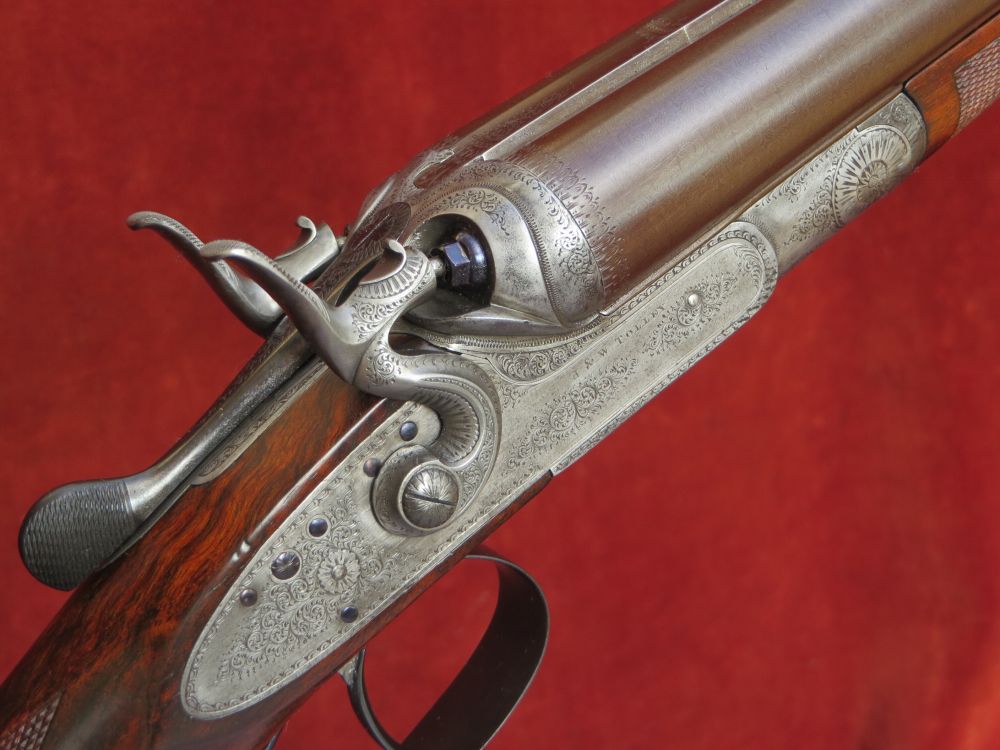

Stanton's patent, bar-action, rebounding locks;

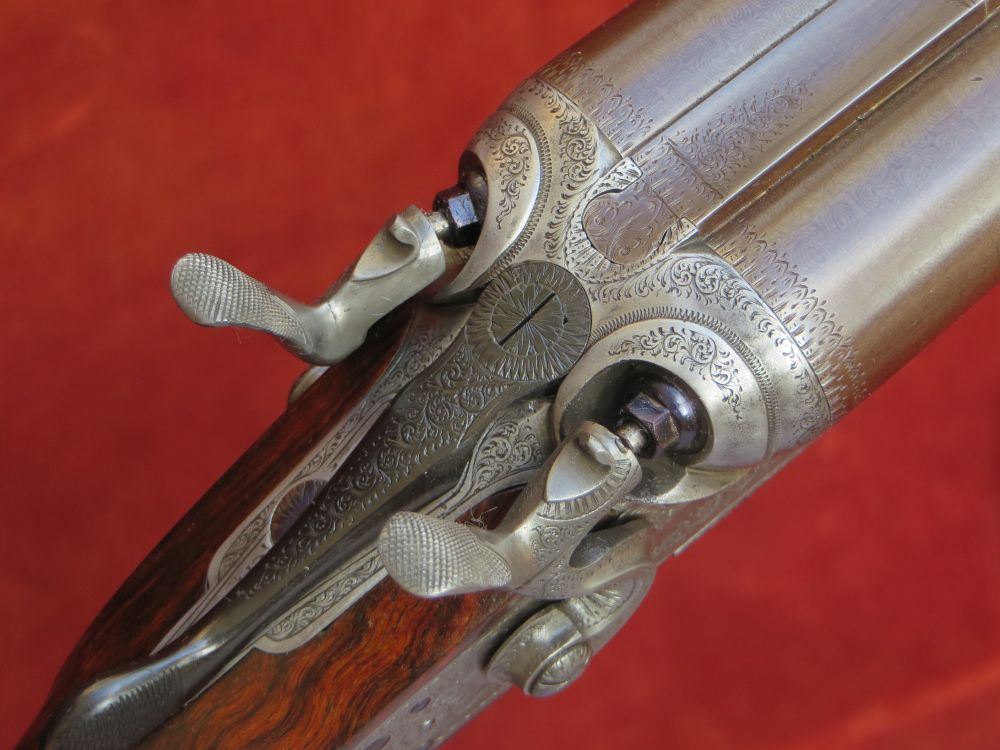

Medium level, 'Hare's Ears' hammers;
Sprung strikers; Percussion fences;
Top lever operating a 'Purdey Bolt' by way of a 'Scott Spindle;
Passive 'Dolls Head' top extension;
Deeley's forend fastener.

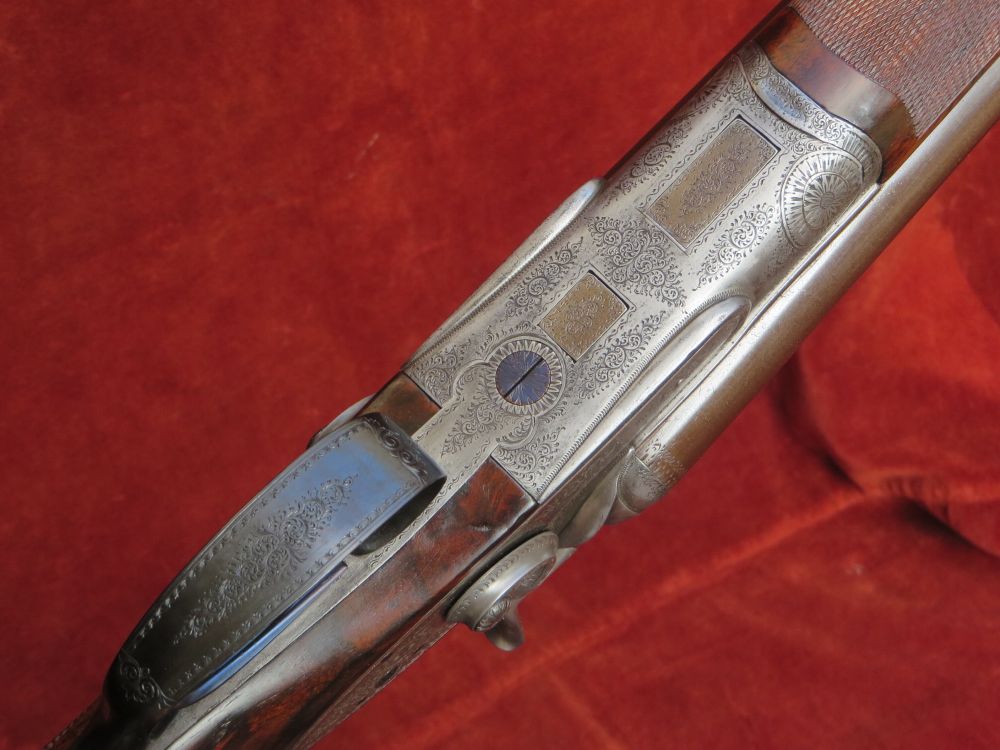

Engraving style: Nicely executed, fine foliate scroll. Barrel
short rib stamped 'J&W.T'.
Gun weight 6lb
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 4 ¼ lbs
The damascus barrels are 30" in length, chambered for 2
¾ " (70mm) cartridges and are of brazed 'dovetail' lump
construction with soft soldered ribs. The gun features original recess
chokes, as indicated by the word 'CHOKE' in the pre-1887 proof marks
instead of 'NOT FOR BALL'.

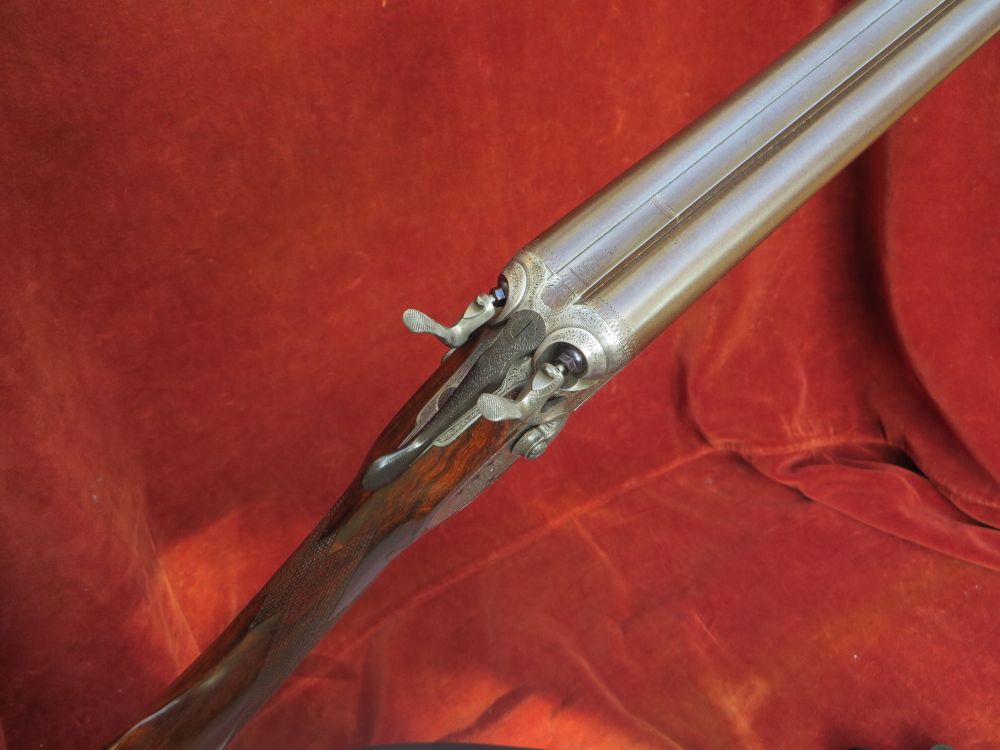

Top rib is of the smooth, concave, game type.
There are a few small surface marks in the otherwise bright, clean bores.
Birmingham reproof for 70mm nitro powder cartridges in 2016.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
16.7mm (0.657")
|
0.658"
|
0.027"
|
0.012" (Original
Recess Choke)
|
Left Barrel |
16.9mm (0.665")
|
0.663"
|
0.030"
|
0.015" (Original
Recess Choke)
|

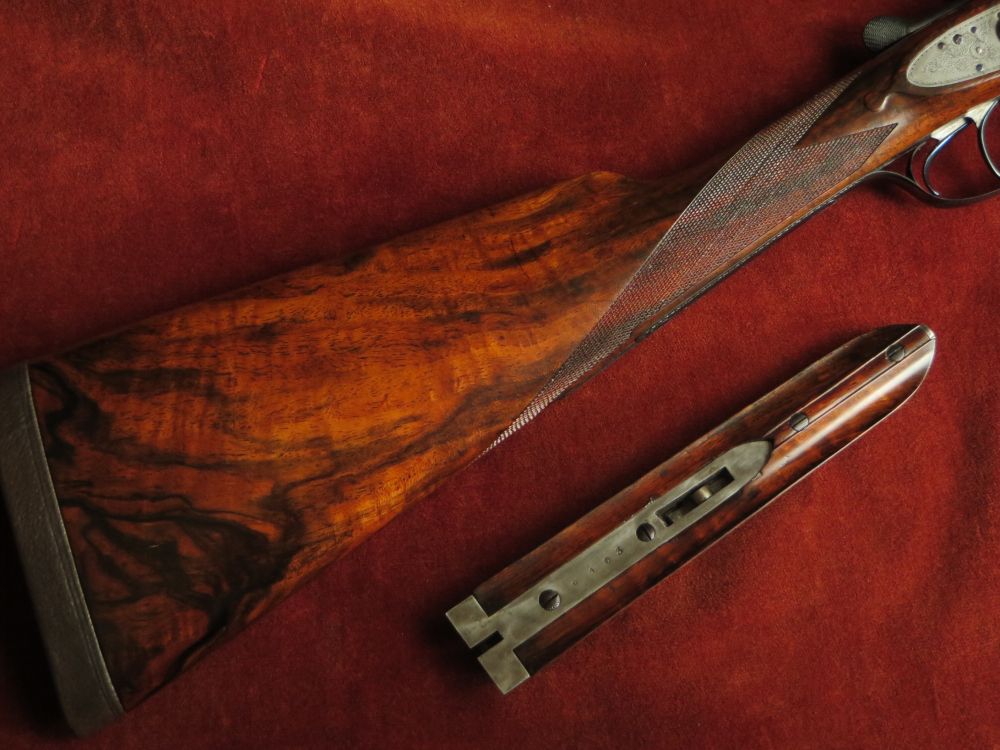

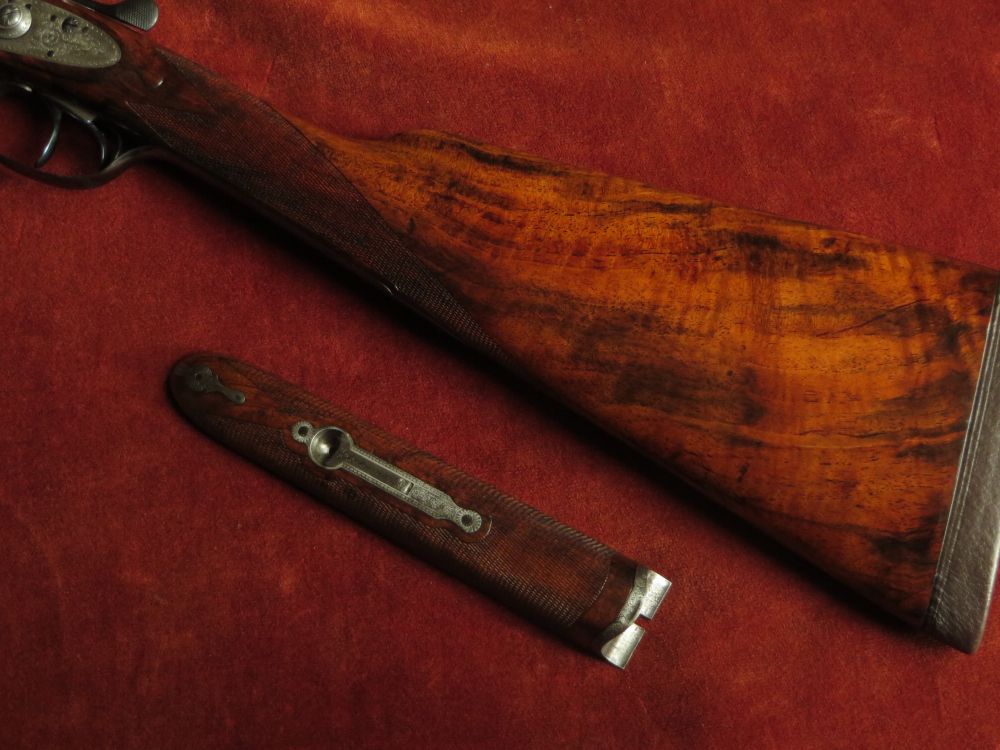

Straight Hand Stock and original Splinter Forend
are crafted from highly figured walnut. The stock is cast-off
for a right-handed shot, features well defined drop points and is
finished with a ¾" traditional leather covered recoil
pad.

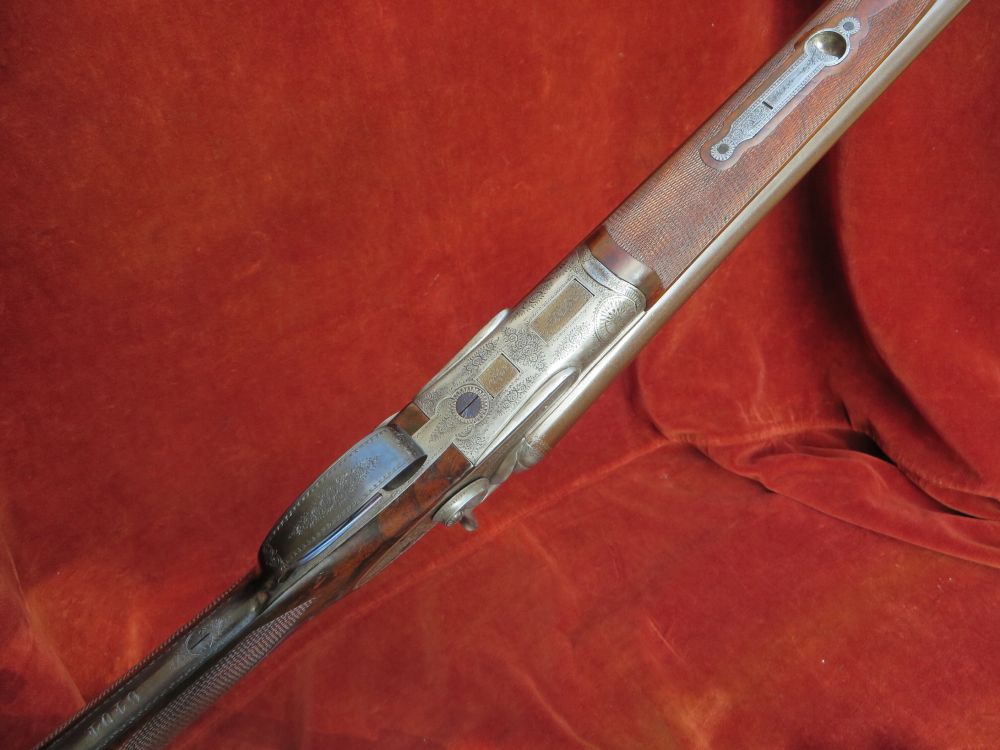

The forend features a finely engraved steel tip.
The 26 lines per inch chequering has been refreshed
to its original borderless design.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/2"
|
14 9/16"
|
14 5/8"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 7/8"
|
2 3/8"
|
Cast-off at Comb
|
Cast-off at Heel
|
1/16" (approximate)
|
3/16"
(approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey Bolt' patent no. 1104 of 1863;
Stanton's rebounding lock patent no. 367 of 1867;
'Scott Spindle' patent no. 2752 of 1865;
Deeley's forend fastener patent no 1422 of 1873.
