Henry Turner, High Street, Marlborough
12 bore Back Action Hammergun
no. 3953
Date of manufacture: 1868-1887
Click on these images for more detail.
Heritage
Guns' Comment
By the 1870's the centre fire hammergun
had become the standard shotgun design for all but the very poorest
or most conservative sportsman and even outside the major gunmaking
centres, it held sway.
This hammergun retailed by a little know provincial gunmaker and
engraver is a typical example of the guns that were produced in
their thousands in London and Birmingham for the domestic guntrade.
Very rarely do they demonstrate anything other than a slavish
adherence to the norms of the period. However, this gun somewhat
breaks the mould and possibly represent an unusual customer order
for something that he had seen or heard about.
Patented in 1877, the captive forend with its sprung catch is
a novel way round the three main existing designs, all of which
would have required the payment of a royalty to their inventors.
The patentees of this forend catch were none other than EW Wilkinson,
the owner of the Charles Osborne & Co name in Birmingham,
and CO Ellis who was Charles Osborne's grandson.
Its 29 ½ " damascus barrels have excellent measurements
and with its beautifully figured original wood, this gun is a
joy to hold and shoot and it will make a fabulous gun for either
targets or game.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

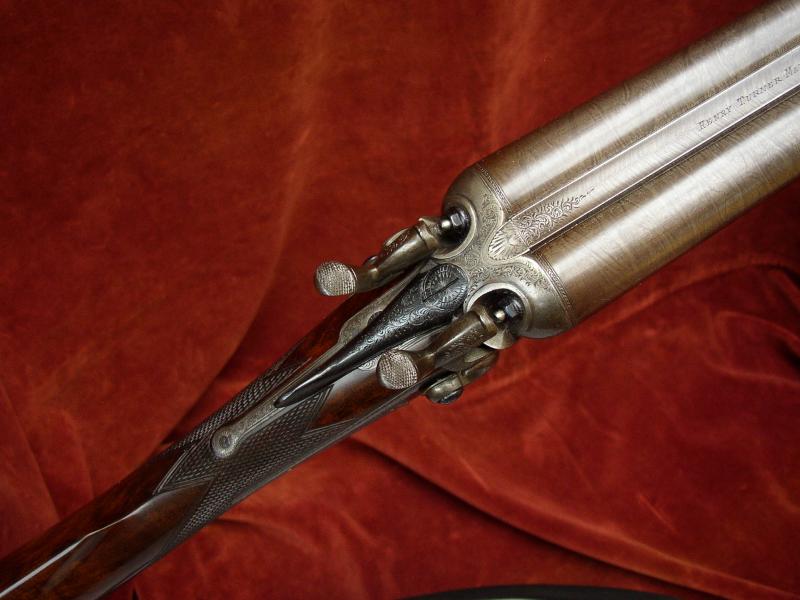

The Action is
of traditional back action sidelock design and features:

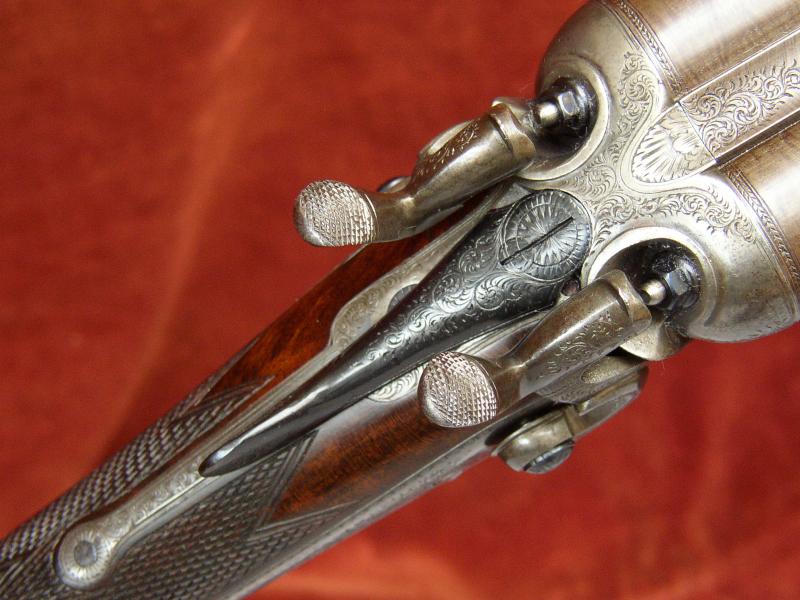

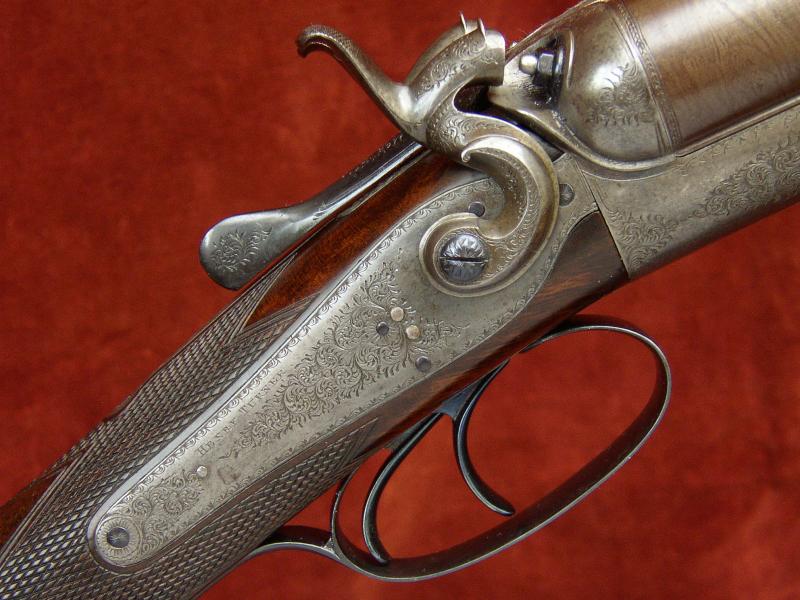

Rebounding back action locks with high 'C Scroll' hammers, Sprung strikers,
Top lever operating a Purdey Bolt by way of Hall lever work,
Long top strap, Double triggers

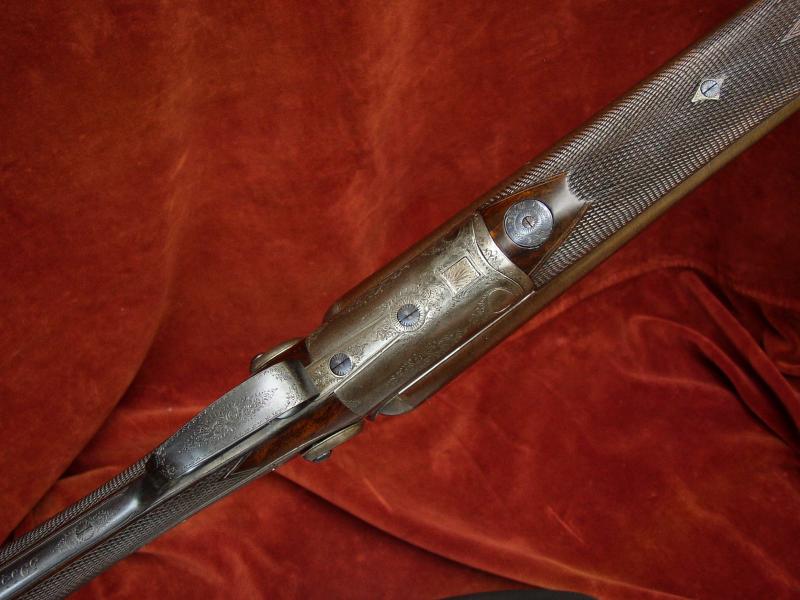

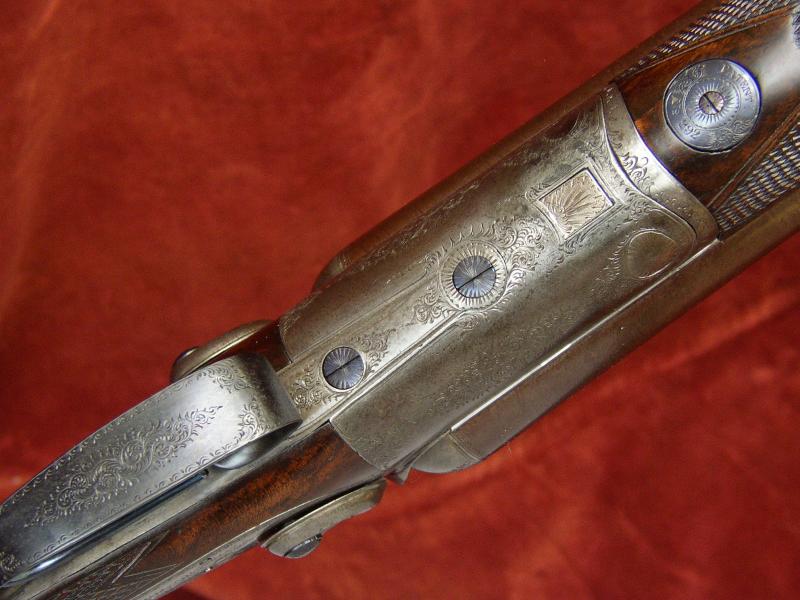

and Ellis & Wilkinson captive forend catch.
Gun weight 6lb 11oz
Engraving style Border & Foliate Scroll. Finely carved percussion
fences.
Trigger pulls measure approximately: Front trigger 4 lbs Rear
trigger 3 3/4 lbs
The original damascus barrels are 29 ½ " in length,
chambered for 2 3/4" (70mm) cartridges and are of brazed dovetail
lump construction with soft soldered ribs.
Top rib is of the smooth, concave game type.
Birmingham reproof for 70mm nitro powder cartridges in 2013.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.5mm
(0.728")
|
0.729"
|
0.021" MWT
(at 7" from muzzle)
|
0.002" (Skeet)
|
Left Barrel |
18.5mm
(0.728")
|
0.727"
|
0.022" MWT
(at 5" from muzzle)
|
0.003" (Skeet)
|

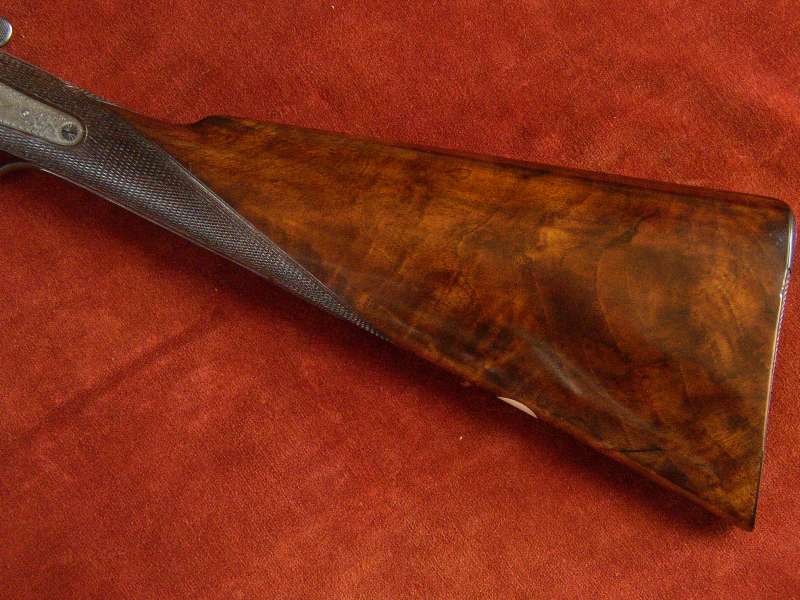

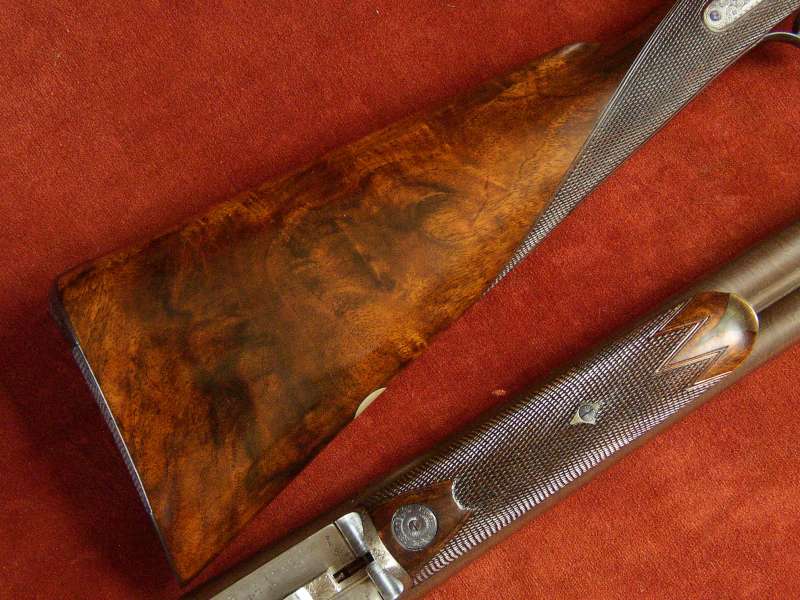

The Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. The stock is cast-off for a
right-handed shot, features a vacant white metal oval and is finished
with engraved heel and toe plates. The forend features an engraved steel
diamond, forend catch release disc engraved with the patent use number
and a carved horn tip. There are two inlets repairs to the forend edges
and another behind the release catch disc.
The 18lines per inch chequering is to the normal
sidelock pattern
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish
uses no grain fillers to achieve its deep, smooth lustre, only many
hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14"
|
14 1/4"
|
14 1/4"
|
14 3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 9/16"
|
1 3/4"
|
2"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
1/4" Approximate
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867;
J Hall's bolting patent no. 2396 of 1871;
'Purdey Bolt' patent no. 1104 of 1863;
Ellis & Wilkinson's forend fastener patent no. 292 of 1877.
