James Woodward & Sons, 64 St James's Street, London
12 bore Bar Action Sidelock Ejector
'The Automatic'
no. 4989 (No. 2 of a Pair)
Date of Manufacture: 1896
Click on these images for more detail.
Heritage
Guns' Comment
I have had the huge privilege to work on several of these Woodward
‘Automatic’ sidelock ejectors and have always been impressed by
the shear, uncompromising quality of the gunmaking. Gun no 4989
displays all the classic Woodward styling features including the
bolstered tumbler pivots, engraving style, unique safety slide,
breech side-clips and is built on a ‘flat back’ action, almost
unheard of by this time in Best London sidelocks. The original
highly figured stock has undergone several different grip styles
since its creation: built originally as a straight-hand, it was
converted to a very full pistol grip and we have taken it back to
a classic ‘Prince of Wales’ in keeping with Woodward tradition.
The original Whitworth steel barrels were replaced in 1954 by a
steel, dovetail lump Birmingham made set although the top rib
bears the Woodward name and address so we really have no idea who
did the work. We have had them reproofed for 2 ¾” nitro. Engraving
remains wonderfully crisp on locks, action and furniture so the
main focus of our restoration has been to get the gun into a sound
serviceable condition.
This gun’s fabulous condition coupled with our light-touch
restoration makes it a very useable, safe and highly collectable
gun for either game or clays.
WE
REGRET THAT THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR
GUN, PLEASE CONTACT US.
|

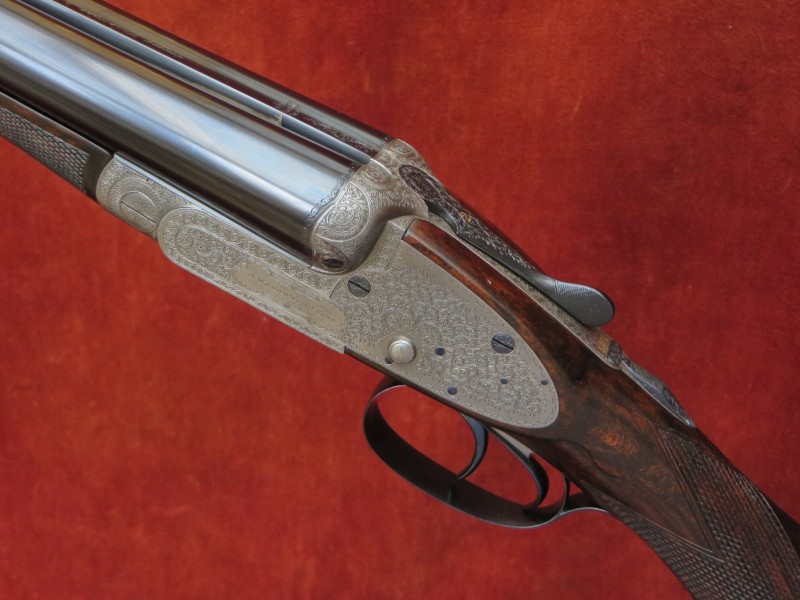

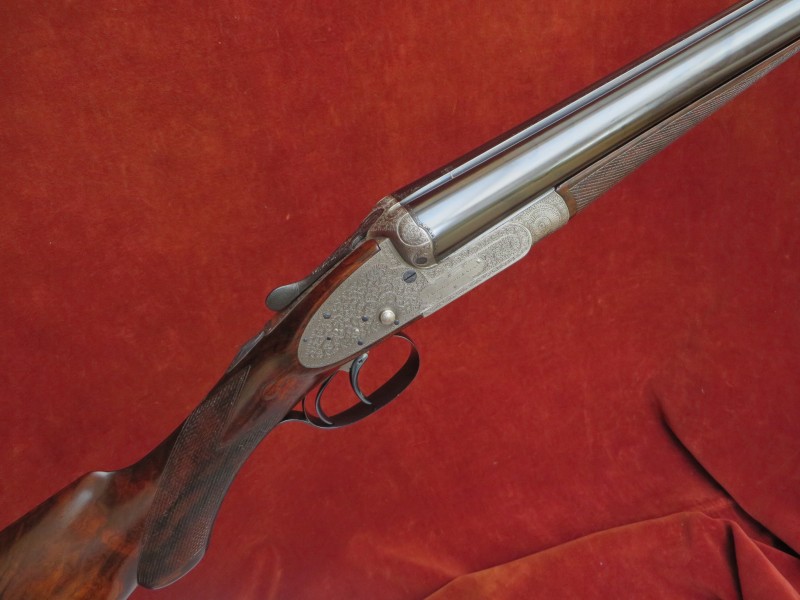

The
action
is of traditional sidelock design and features:

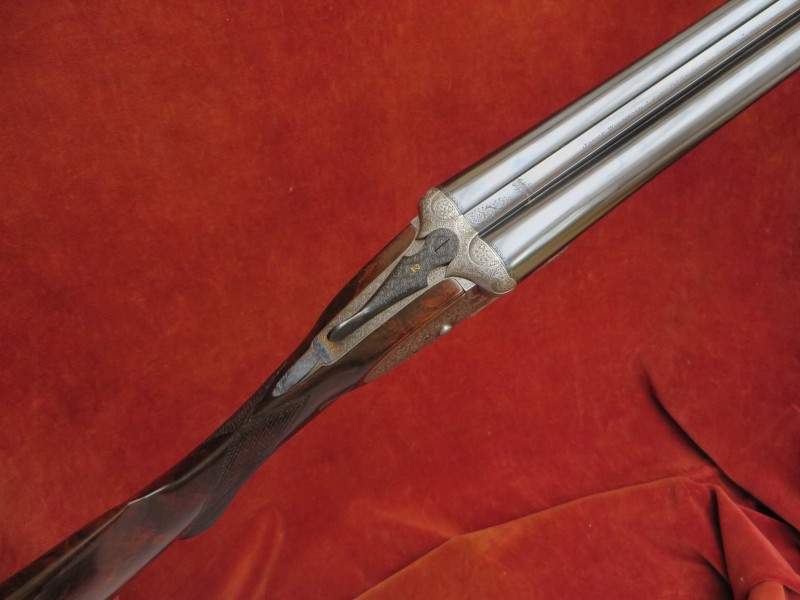

Toplever opening,
operating a double bite ‘Purdey Bolt’ via a ‘Scott Spindle’;
Double
triggers bolted by an automatic, top tang, Woodward-style safety slide;
Articulated front trigger;
Bar action, 9 pin sidelocks with
bolstered tumbler pivots;
Robertson style interceptor sears;
Gold lined cocking indicators;
Vented, disc-set strikers;
‘Perkes’ ejector box;
‘Anson’ forend catch;
Arcaded, clipped
fences.

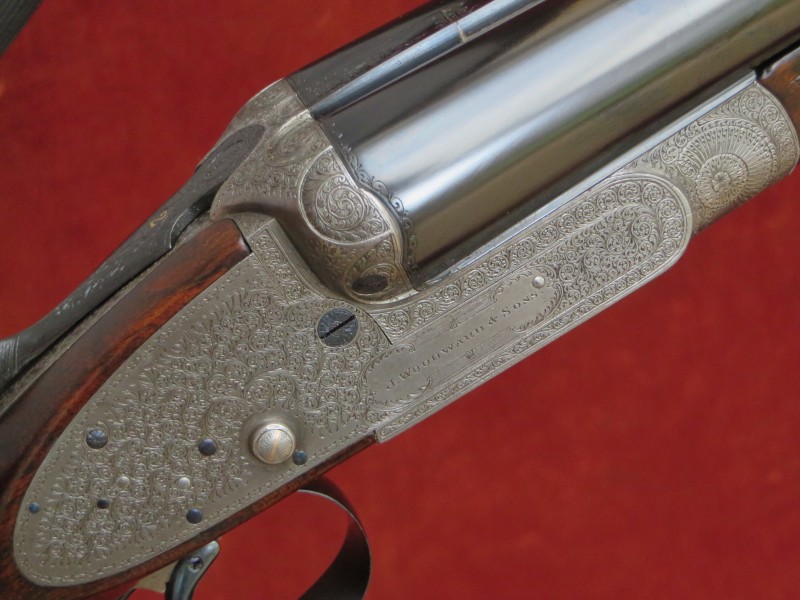

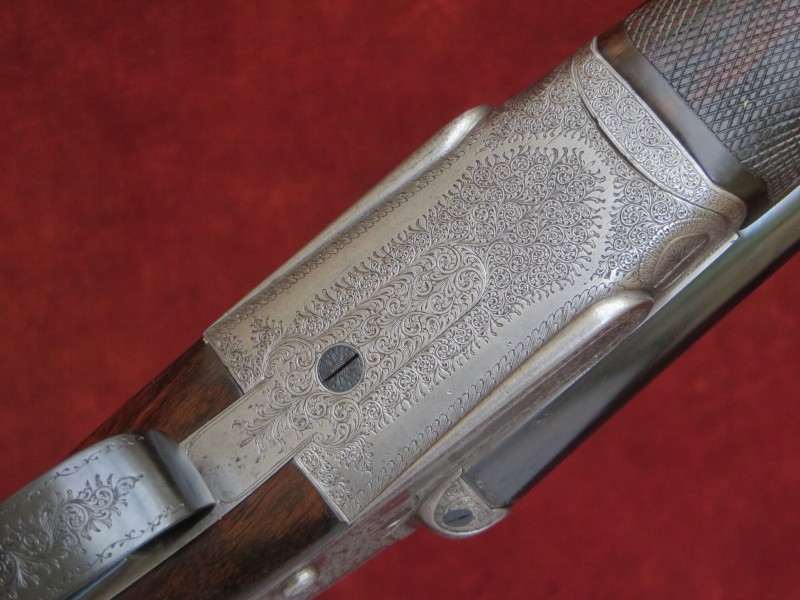

Engraving style Very best foliate scroll.
Breech face stamped ‘THE AUTOMATIC’ TRADE MARK’ and ‘JAMES WOODWARD &
SONS’. Gold inlaid ‘SAFE’. Toplever and forend tip gold inlaid ‘2’.
Gun weight 6lb 12oz
Trigger pulls measure approximately: Front trigger 3 ½
lbs, Rear trigger 4 ½ lbs.
The replacement steel barrels are
29" in length, chambered for 2 ¾" (70mm) cartridges
and are of dovetail lump construction with soft soldered ribs.
Top ribs are of
the smooth, concave game type.
Birmingham reproof for 2 ¾”
nitro powder cartridges in 2018.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9"
from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel
|
18.5mm (0.728")
|
0.729"
|
0.027"
|
0.002" (Skeet)
|
Left Barrel
|
18.5mm (0.728")
|
0.729"
|
0.028"
|
0.020" (Mod)
|

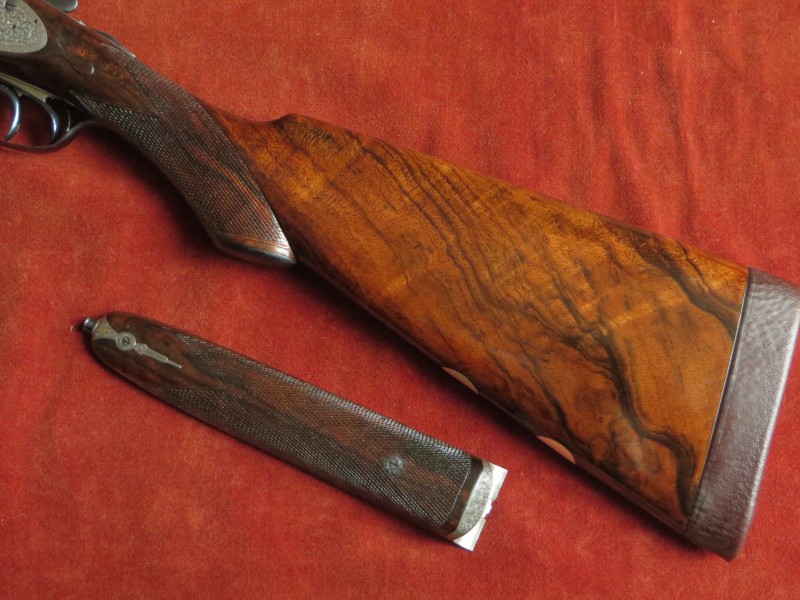

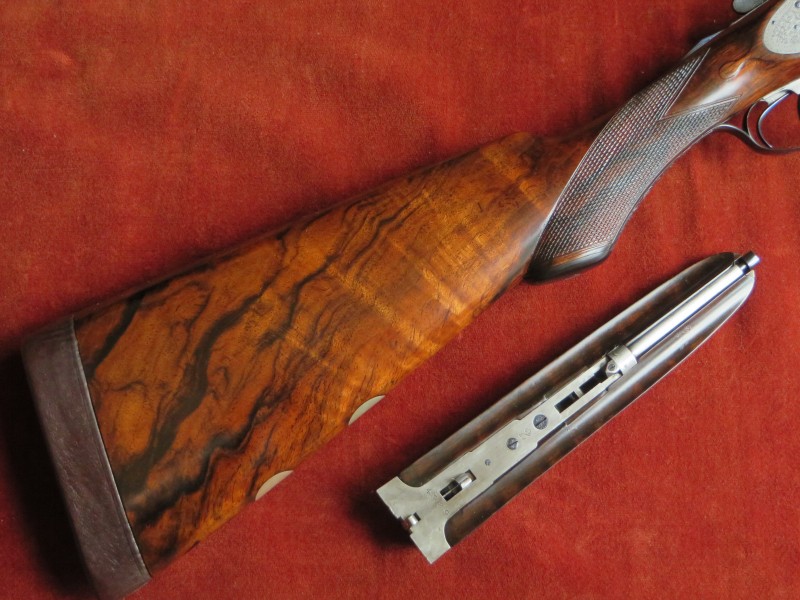

The originally Straight-hand Stock (since converted to PoW grip) and
Splinter Forend
are crafted from highly figured walnut and the stock has neutral cast,
features well defined drop points, horn grip cap secured by an
engraved screw, two white metal, engraved ovals and a leather covered
1” recoil pad. The forend has a finely engraved steel tip.
|

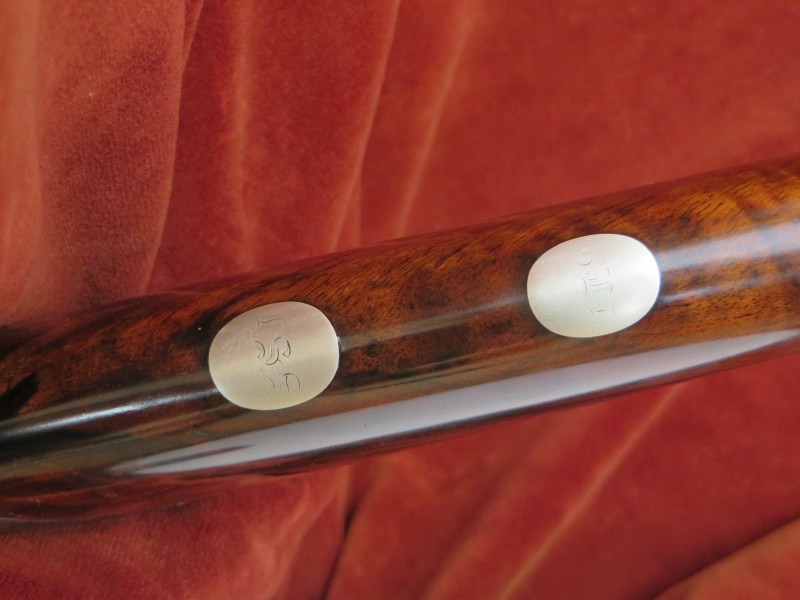

Highly Figured Walnut and
below, Two Engraved Ovals. |
|
|
The
approx. 18 lines per inch chequering
has been recut
to its original pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
15"
|
15"
|
15
1/8"
|
15
3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1
1/2"
|
1
5/8"
|
2
5/16"
|
Cast-off at Comb
|
Cast-off at Heel
|
Negligible
|
Negligible
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey
Bolt' patent no. 1104 of 1863;
'Scott Spindle' patent no. 2752
of 1865;
Perkes ejector patent
no. 12176 of 1887;
Anson forend fastener patent no. 3791 of 1872.
